Driver/Passenger Airbags and Emergency Tensioning Retractors

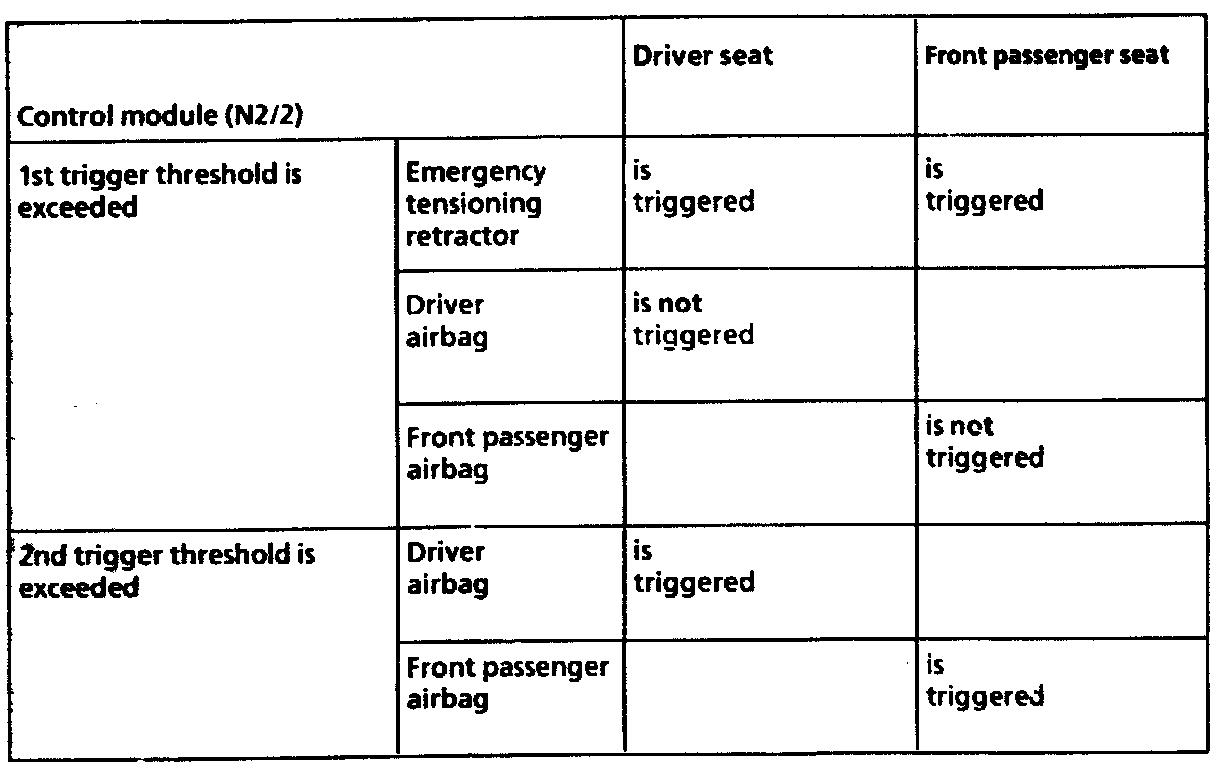

Triggering Logic For Driver/Front Passenger Airbags and Emergency Tensioning Retractors





In minor accidents where the protective effect of the seat belts is sufficient only the emergency tensioning retractors are triggered in parallel when the first trigger threshold is exceeded.

When the second trigger threshold is exceeded the driver airbag and front passenger airbag are triggered.
