Fuel Injector Line: Service and Repair

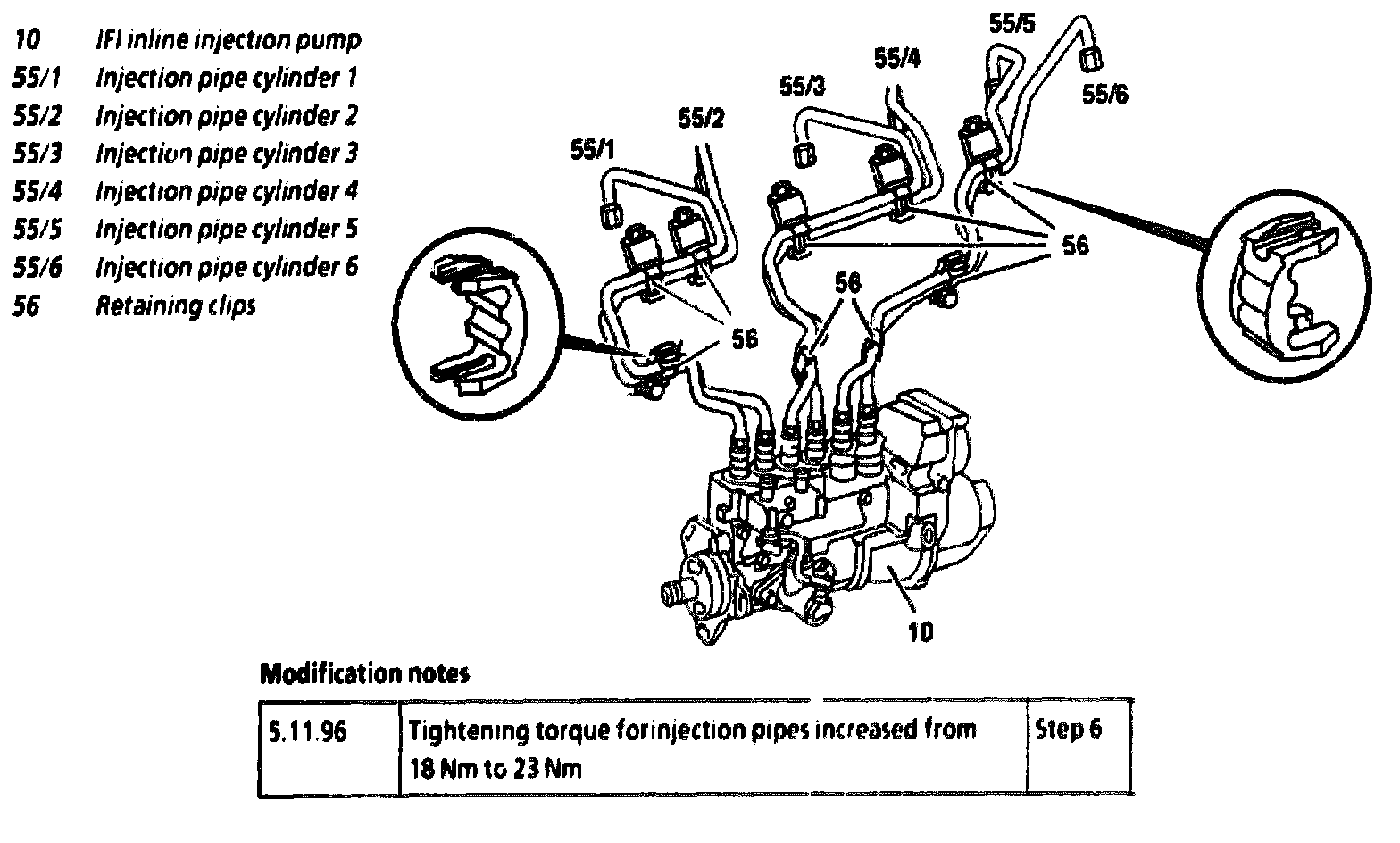

Shown on engine 606

The retaining clips (56) must be installed as shown in the illustration in order to avoid pipe fractures.

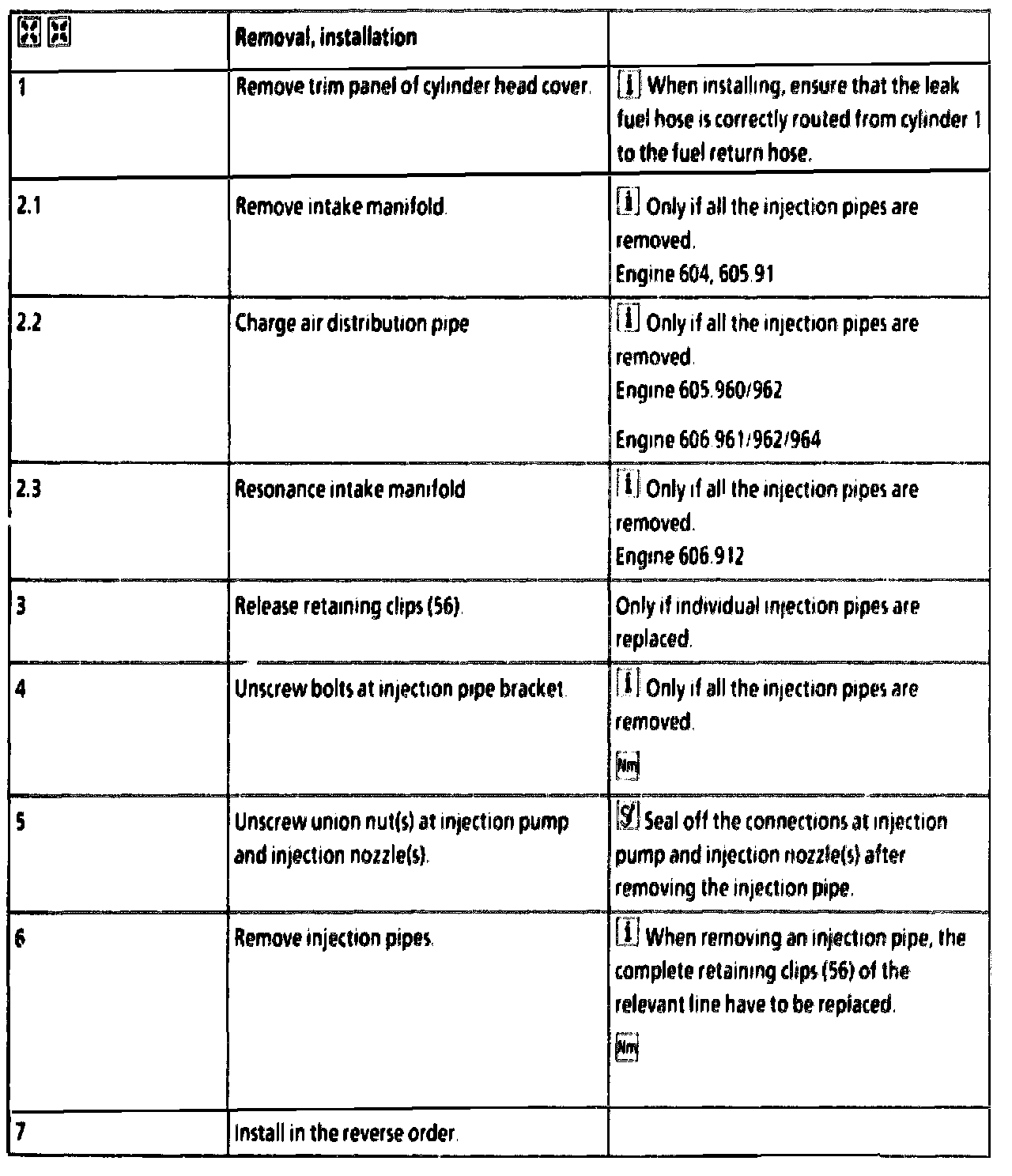

Removal, installation

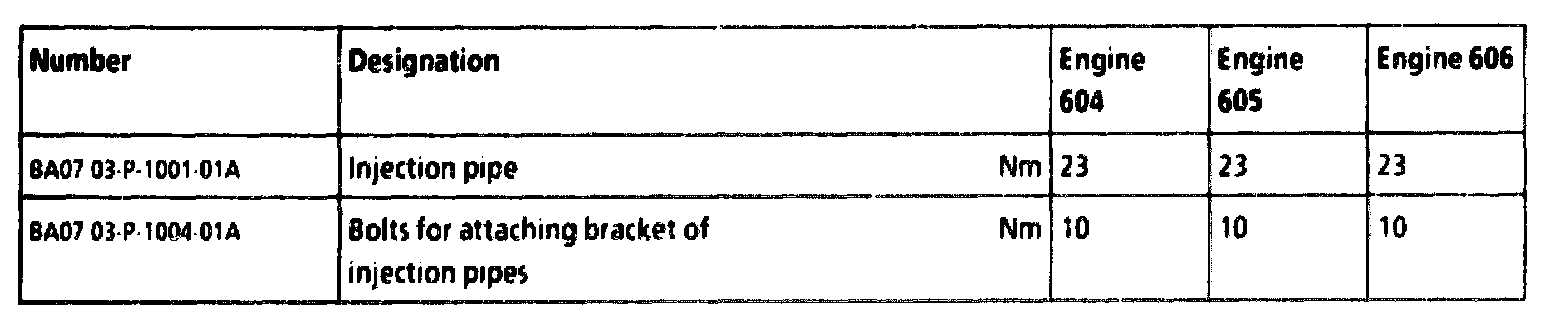

References (BA), Injection nozzles, injection valves, lines






References, Special tools
