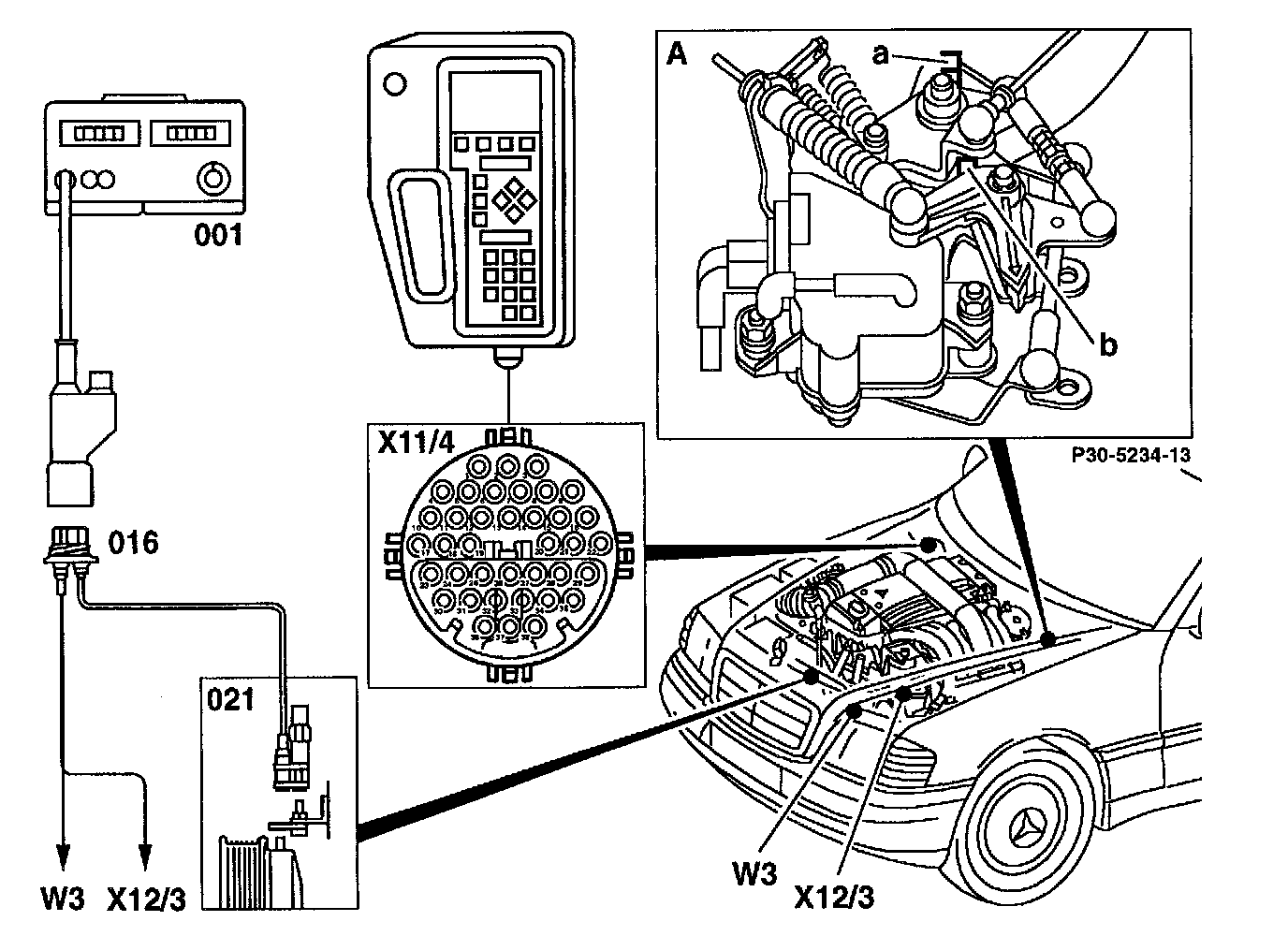

Connection Diagram-Engine 606.912 IFI





Figure 1
001 Digital tester
016 Diagnostic socket
021 TDC impulse sensor
087 Hand-Held Tester (HHT)

W3 Ground (left front wheelhousing)
X11/4 Data link connector (DTC readout) on Model 210 in left front fuse box
X12/3 Terminal block (circuit 30)

A Throttle control unit

a Closed throttle position stop
b Wide open throttle stop

Test Steps
1. Test equipment
Connect/disconnect according to connection diagram.

2.0 Throttle control linkage
Check for free movement and condition.

2.1 CTP (idle) stop (a)
Check.

3. Run engine to operating temperature
>60 °C

4. Shift selector lever position
HHT display: P/N

5. Engine speed (CTP)
Check, See Test and Adjustment Data. Test and Adjustment Data [Specifications]

6. Engine running at CTP
Check with selector lever in position "D" (parking and service brake applied) and consumers turned on.
