CAN Bus - Engine Compartment PE00.19-U-2200D (Up To 5/31/98)
CAN Bus - Engine Compartment PE00.19-U-2200D (Up To 5/31/98)

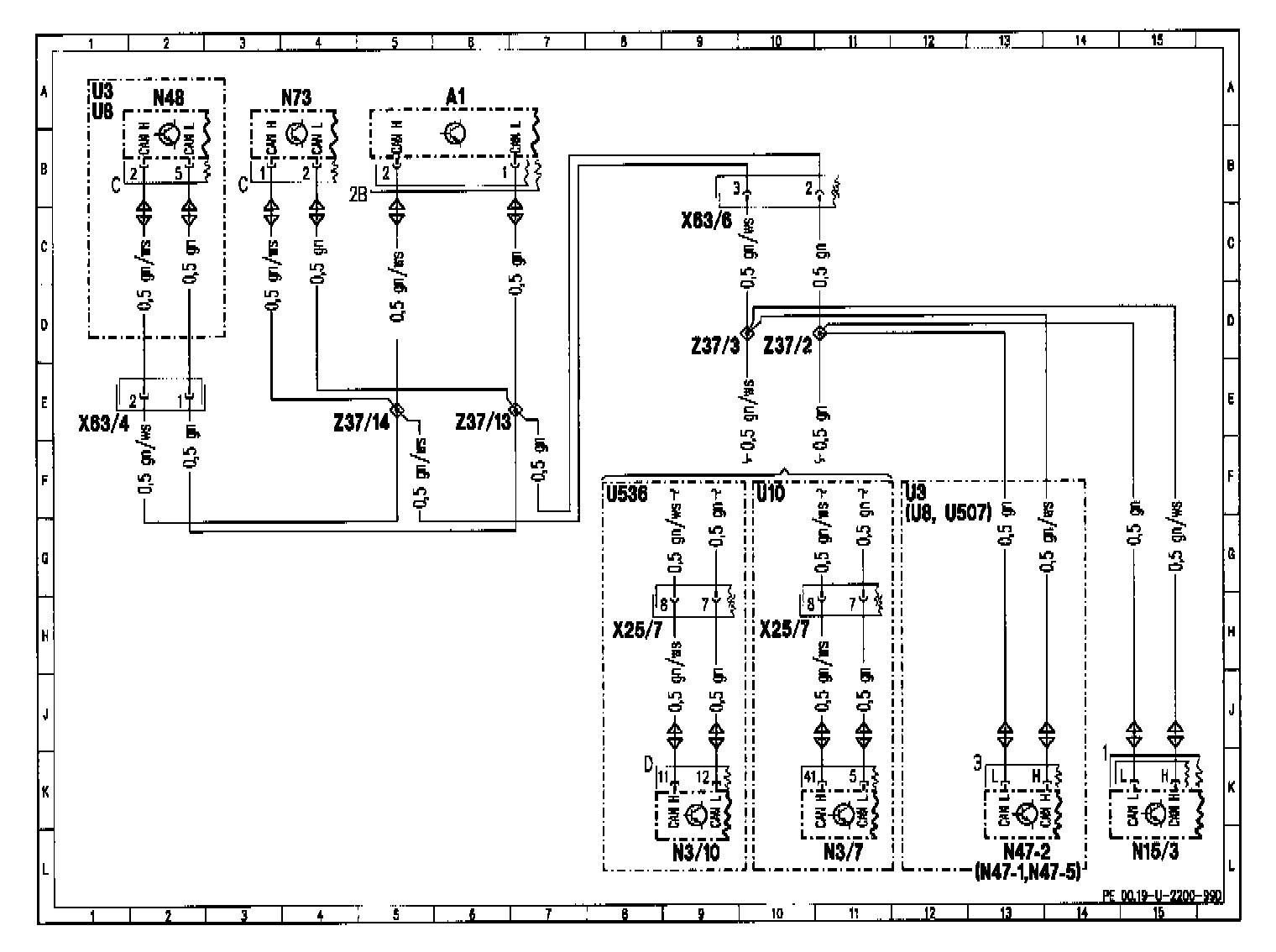

Wiring Diagram:
Component Grid Location
A1 - X63/6:

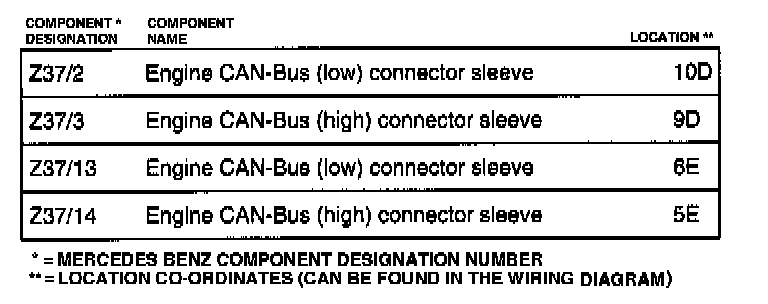

Z37/2 - Z37/14:
