Removal and Replacement

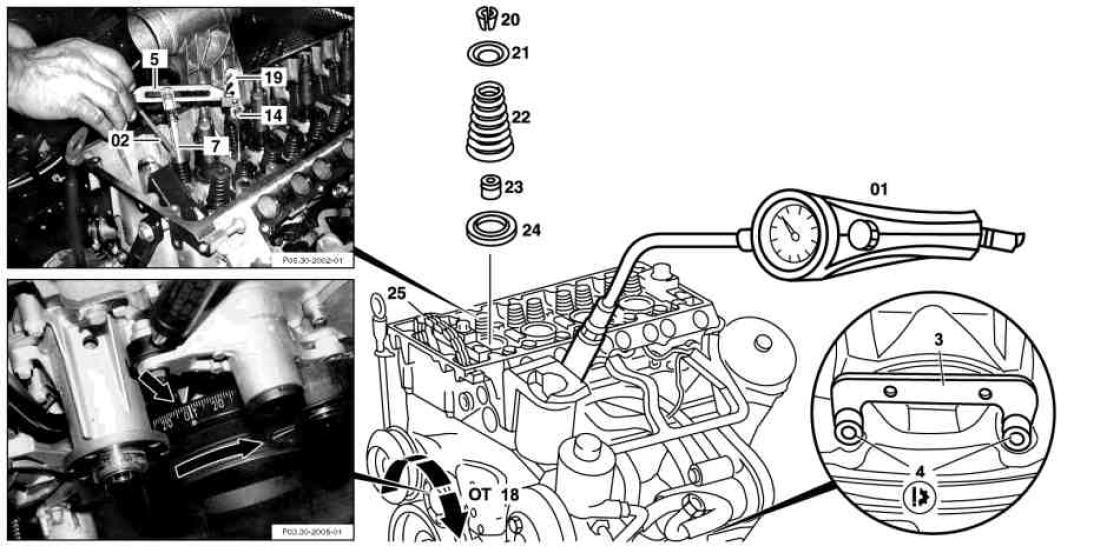

AR05.30-P-3500HA Removing, Installing Valve Springs and/or Valve Stem Seals
-ENGINE 605, 606.910 in MODEL 124
-ENGINE 606.961 in MODEL 140
-ENGINE 604, 605 in MODEL 202
-ENGINE 604, 605, 606.912 /962 in MODEL 210
-ENGINE 606.964 in MODEL 463











604 589 00 63 00
Connector





602 589 00 63 00
Connector





602 589 00 25 00
Adapter





111 589 25 61 00
Valve assembly tools case





116 589 06 63 00
Magnetic finger





210 589 00 40 00
Magnetic pin





606 589 00 37 00
Pliers





604 589 00 43 00
Drift
