B2.4 Interior Compartment (Left)
B2.4 Interior Compartment (Left)

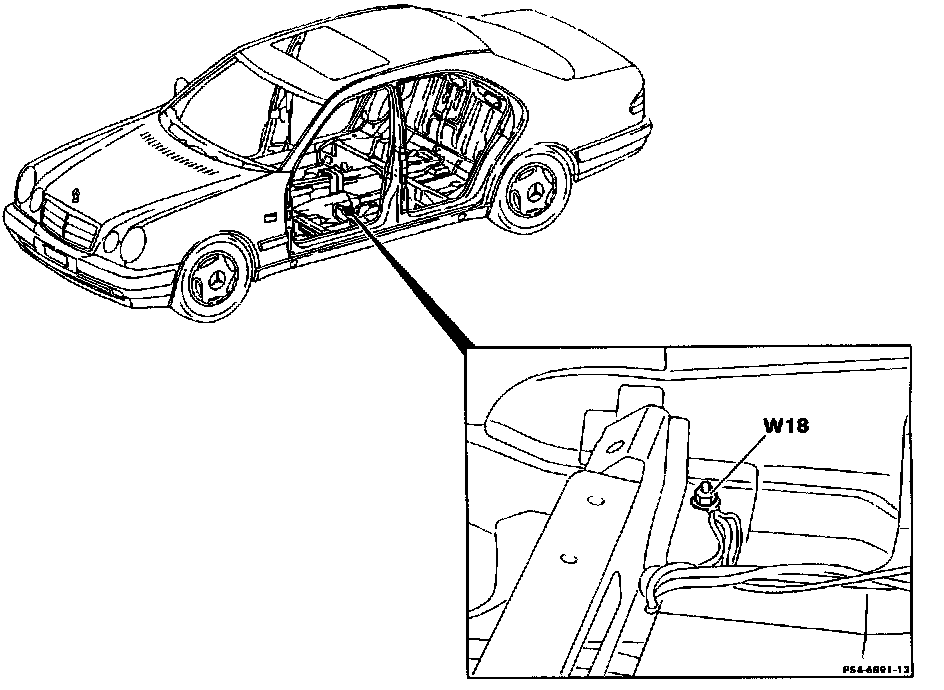

Ground Connection Locations

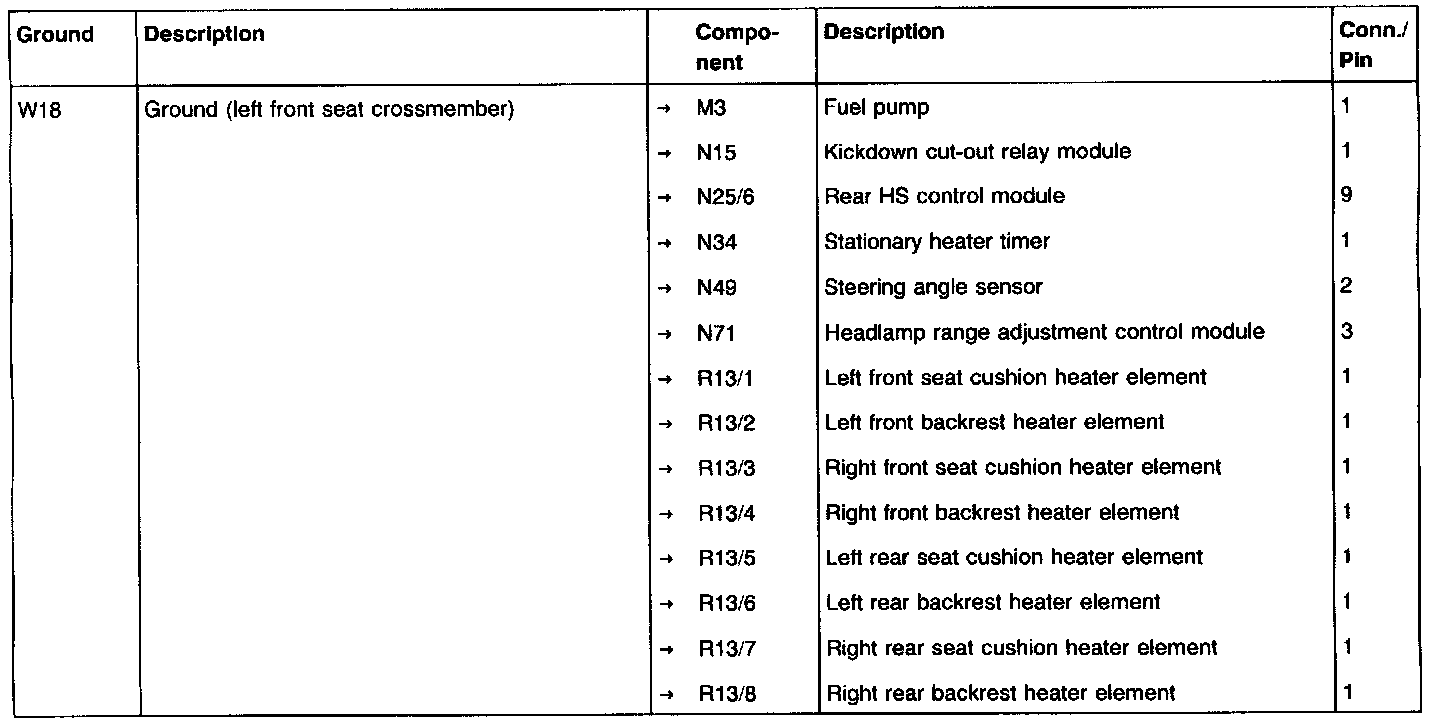

Ground Description/Connector Pin ID
W18:
W18 (continued):
