E 300TD (210.025) L6-3.0L DSL Turbo (606.962)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
System Diagram
>>

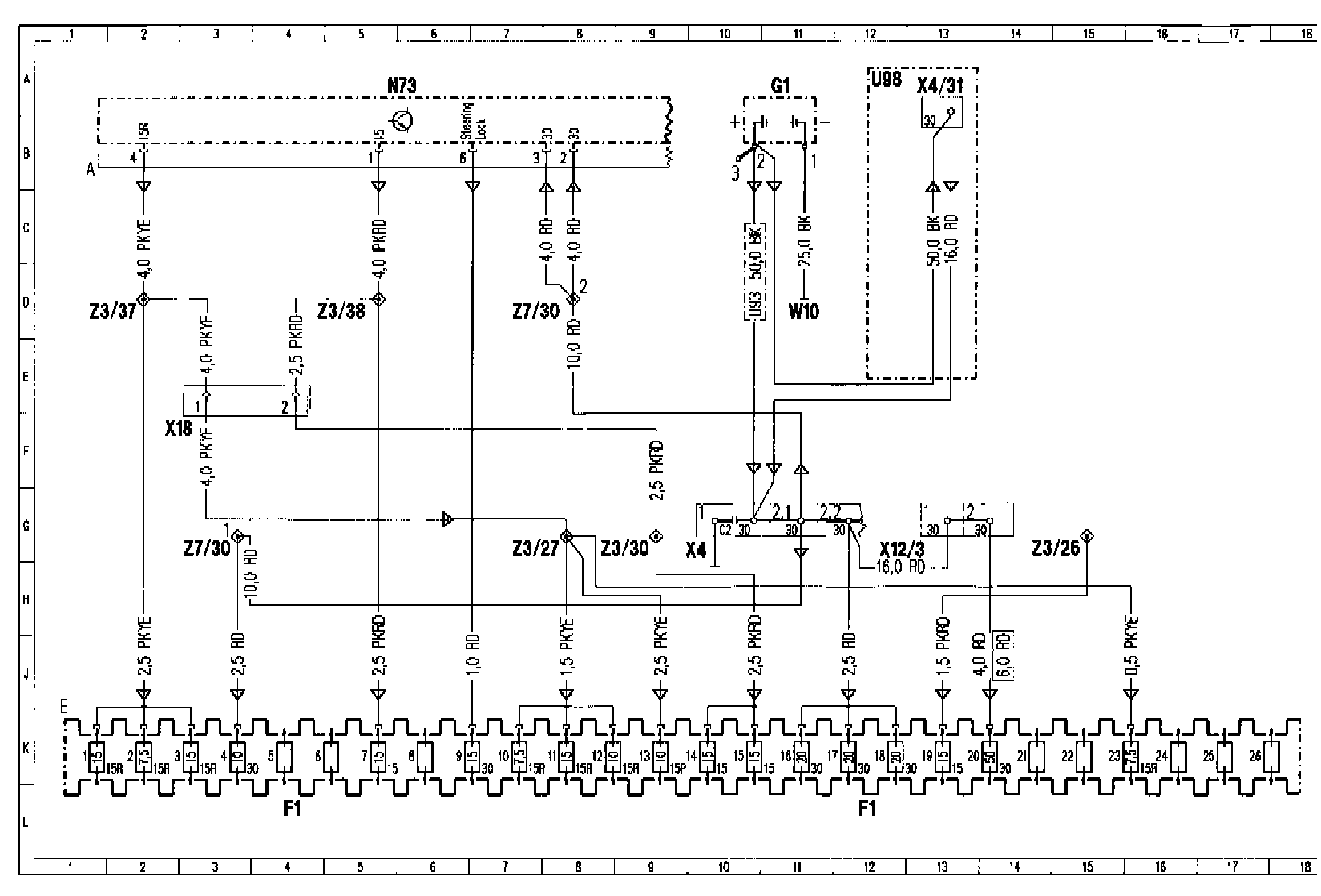

Fuse and Relay Box (F1) PE54.15-U-2000C (Up To 05/31/98)
Fuse and Relay Box (F1) PE54.15-U-2000C (Up To 05/31/98)
�z�(Wiring Diagram:

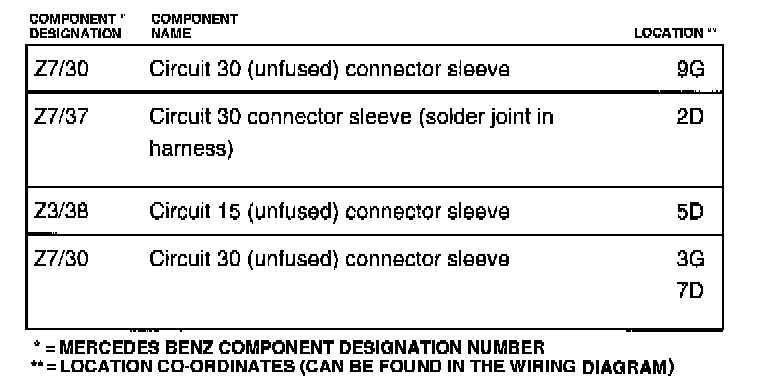

Component Grid Location

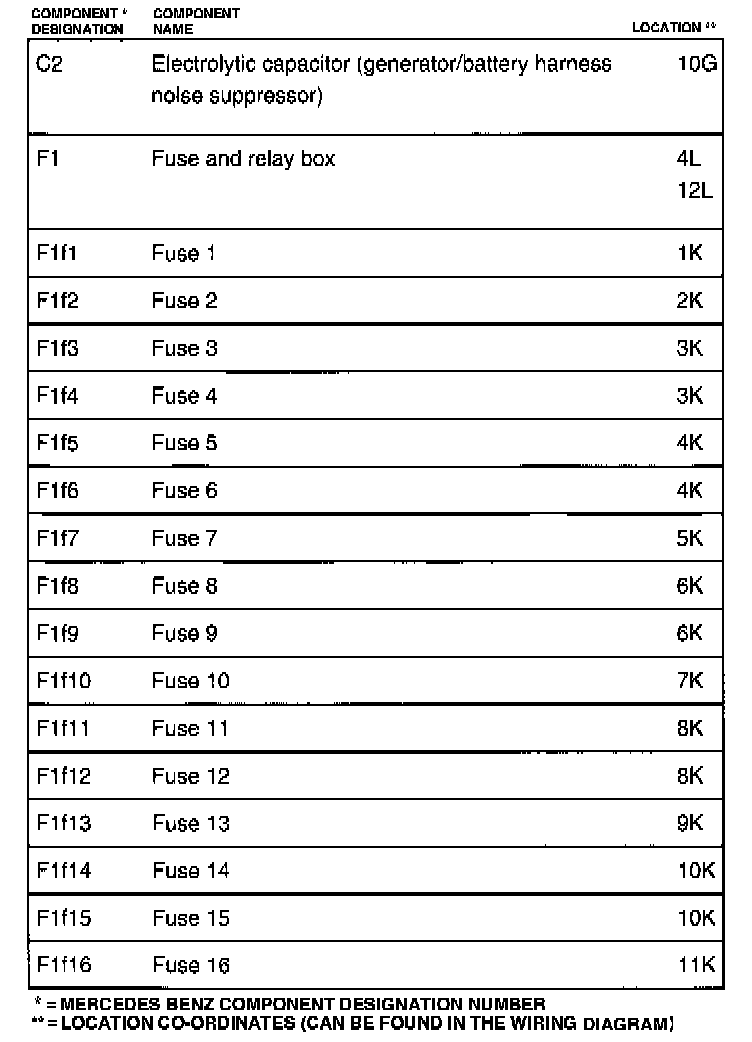

C2 - F1f16:

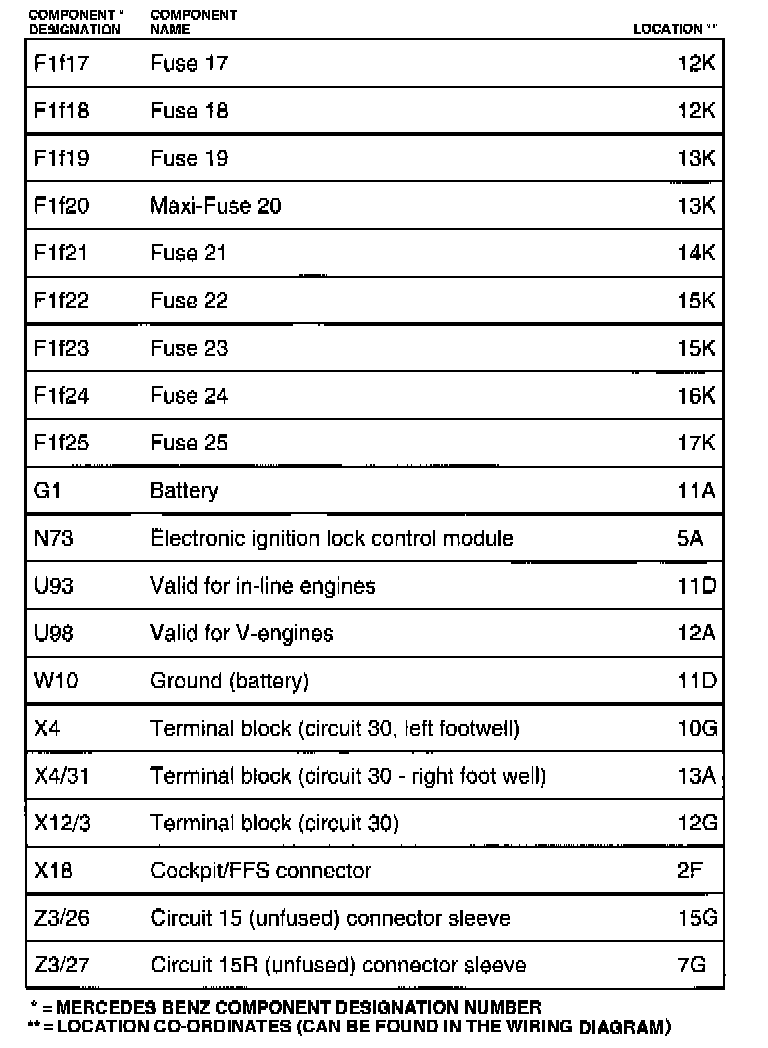

F1f17 - Z3/27:
Z7/30 - Z7/30:
