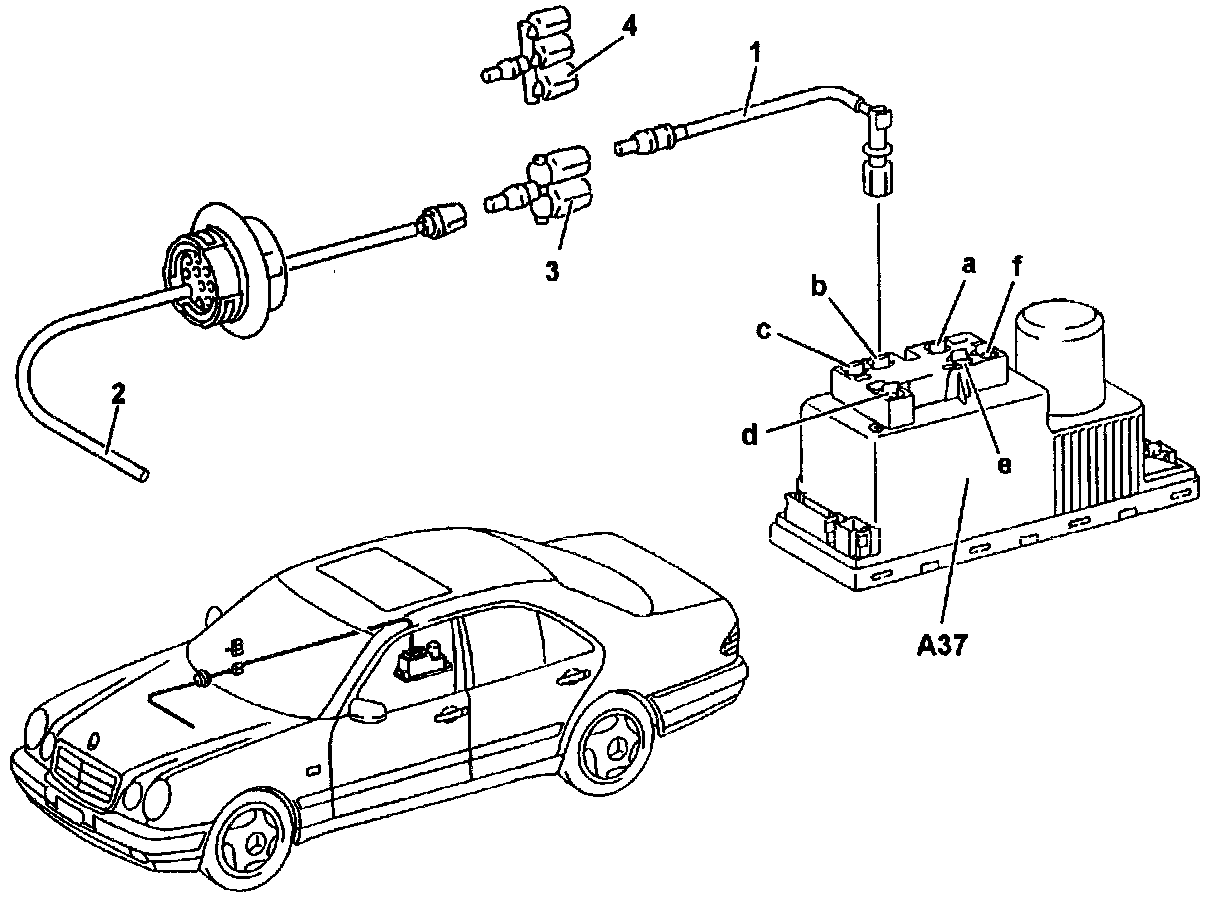

Component Locations - Section 31

Sedan Shown





A37 PSE control module, combined functions
a Pneumatic connection, passenger/rear doors
b Pneumatic connection, driver-side door
c Pneumatic connection, fuel tank tiller flap
d Pneumatic connection, RTR/RHR
e Pneumatic connection, OSB
f Pneumatic connection, MVA
1 Pneumatic line, MVA, frame floor
2 Pneumatic line, MVA, engine compartment
3 2-way distributor
4 3-way distributor
