E 300TD (210.025) L6-3.0L DSL Turbo (606.962)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Radio, Stereo, and Compact Disc
>>
Compact Disc Player (CD)
>>
CD Changer
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

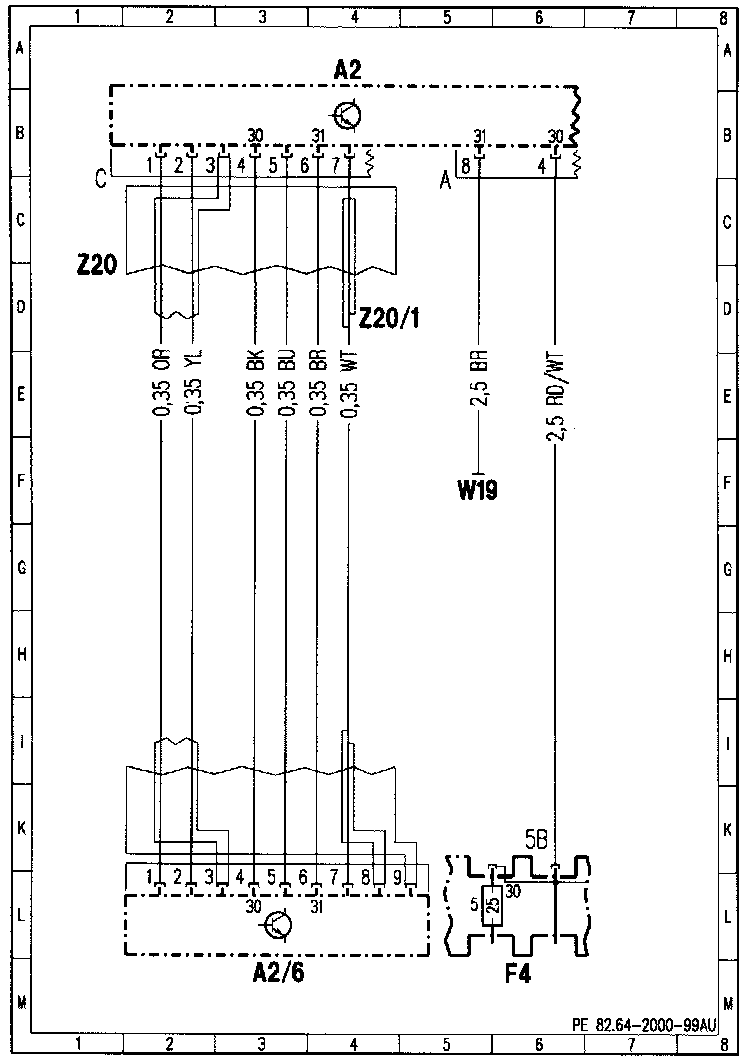

Wiring Diagram:

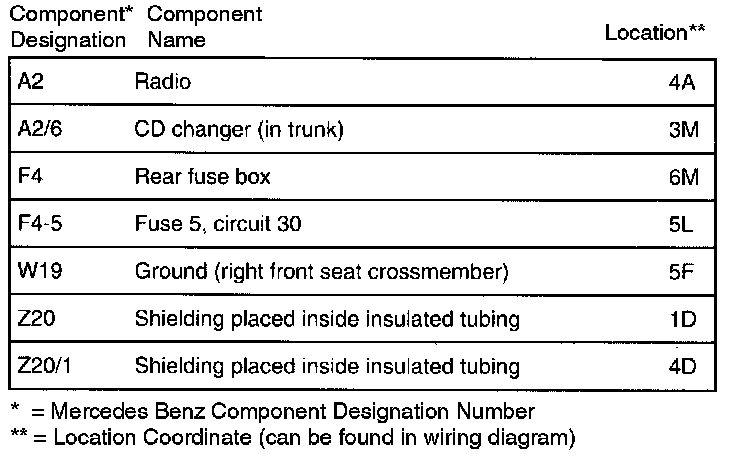

Component Grid Location:
