Home >> Mercedes Benz >> 1998 >> E 300TD (210.025) L6-3.0L DSL Turbo (606.962) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Description and Operation >> Sensors Status Indicator Switch >> Location

Location

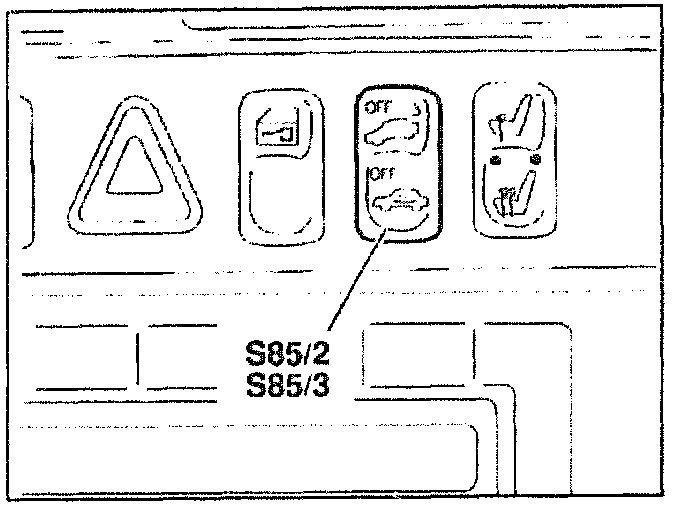

Component Identification:






The ATA interior motion sensor/anti-towing sensor/status indicator switch (S85/2) is located in the upper control panel in the center console.
