Headlamp Washer Reservoir: Service and Repair

Removing And Installing Headlamp Cleaning System Washing Water Reservoir

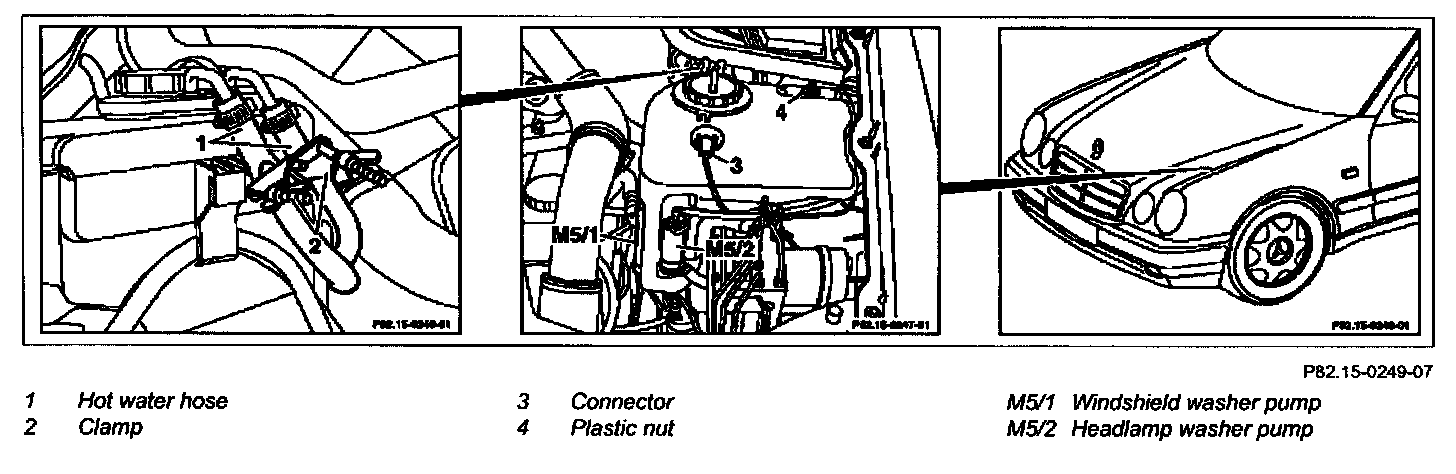

1 Move engine hood to upright position
2 Disconnect connector (3) on washing water indicator
3 Attach clamp (2) to hot water hoses (1) for washing water heating spiral

See "Special Tools" given below.

4 Remove hot water hoses (1) and unclip washing water reservoir
5 Unscrew plastic nuts (4) and remove washing water reservoir from mount
6 Remove windshield washer pump (M5/1) and unclip feed lines from washing water reservoir

NOTE: Plug opening in washing water reservoir with suitable plug

7 Remove headlamp washer pump (M5/2)

NOTE: Plug opening in washing water reservoir with suitable plug

8 Remove washing water reservoir upward
9 Reinstall in opposite order

Special Tools

Headlamp Washer Reservoir: Service and Repair

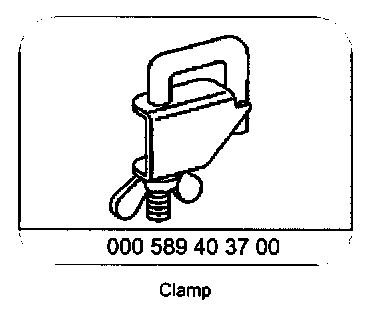

Clamp, P/N # 000 589 40 37 00:
