AR67.10-P-1200K Remove/Install Windshield Molding

AR67.10-P-1200K Remove/Install Windshield Molding

Illustrated On Model 208.3:

Removal
1 Remove paneling on outside of A-pillar

NOTE: Remove paneling on outside of A-pillar only on one side

2 Lift molding (1) at side with plastic wedge (arrow) and pull out of clip-type fasteners (2, 5 each)

See "Special Tools" given below.

Installation
3 Install molding (1) on clip-type fasteners (2, 5 each), align at side and press down
4 Install paneling on outside of A-pillar


Special Tools

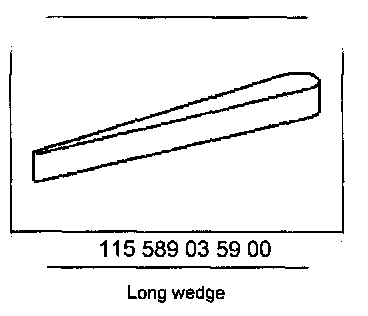

Long Wedge, P/N # 115 589 03 59 00:
