Overall Installation Survey For Automatic Transmission

Installation survey for automatic transmission

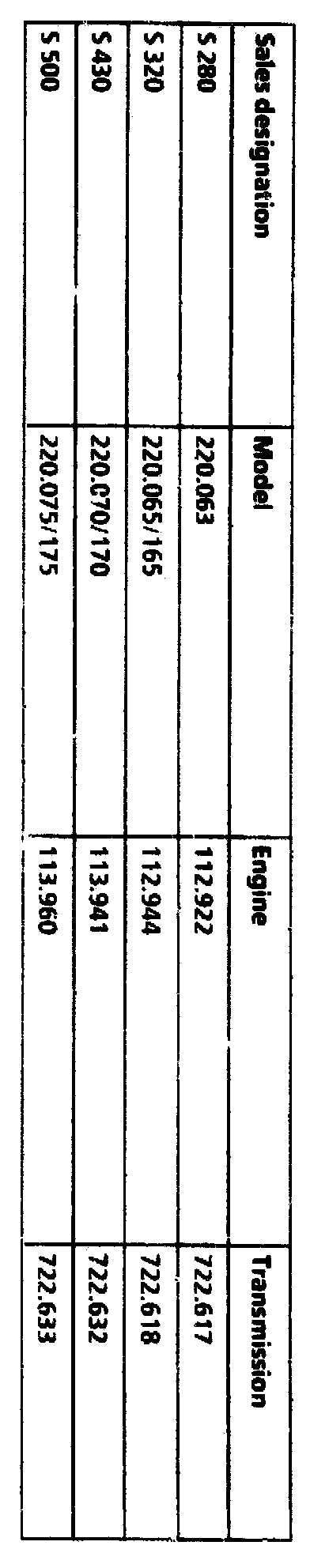

Model 129:

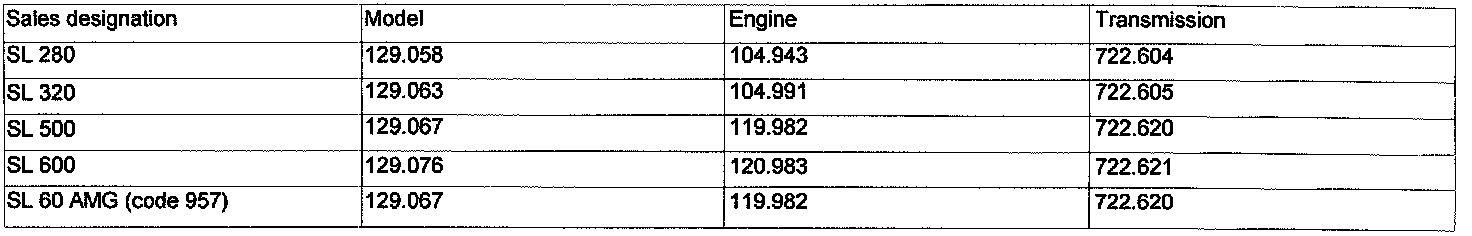

Model 129

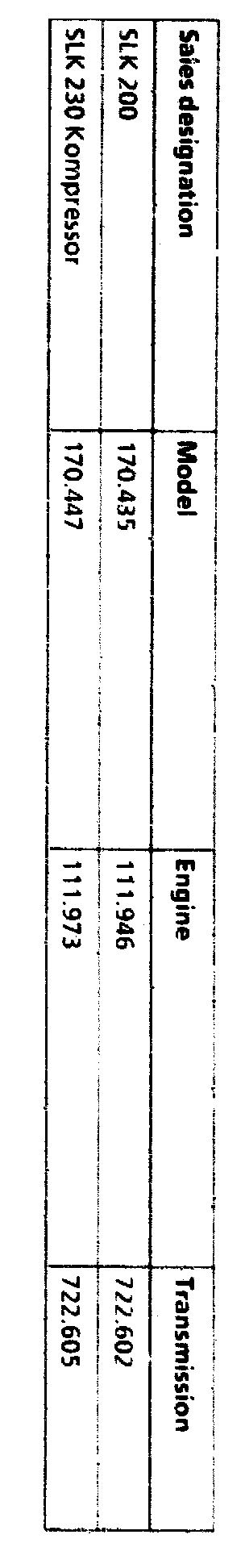

Model 170





Model 140





Model 202





Model 208

Model 210:




Model 215:

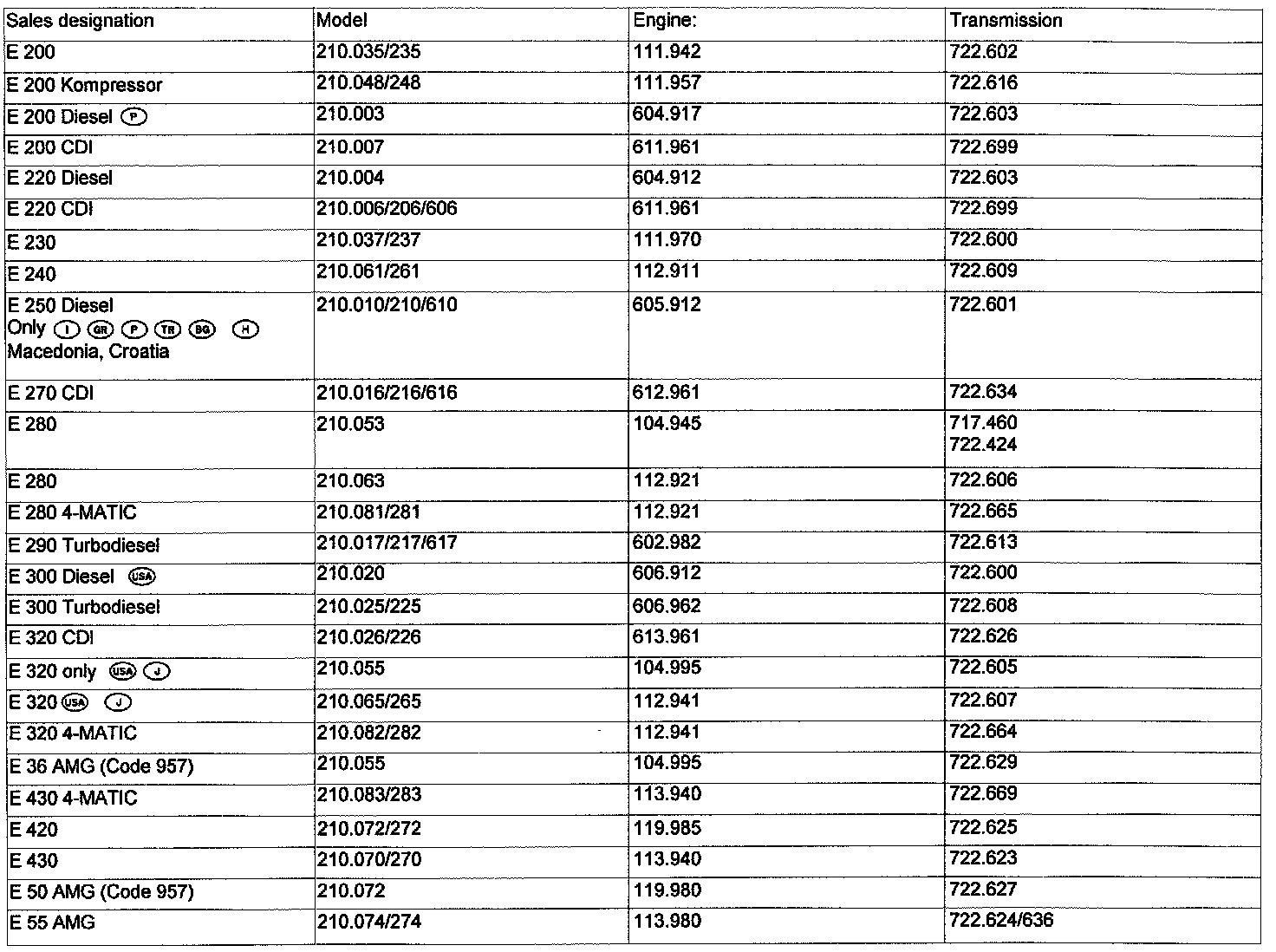

Model 210





Model 463





Model 163





Model 220
