Steering Column Lock: Service and Repair

Removing And Installing Electronic Steering Lock
















CAUTION: Installation: Replace self-locking nuts and bolts

1 Remove steering wheel
2 Remove instrument cluster
3 Remove cover below instrument panel

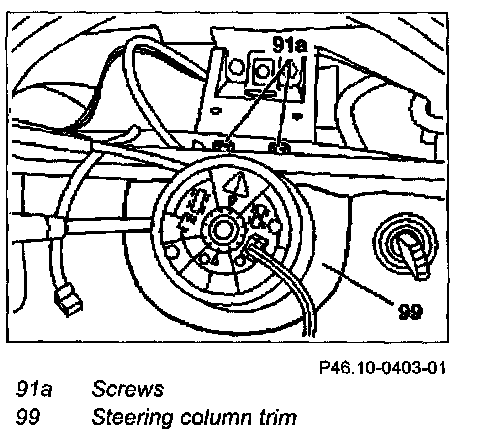

4 Unscrew steering column trim (99)

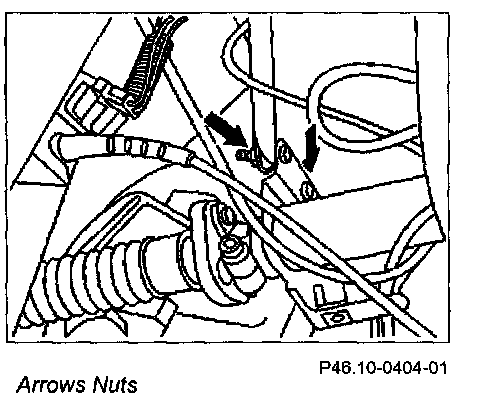

5 Detach jacket tube fixing

NOTE: Installation: First of all fit on all nuts and bolts.

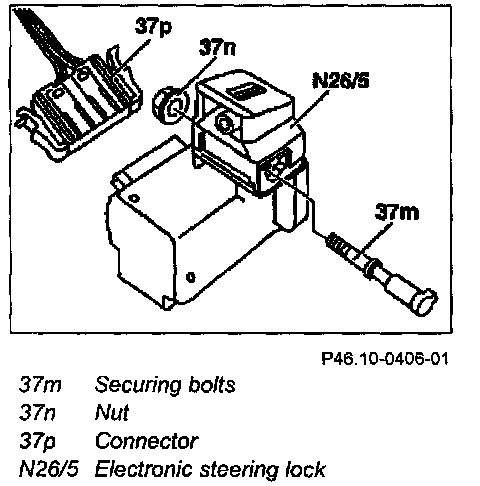

6 Unscrew nut (37n) of securing bolts (37m)
7 Turn electronic ignition key into position "1" and lift securing bolt (37m) up and off

NOTE: The securing bolt can only be taken off if the electronic steering lock is unlocked.

8 Separate plug connection (37p)
9 Take electronic steering lock (N36/5) out of steering column
10 Install in the reverse order
