AR91.40-P-0681K Remove/Install Rear Seat Belts
AR91.40-P-0681K Remove/Install Rear Seat Belts
AR91.40-P-0681K Removing And Installing Rear
Seat Belts

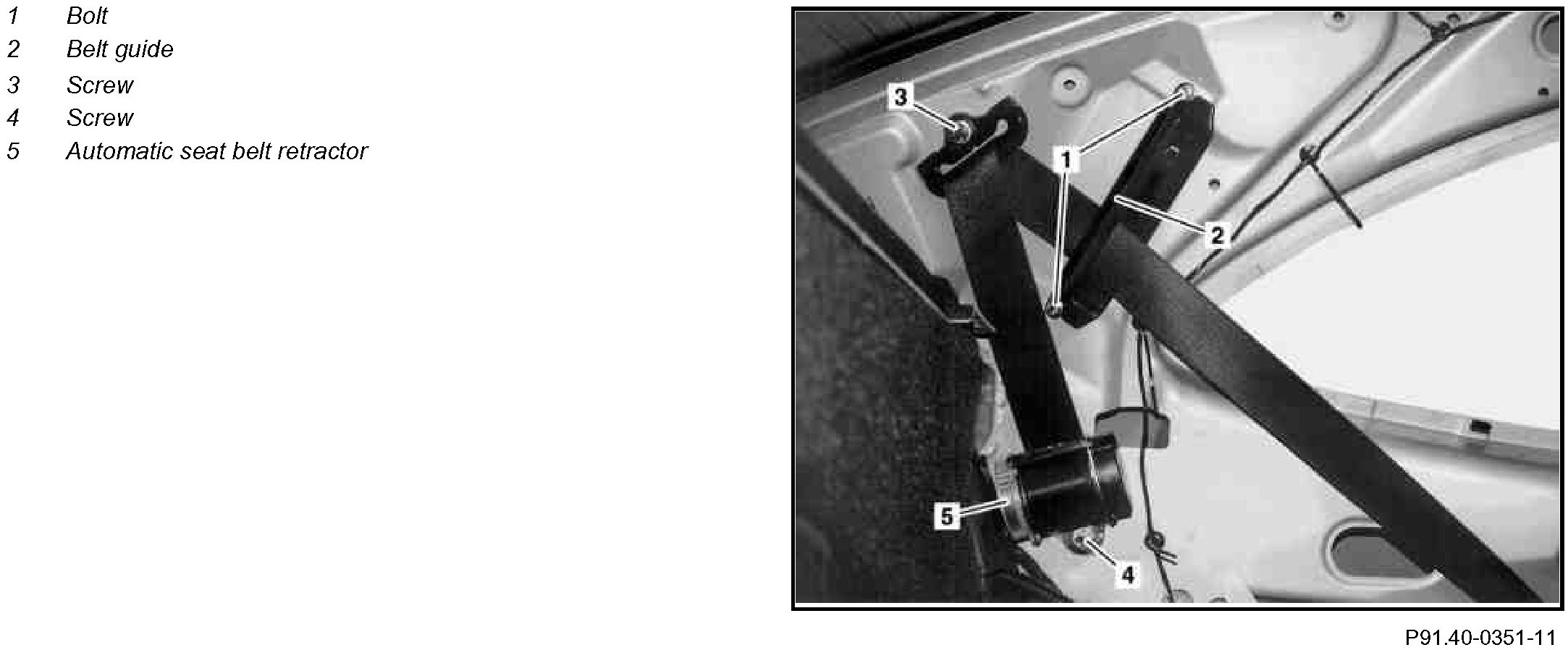

Component Identification:

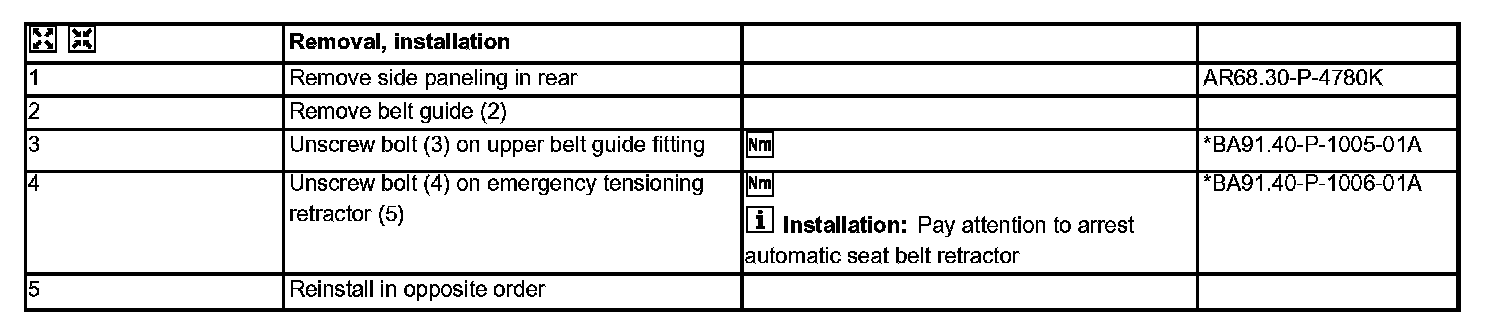

Steps 1 - 5:

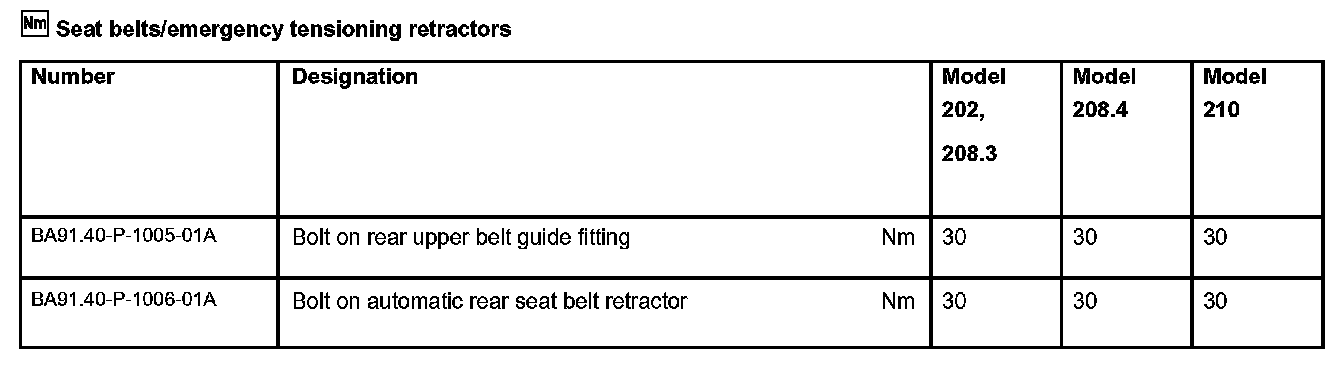

Seat Belts/Emergency Tensioning Retractors:
