AR91.60-P-0680K Remove/Install Passenger Airbag Unit
AR91.60-P-0680K Remove/Install Passenger Airbag Unit
AR91.60-P-0680K Removing And Installing Passenger Airbag Unit

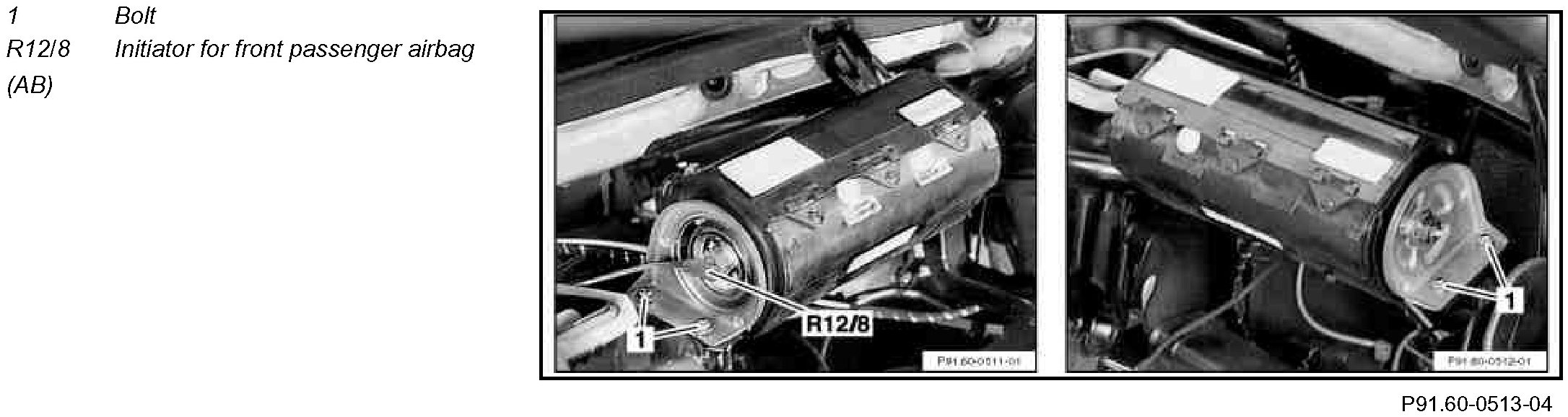

Component Identification:

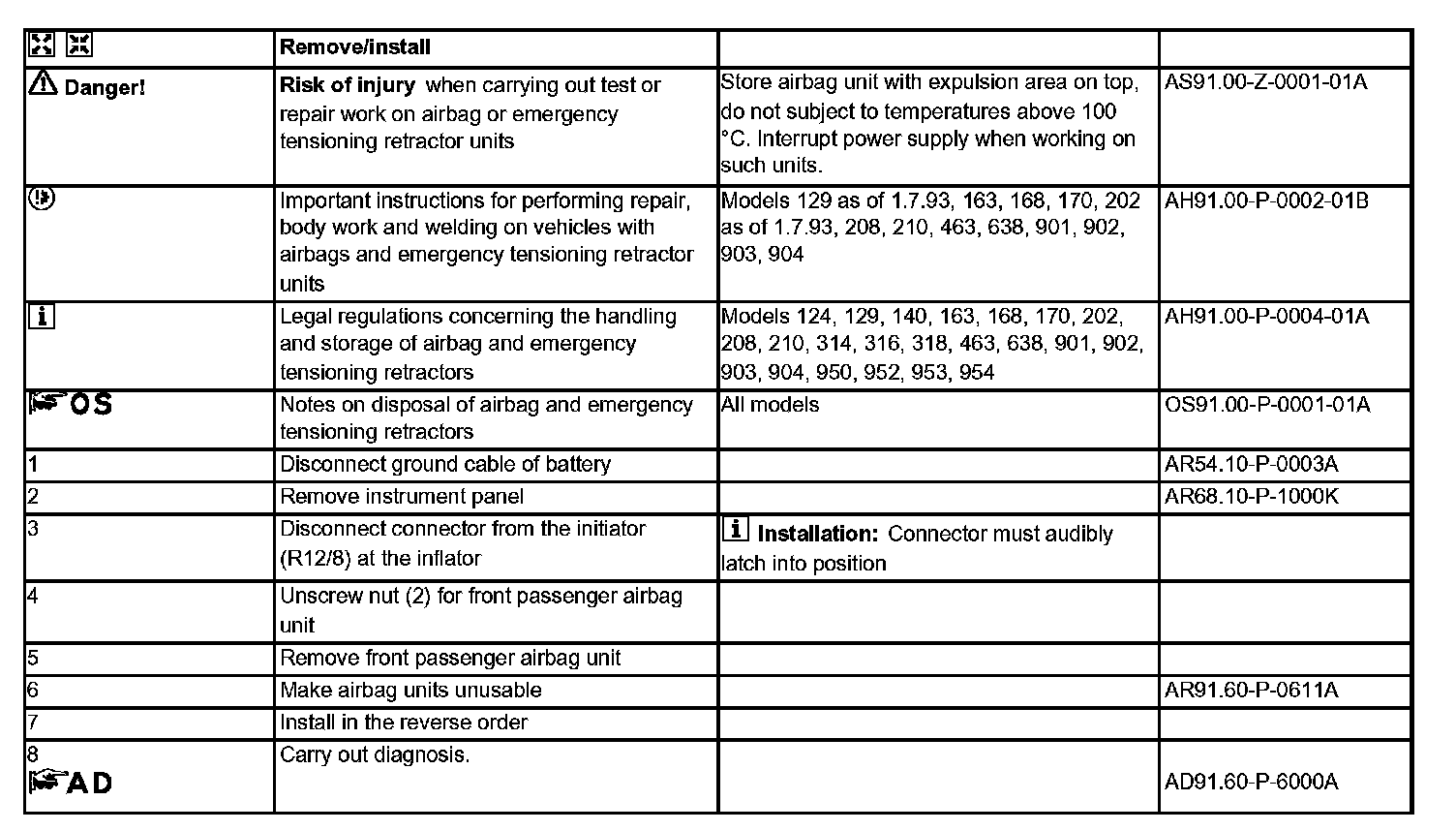

Steps 1 - 8:
