Parking Assist Control Module: Locations

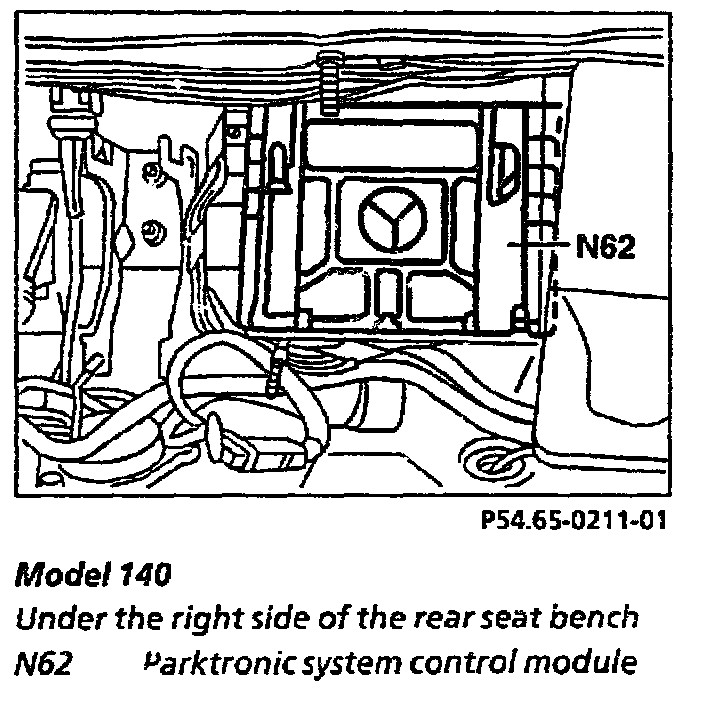

140:

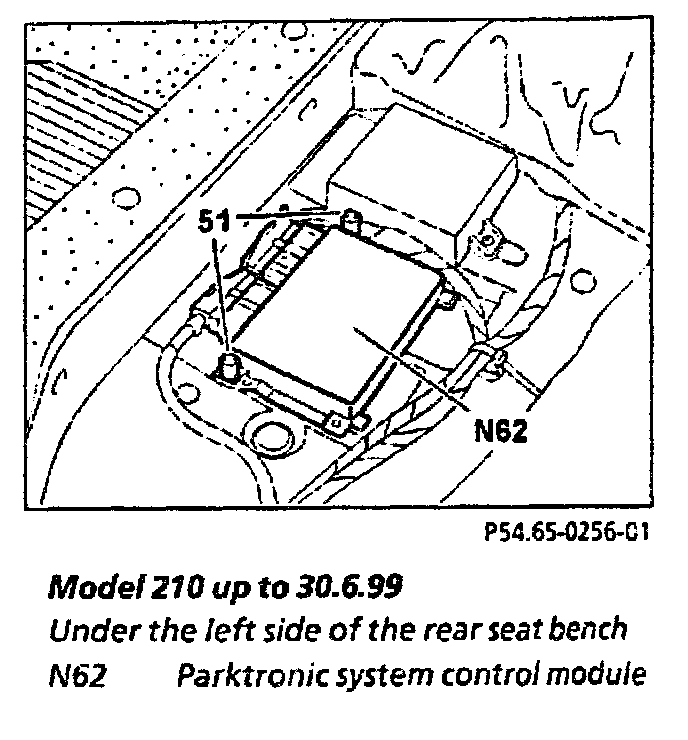

210, Up To June 30, 1999:

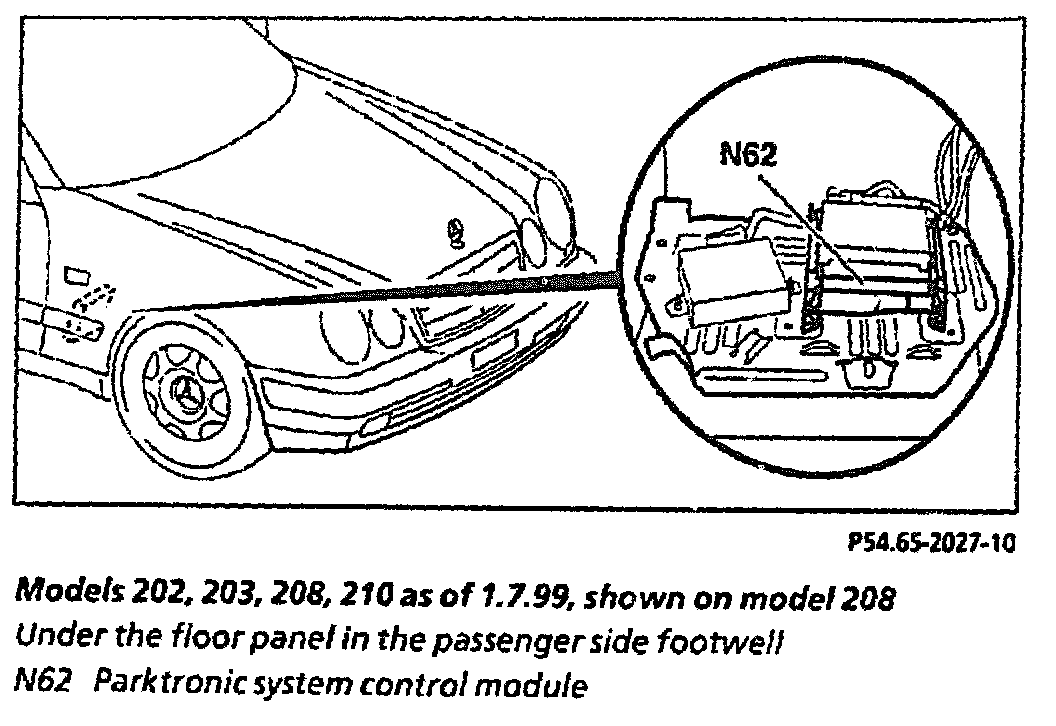

202, 203, 208, 210 As Of Jul 1, 1999:

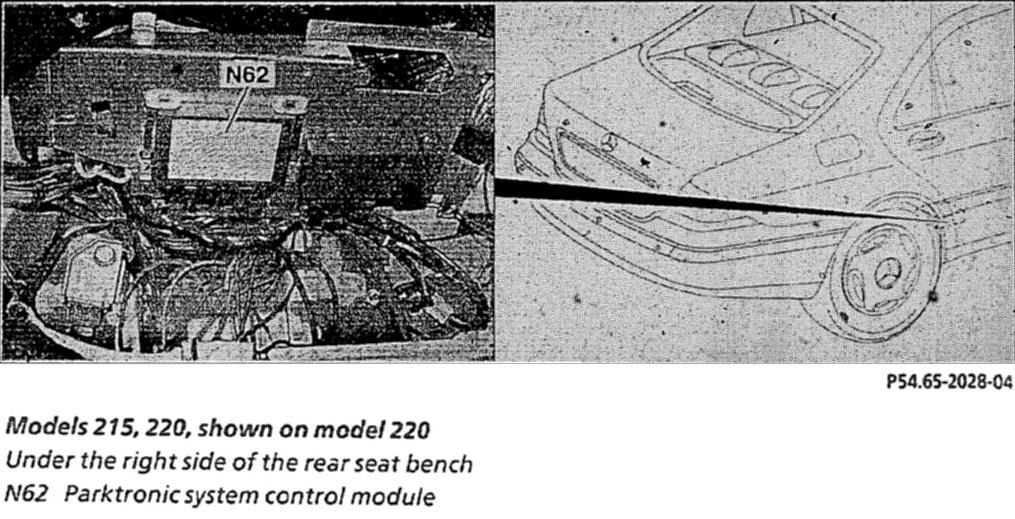

215, 220:
