Engine Compartment (Right)

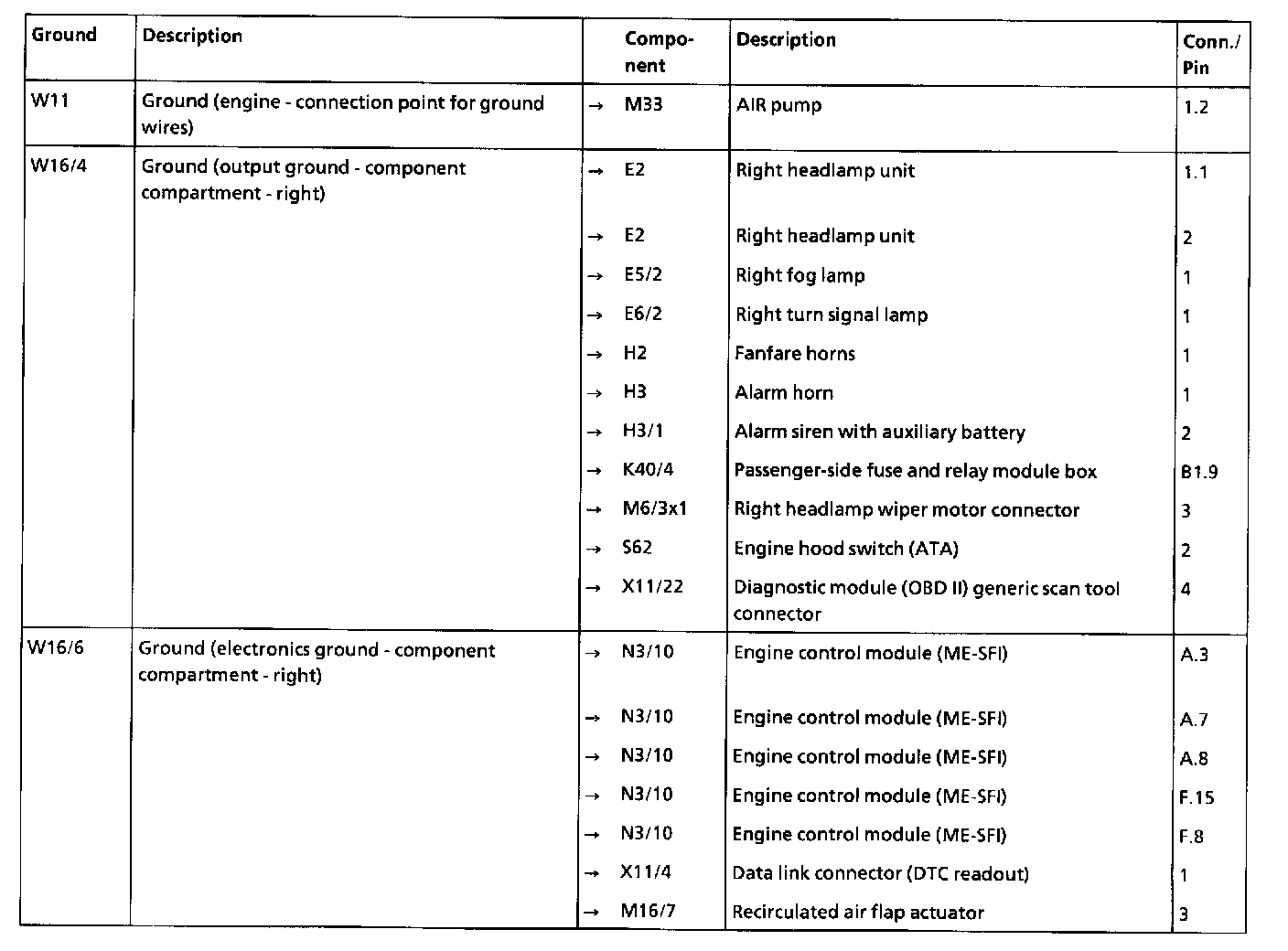

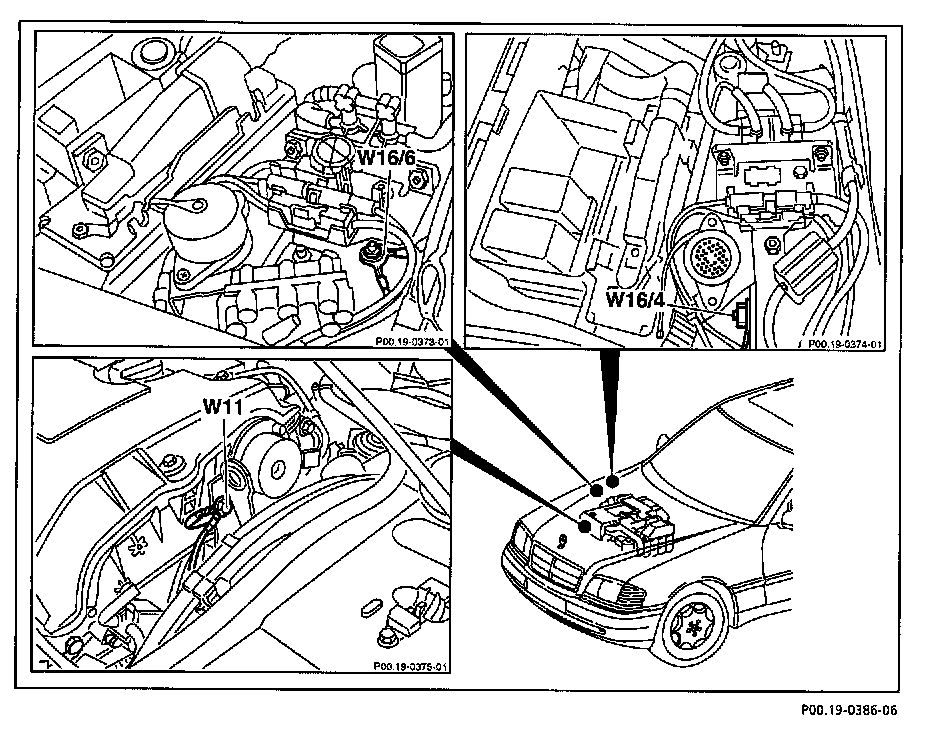

Engine Compartment (Right), Arrangement and Assignment of Ground Points:






W11 - W16/6:

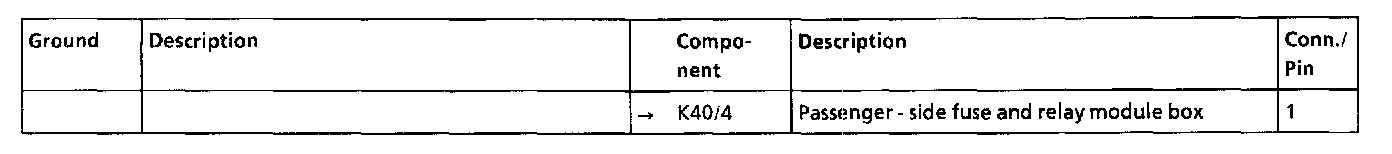

W16/6:
