Arrangement and Assignment of the Wiring and Plug Connectors

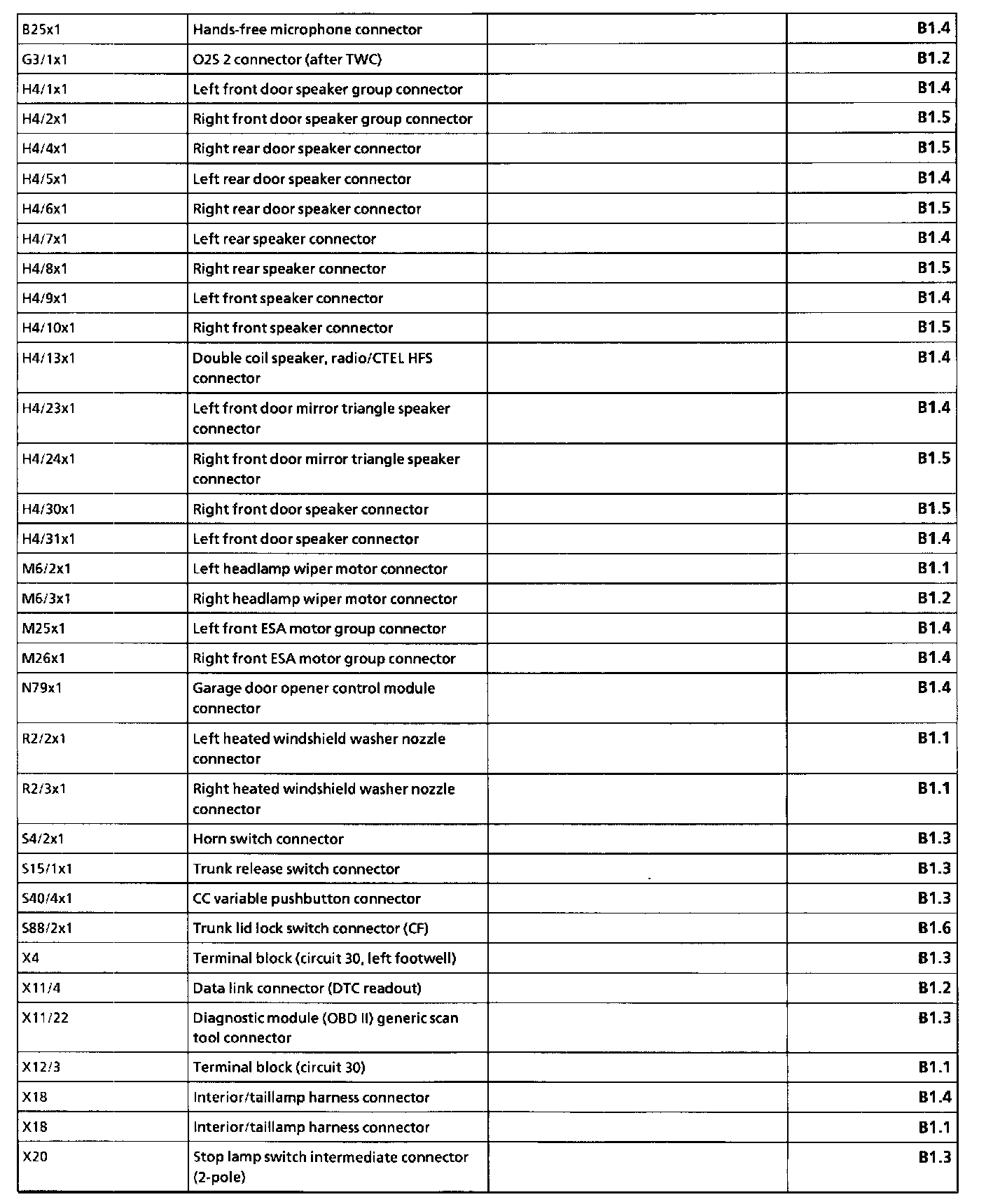

Arrangement and Assignment of the Wiring and Plug Connectors, Part 1:

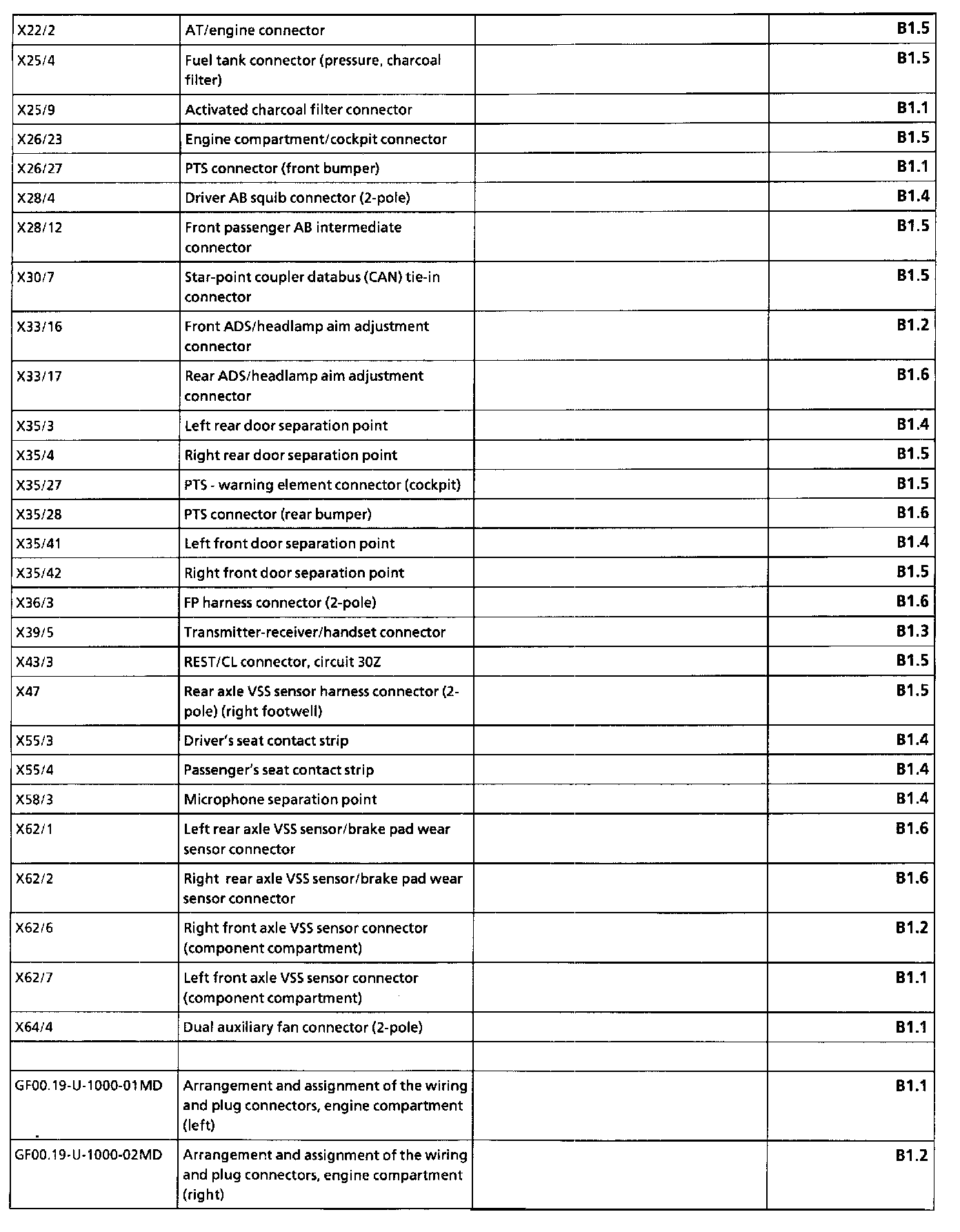

Arrangement and Assignment of the Wiring and Plug Connectors, Part 2:






Arrangement and Assignment of the Wiring and Plug Connectors, Part 3:
