AR82.10-P-4915A Remove/Install Taillamp In Trunk Lid

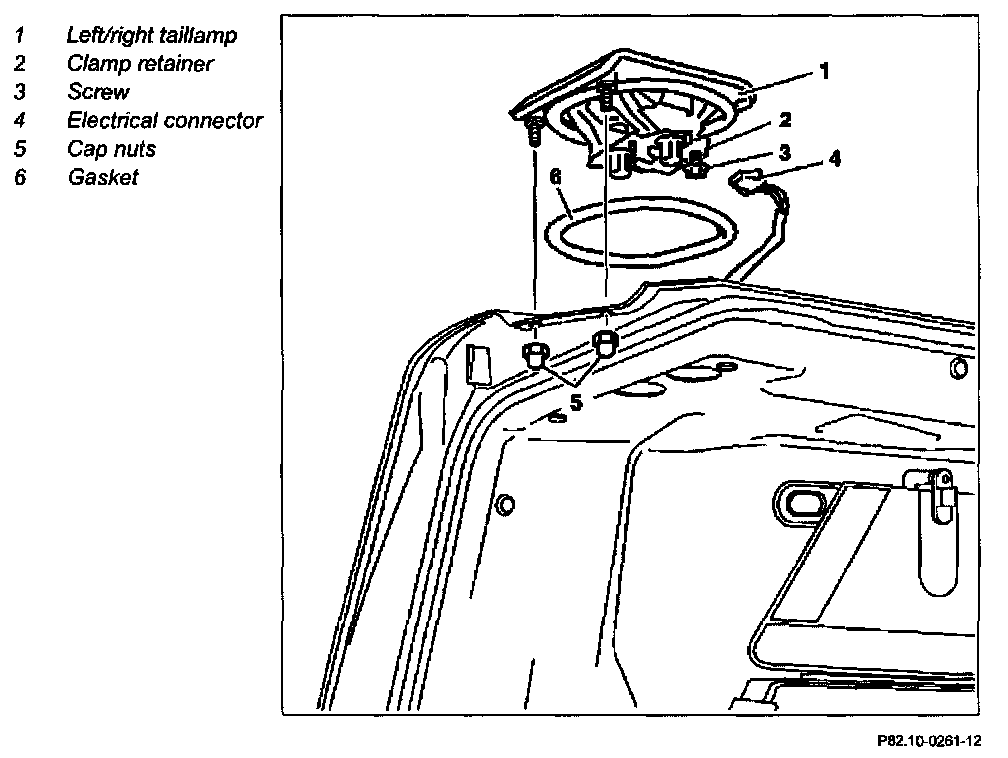

Removing And Installing Taillamp In Trunk Lid







1 Screw off cap nuts (5)
2 Remove clamp retainer (2)

NOTE:
- Unscrew screw (3) on clamp retainer (2) only far enough to release clamp retainer and thereby release taillamp (1) from trunk lid.
- Installation: First attach clamp retainer (2) to sheet metal crimp on installation opening and tension lightly. Then uniformly tighten cap nuts (5) and screw (3) for clamp retainer (2).

3 Remove taillamp (1) from trunk lid together with gasket (6)

NOTE: Installation: ensure that gasket is in good condition and properly seated

4 Disconnect electrical connector (4) from taillamp
5 Reinstall in opposite order
