AR82.10-P-4910B Remove/Install Taillamp

Removing And Installing Taillamp In Fender

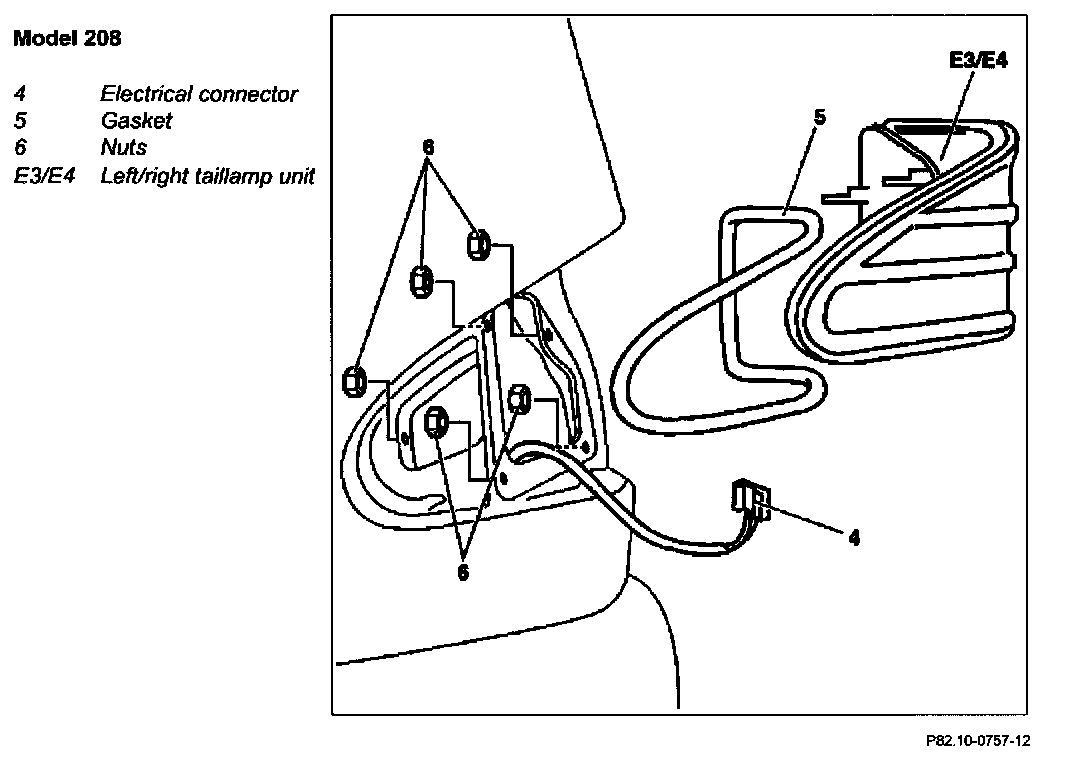

Model 208:

1 Fold side paneling in trunk to side
2 Unscrew nuts (6)
3 Remove taillamp unit (E3/E4) from fender together with gasket (5)

NOTE: Installation: Ensure that gasket is in good condition and seated properly

4 Disconnect electrical connector (4) from taillamp unit
5 Reinstall in opposite order
6 Check for proper function
