Center Mounted Brake Lamp: Service and Repair
Removing And Installing Center High-mounted Stop Lamp
Work Instructions

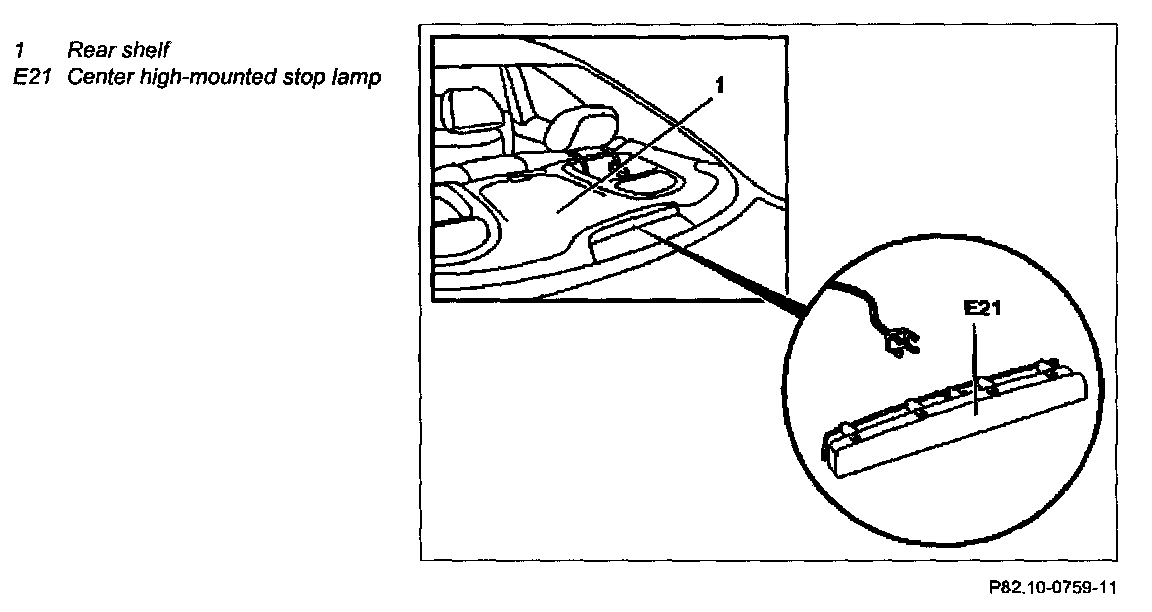

1
Rear shelf
E21
Press center high-mounted stop lamp (E21) out of rear shelf toward rear
