Receiver Dryer: Locations
Automatic Air Conditioning:

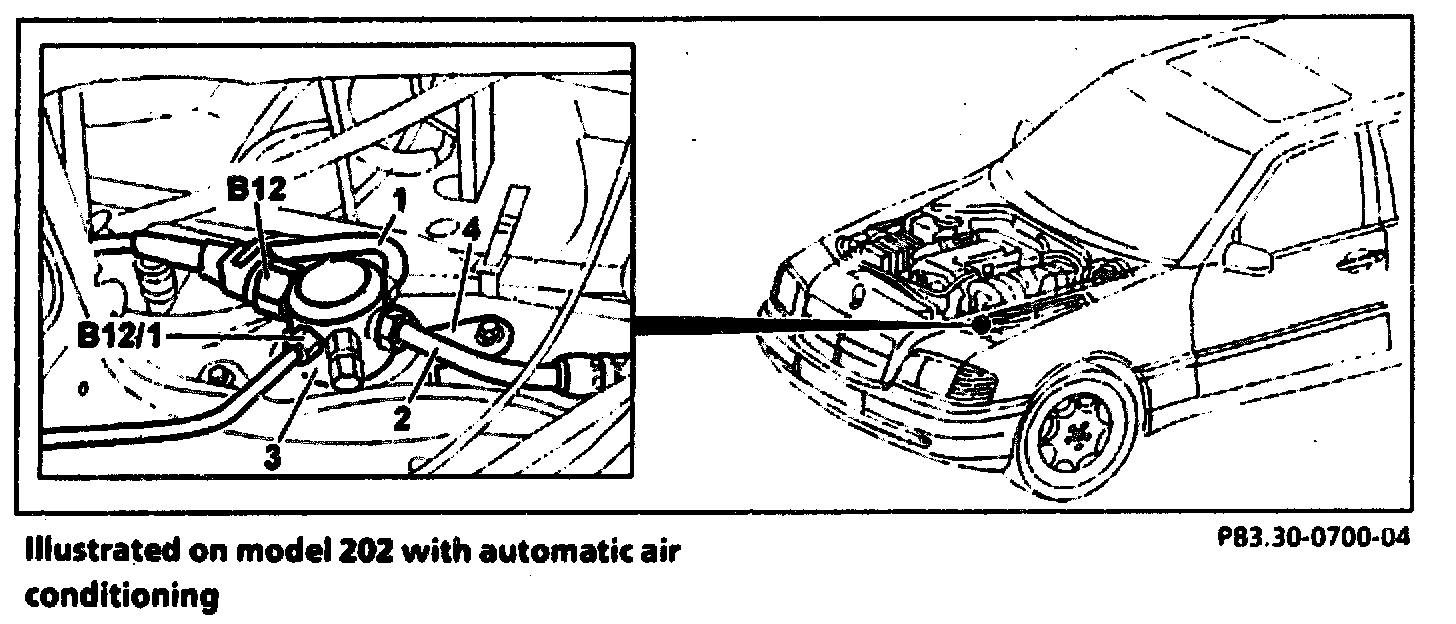

The receiver/drier (3) is located in the engine compartment at the left front.
