Condenser Fan: Locations

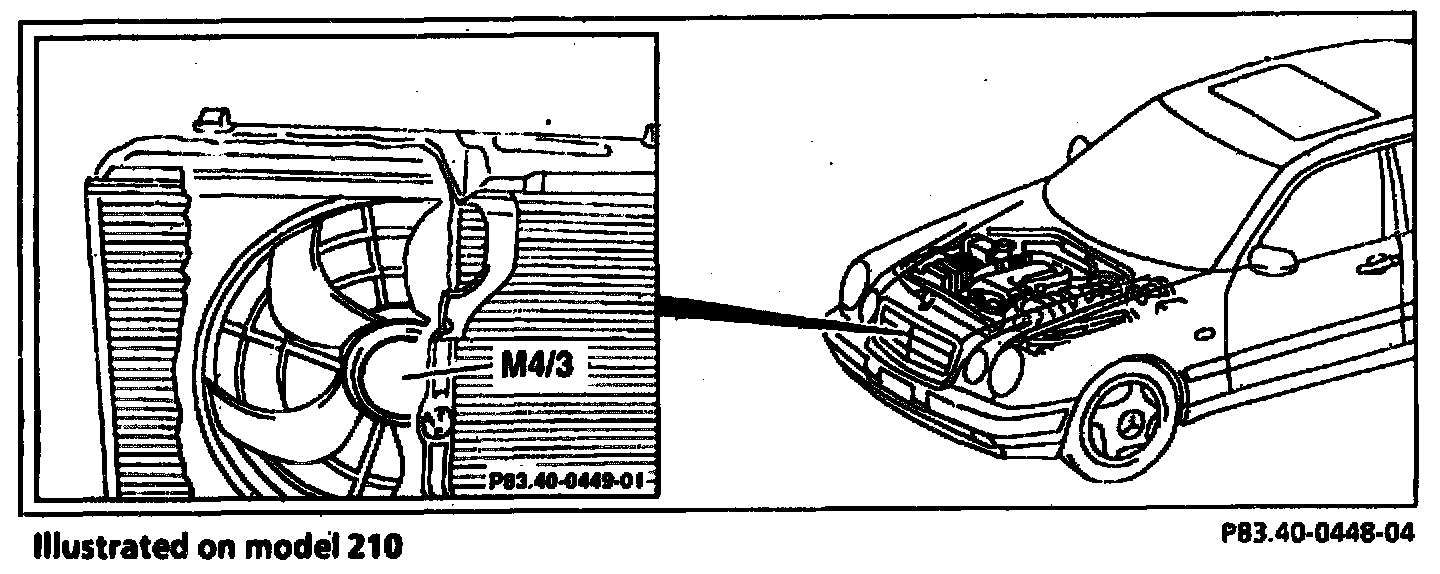

Illustrated On Model 210:
The electric suction-type fan (engine/A/C) (M4/3) is located behind the radiator grille.
