Vacuum Element For Footwell Flap
Vacuum Element For Footwell Flap

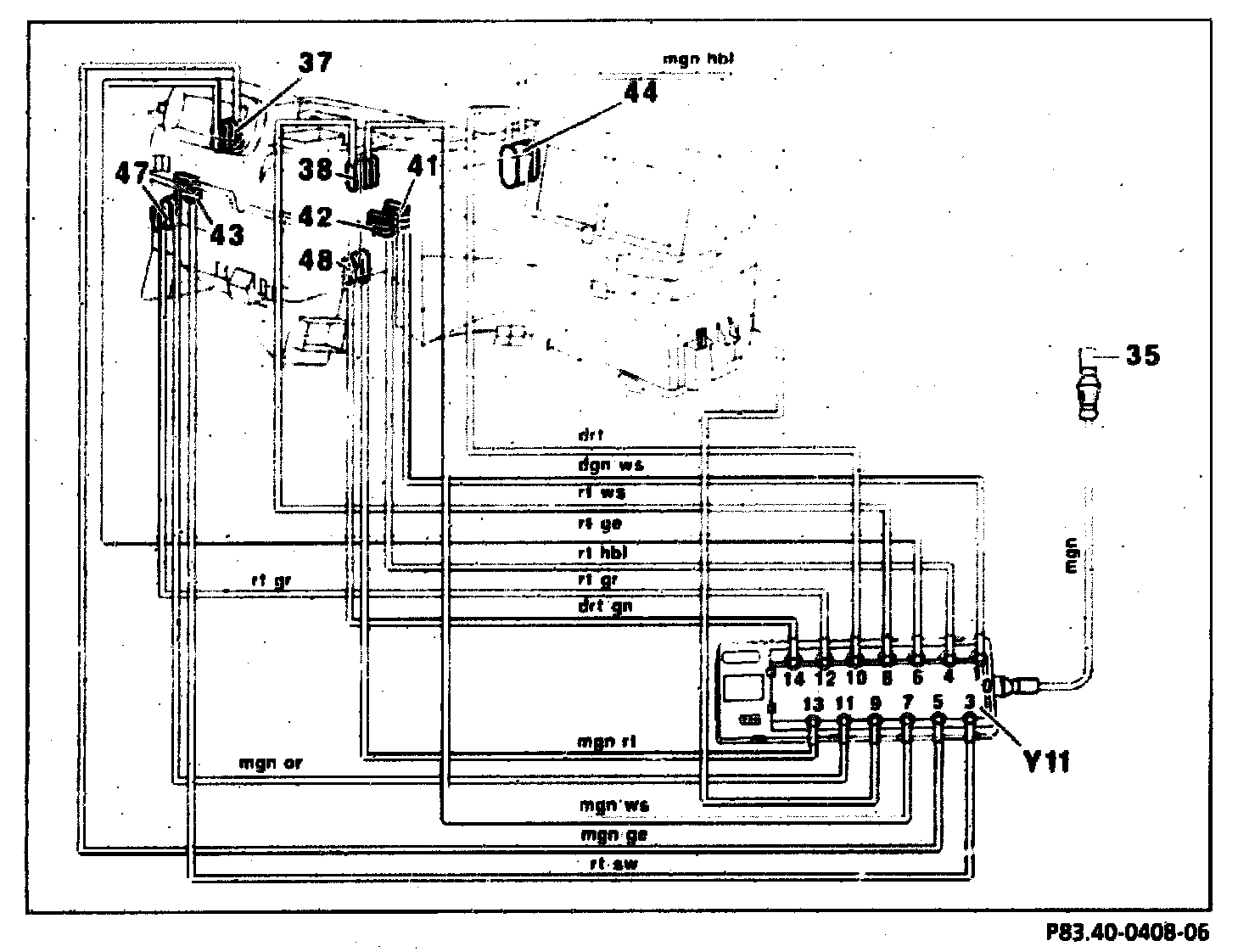

Component Identification:
The footwell flap vacuum elements (47, 48) are located on the A/C housing.
