Home >> Mercedes Benz >> 1998 >> CLK 320 (208.365) V6-3.2L (112.940) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Radiator >> Service and Repair

Radiator: Service and Repair

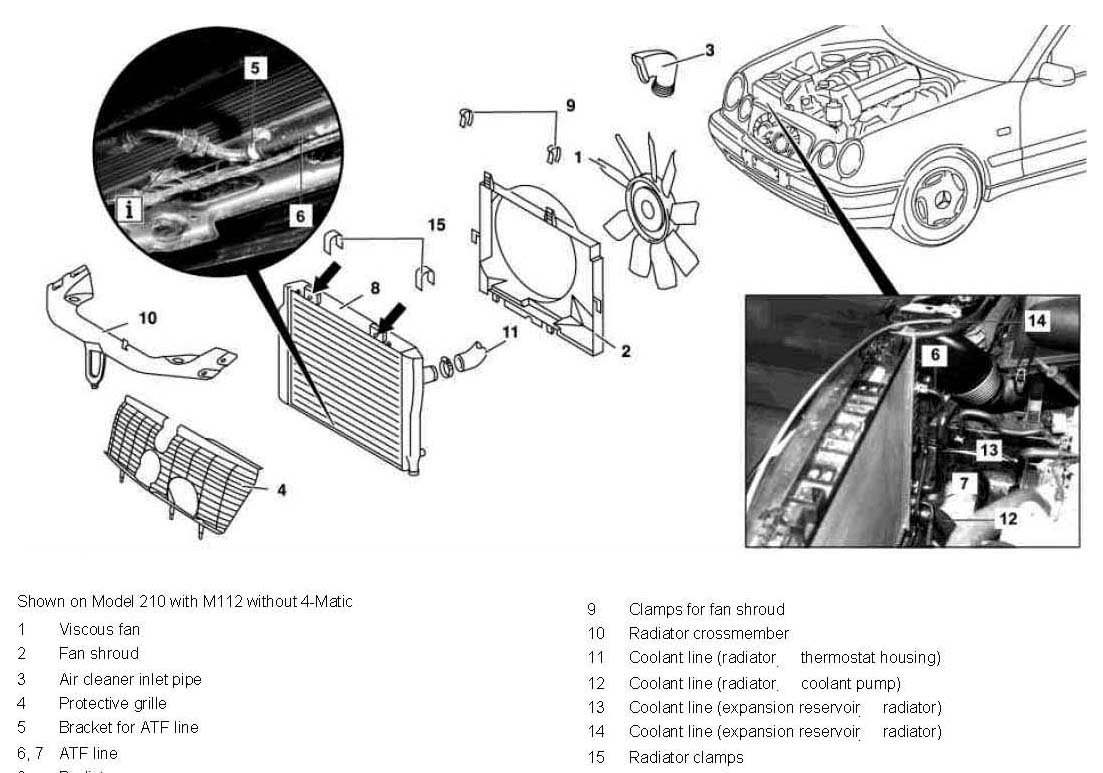

Remove/Install the radiator

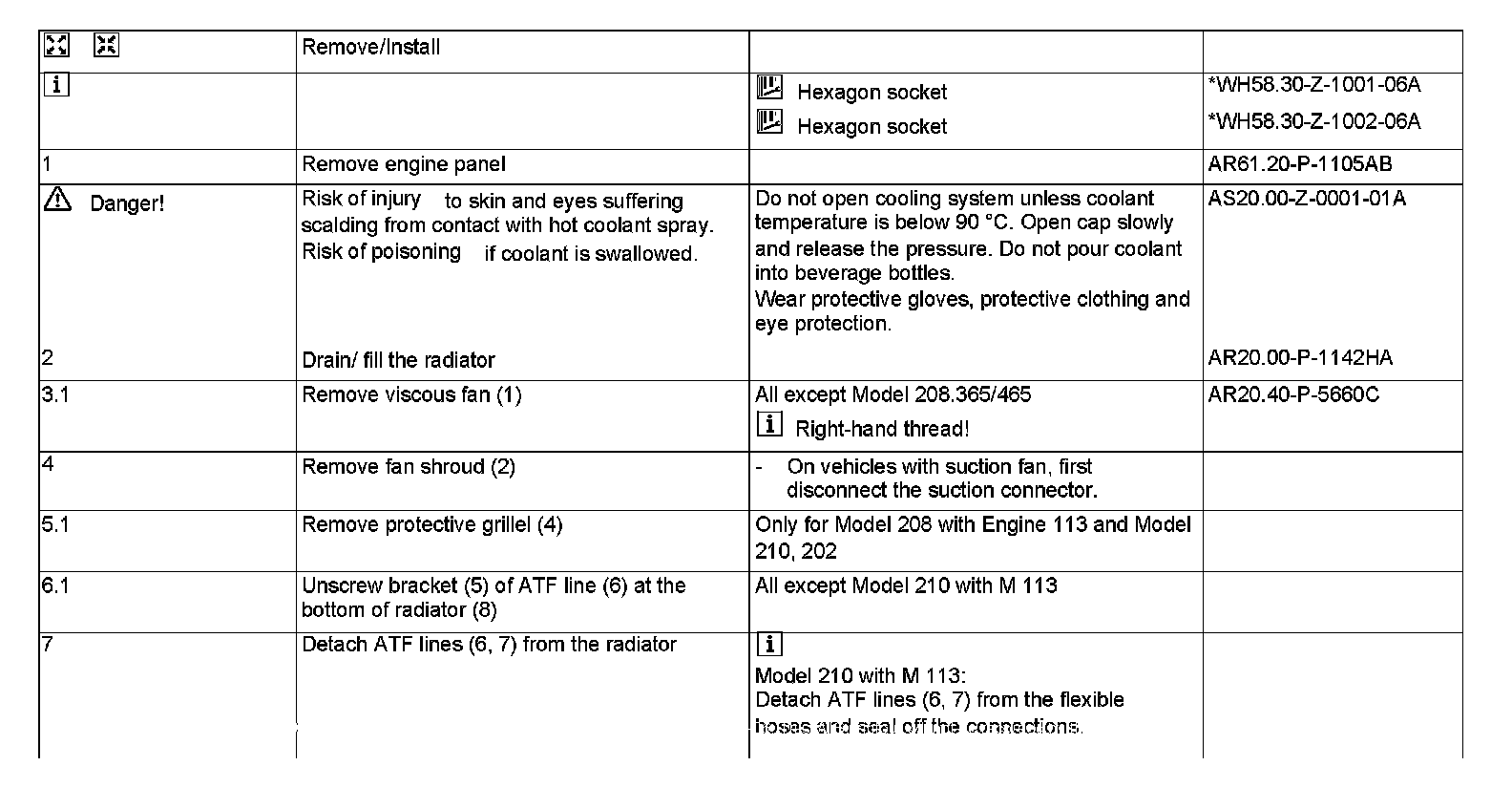

Steps 1-7:

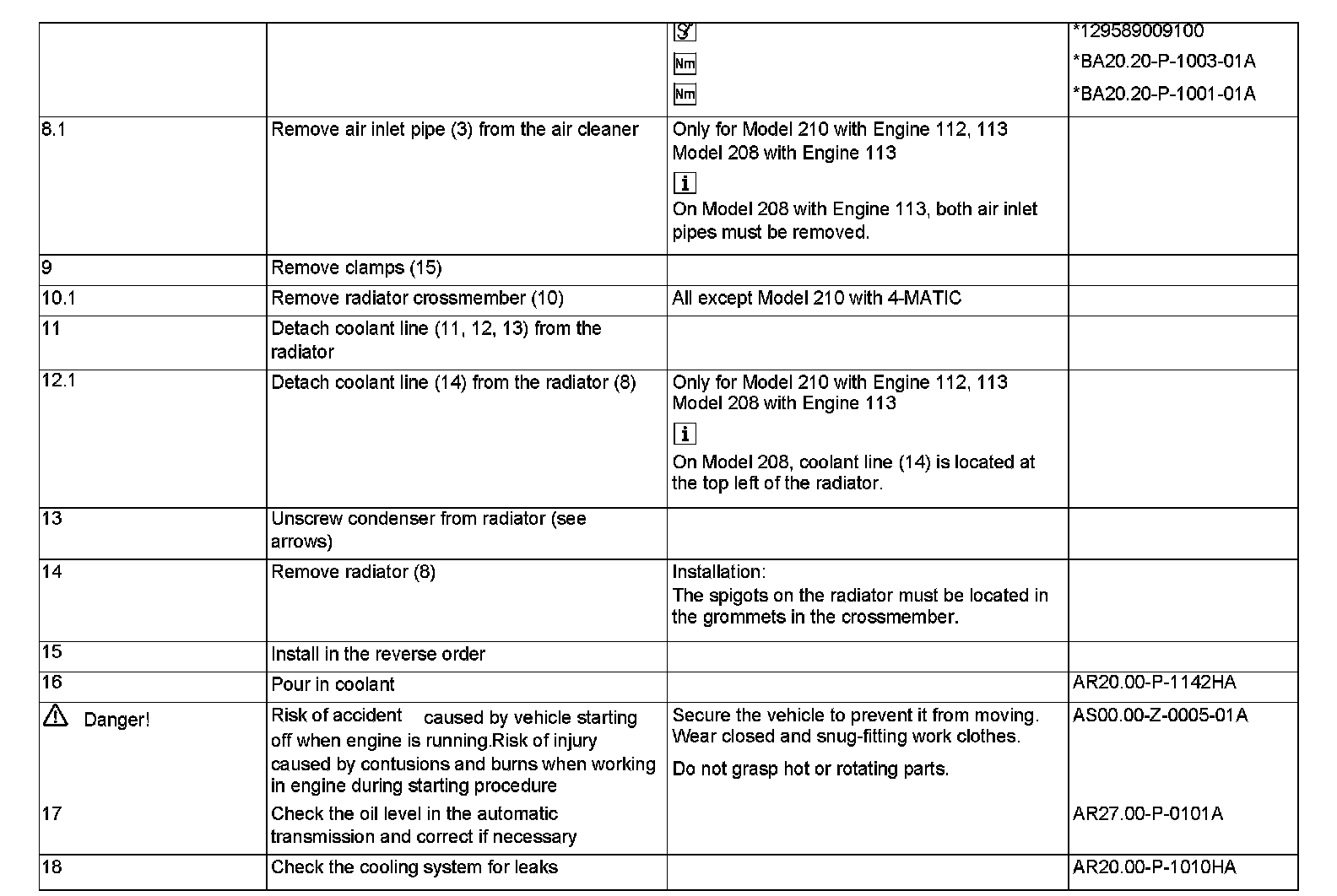

Steps 8-18:
