CLK 320 (208.365) V6-3.2L (112.940)
>>
Repair and Diagnosis
>>
Diagrams
>>
Grounds
>>
Interior Compartment (Right)
Interior Compartment (Right)

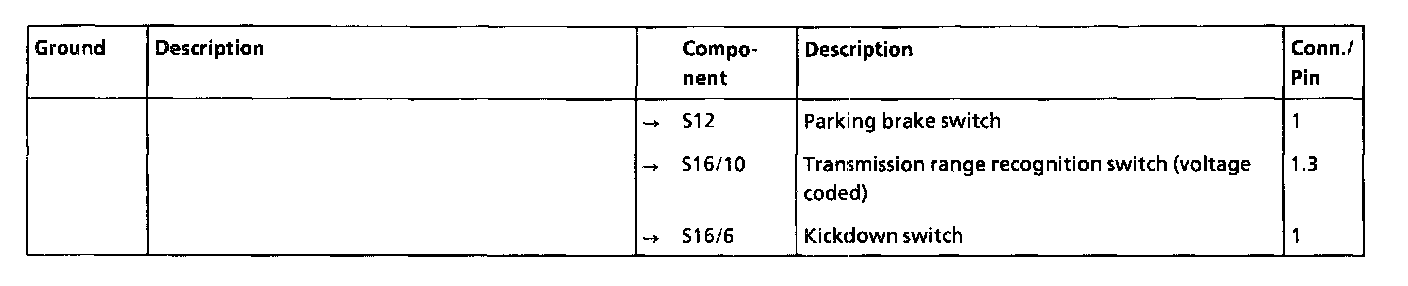

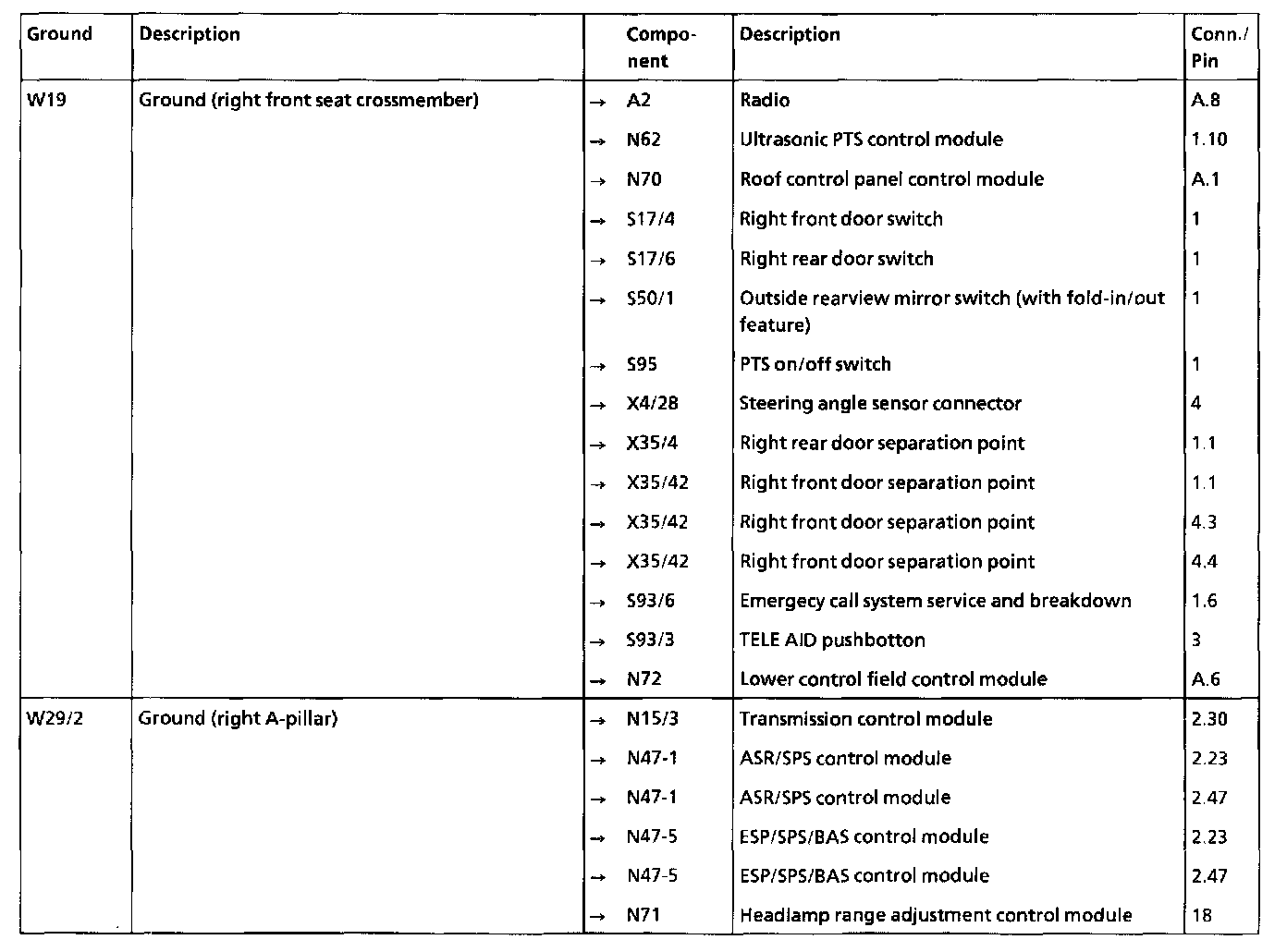

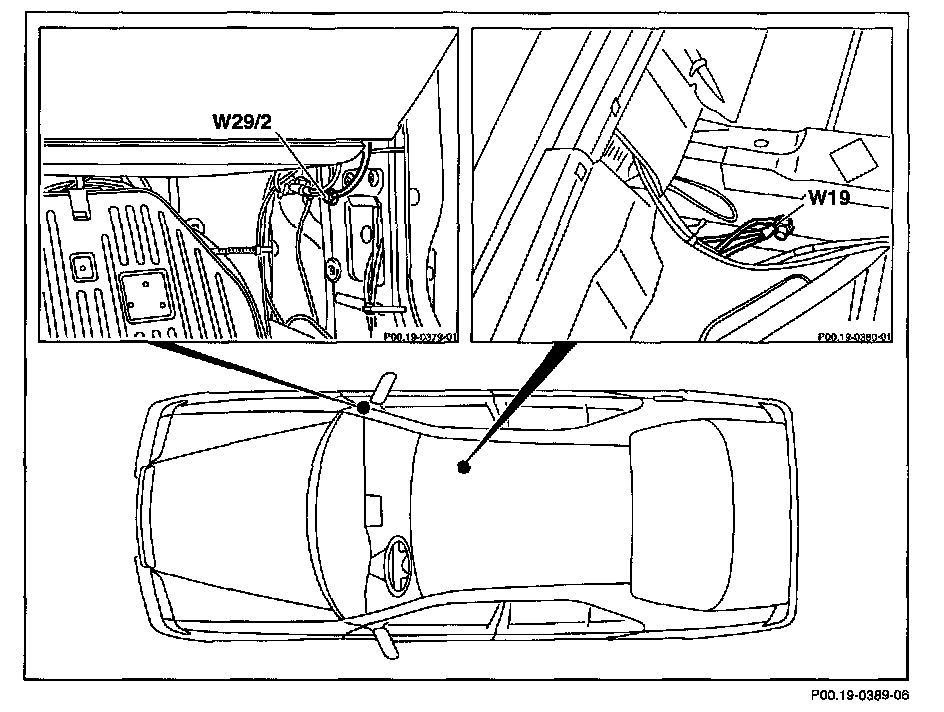

Interior Compartment (Right), Arrangement and Assignment of Ground Points:
W19 - W29/2:
W29/2:
