Interior Compartment (Left)
Interior Compartment (Left)

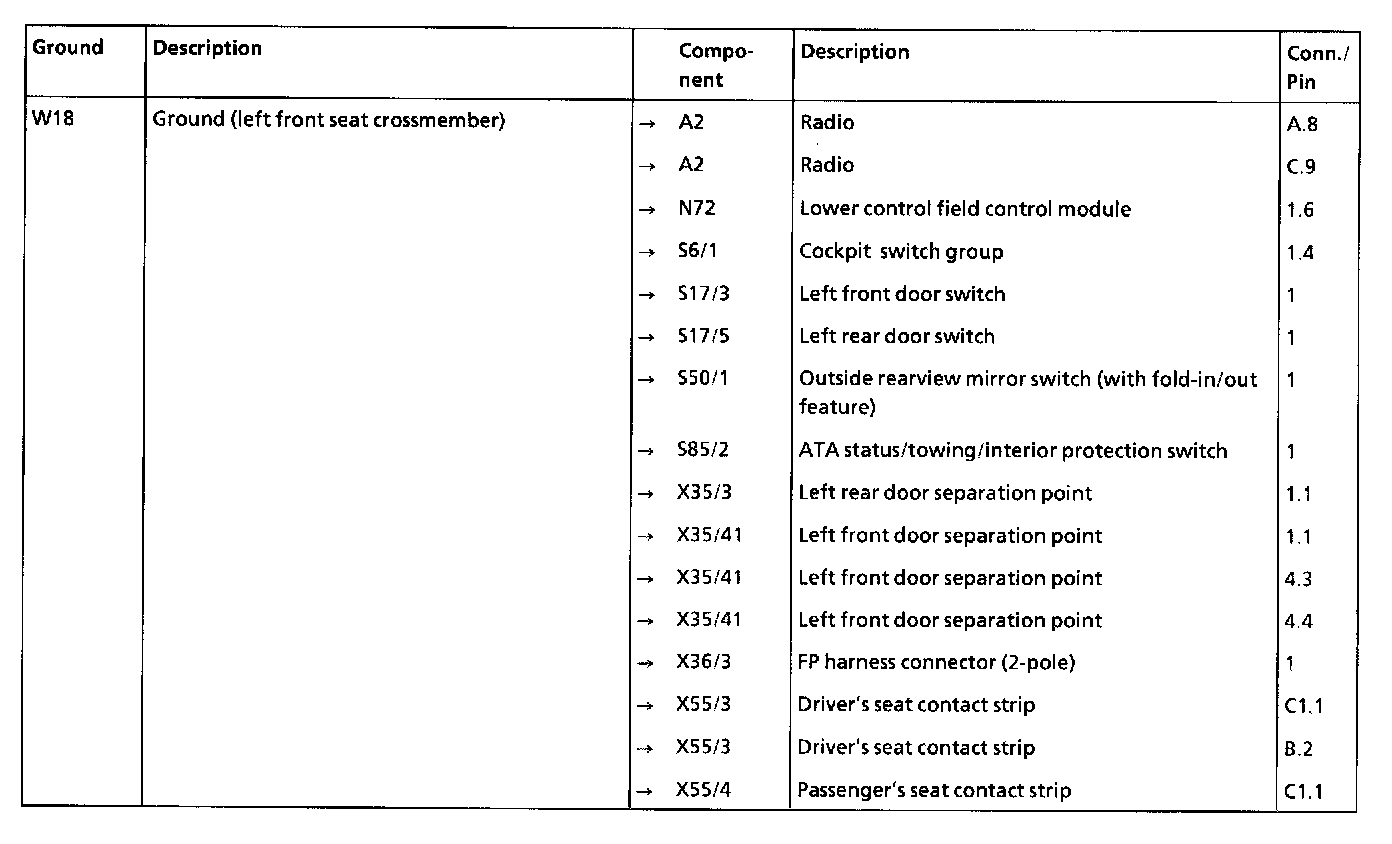

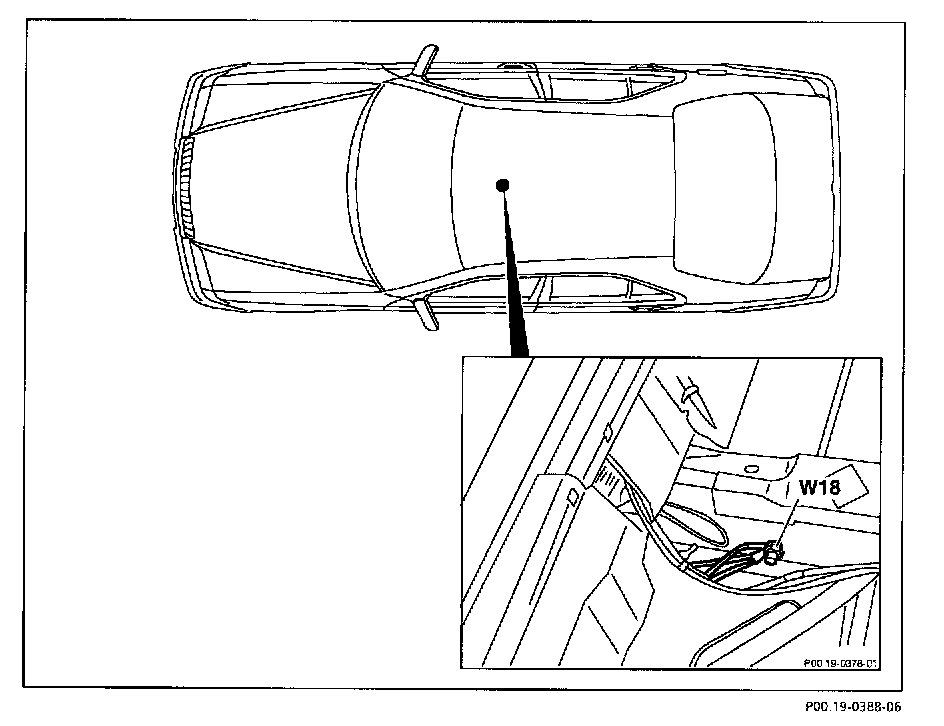

Interior Compartment (Left), Arrangement and Assignment of Ground Points:
W18:
