Home >> Mercedes Benz >> 1998 >> CLK 320 (208.365) V6-3.2L (112.940) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> System Diagram >> Heated Seats (HS) PE91.30-U-2000ME

Heated Seats (HS) PE91.30-U-2000ME



Heated Seats (HS) PE91.30-U-2000ME
- with CODE (873) Electrically heated left and right front seats

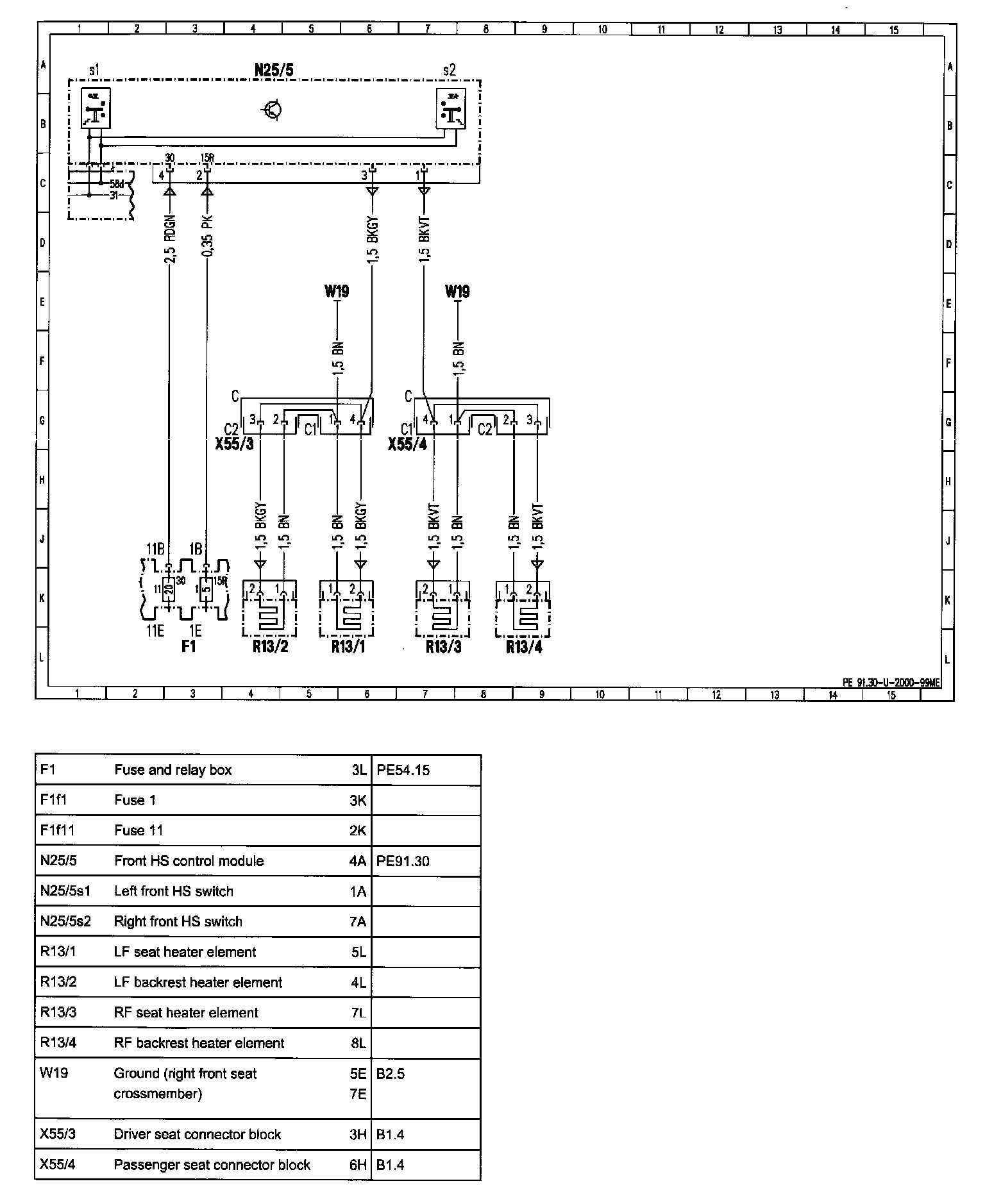

Heated Seats (HS), PE91.30-U-2000ME:

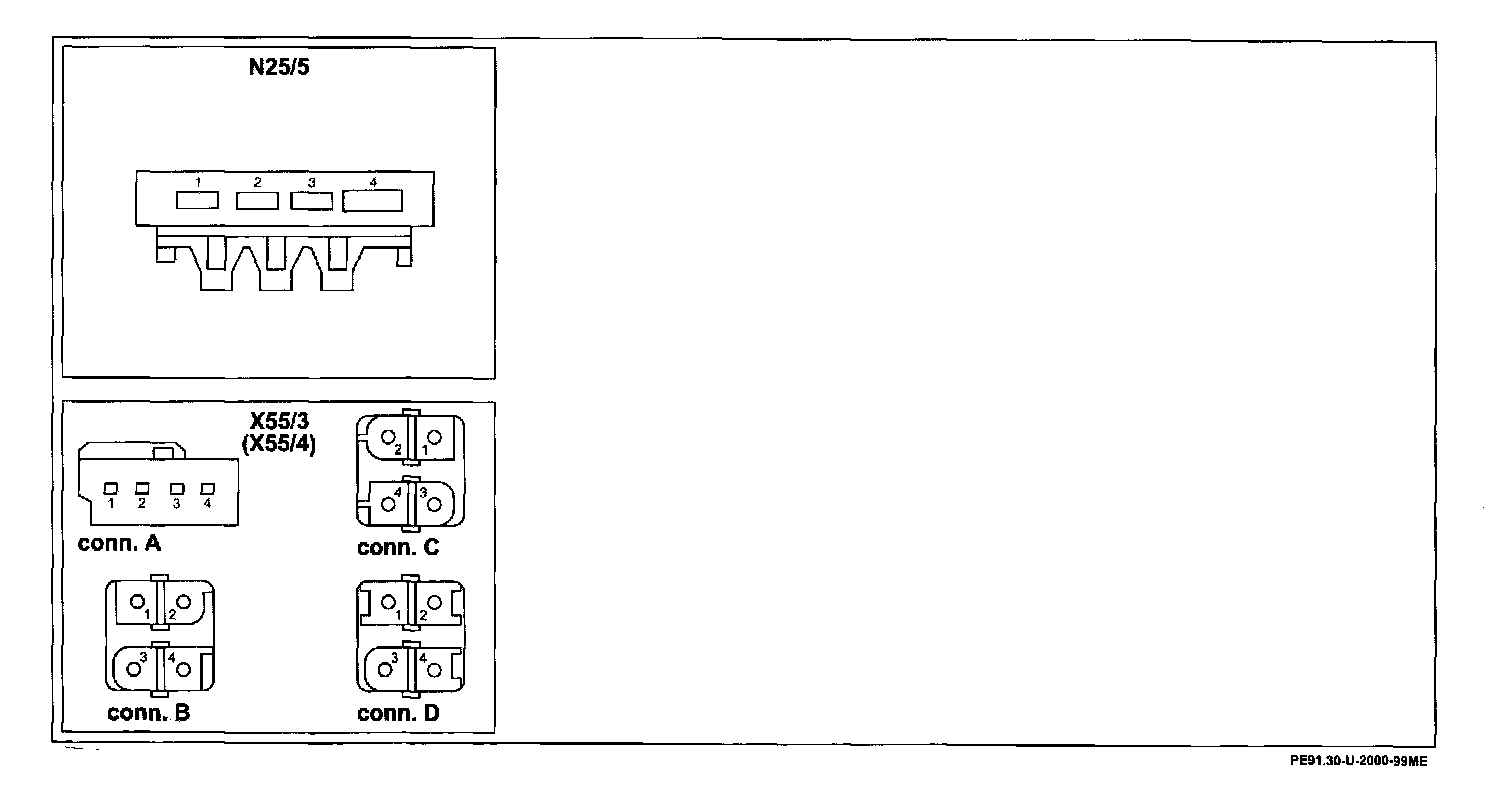

Connector Assignment:

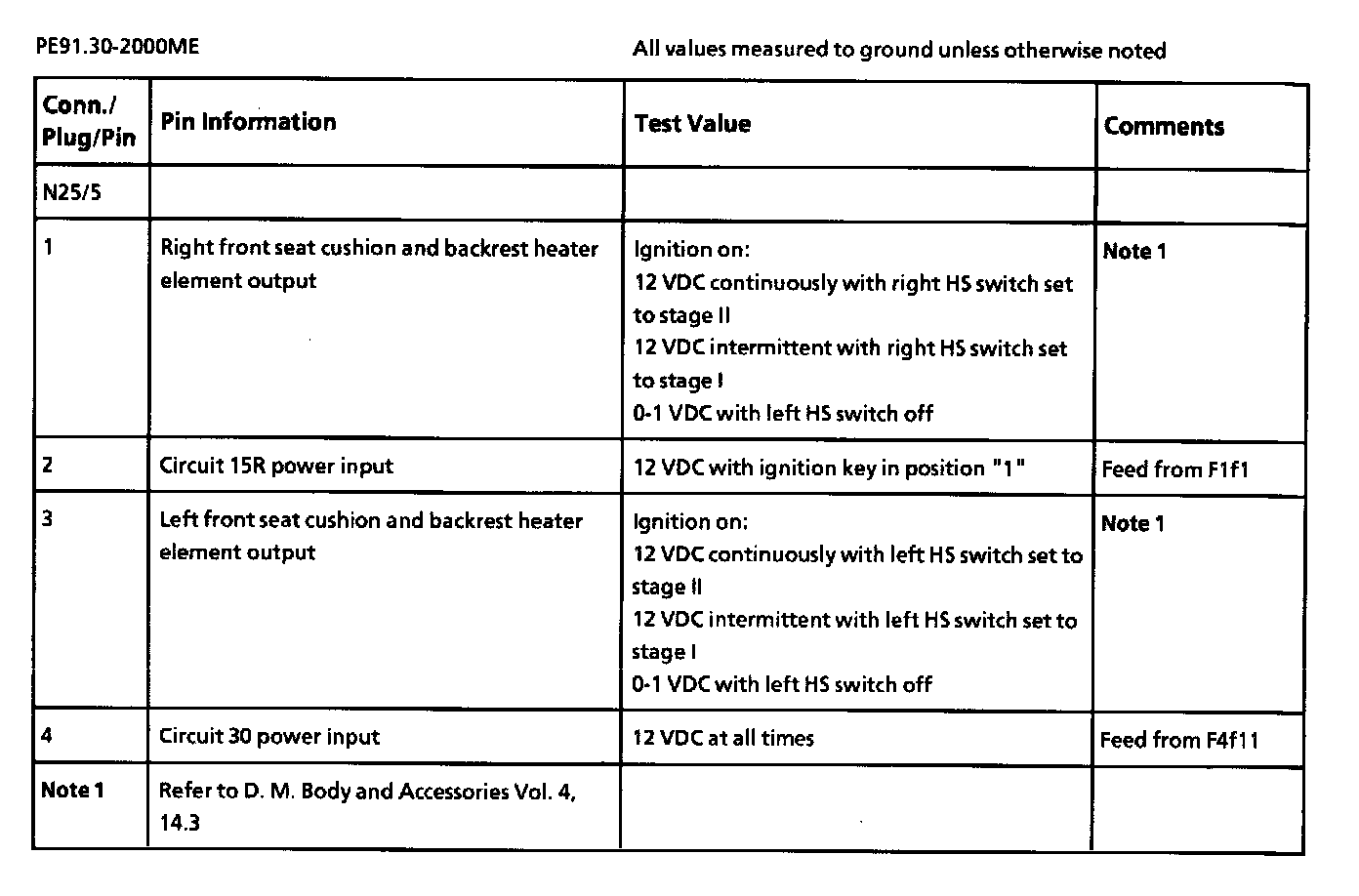

Pin Information:
