Interior Lights PE82.20-U-2000ME
Interior Lights PE82.20-U-2000ME
Interior Lights

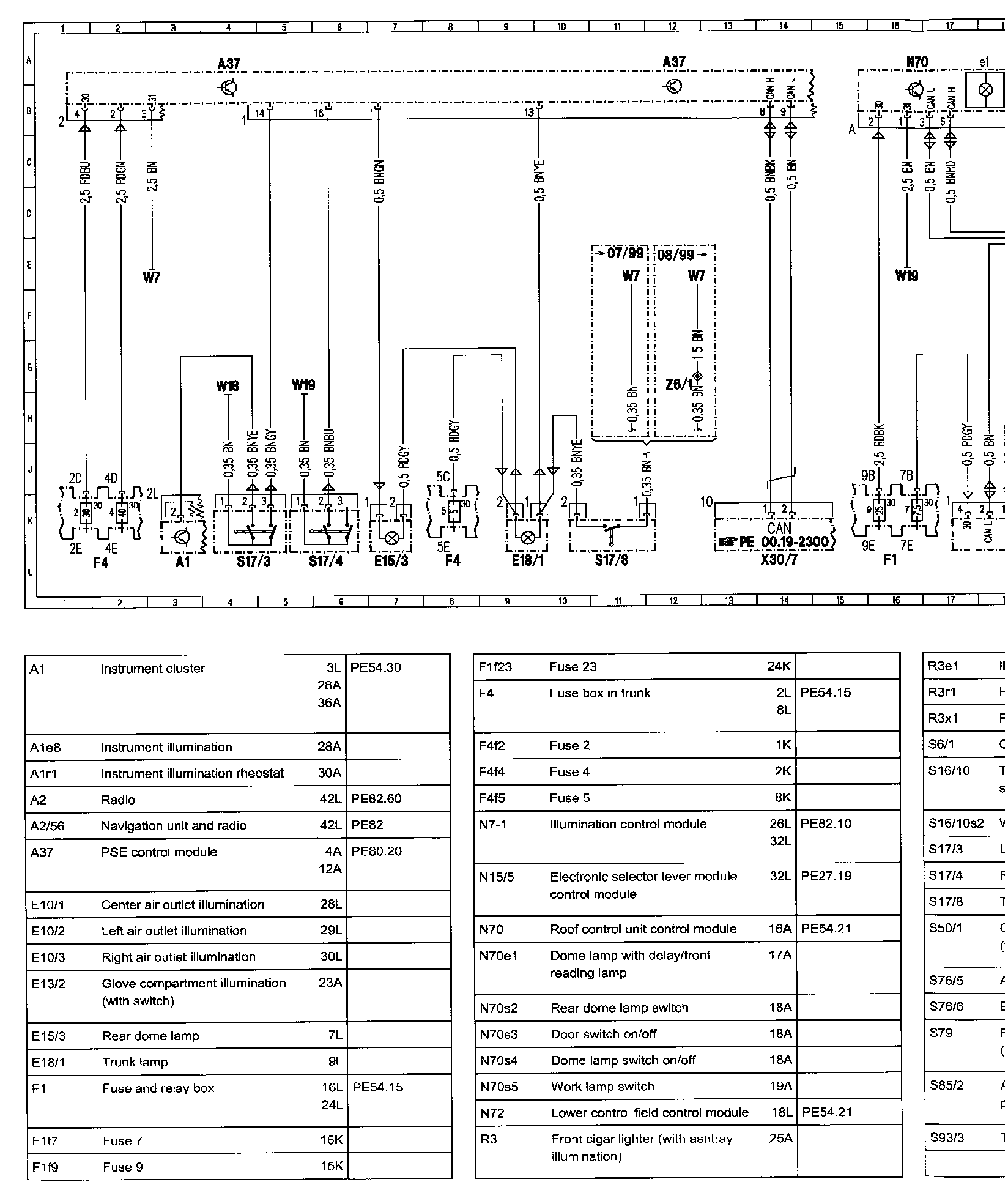

��4Z�#5ZInterior Lights, PE82.20-U-2000ME:

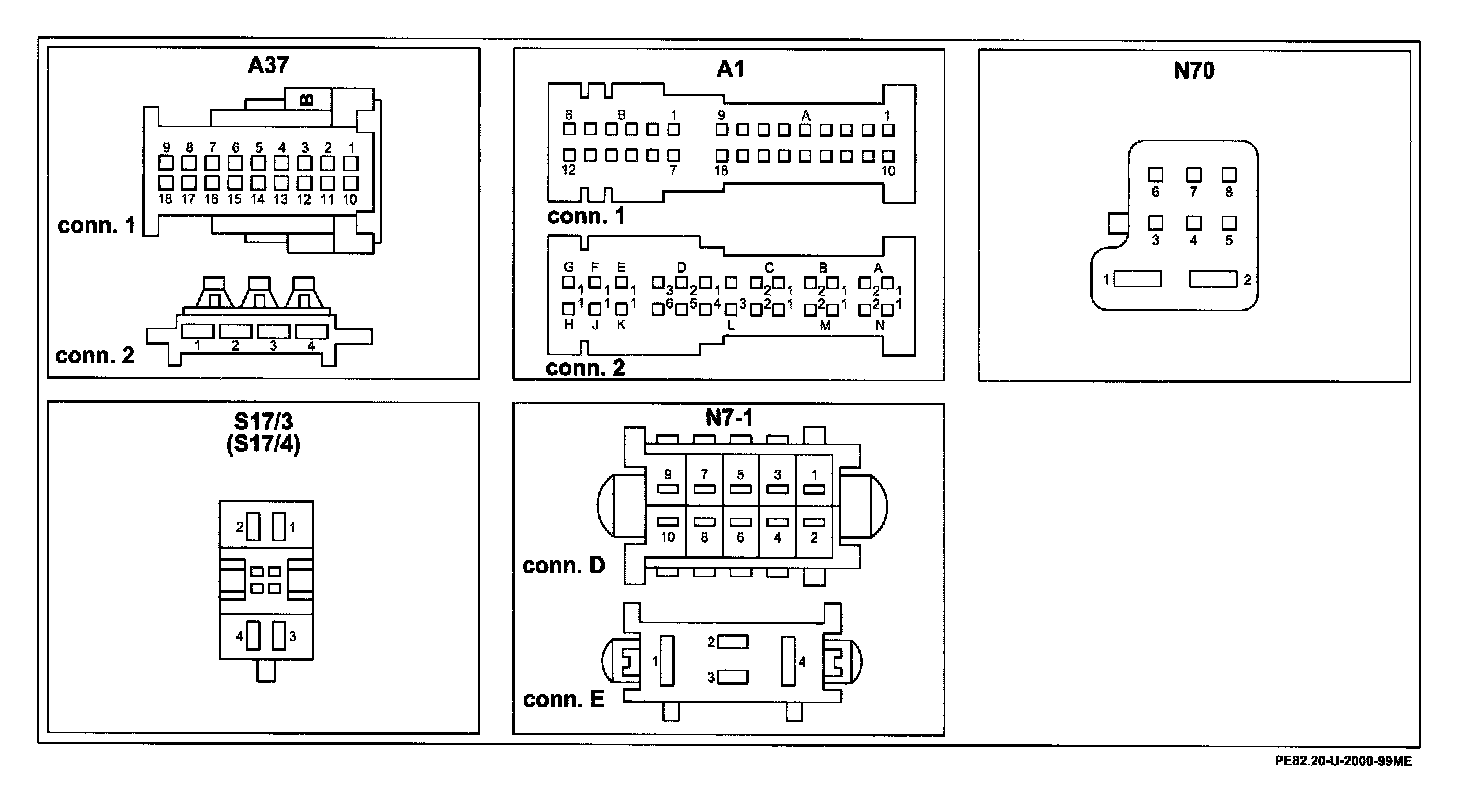

Connector Assignment:

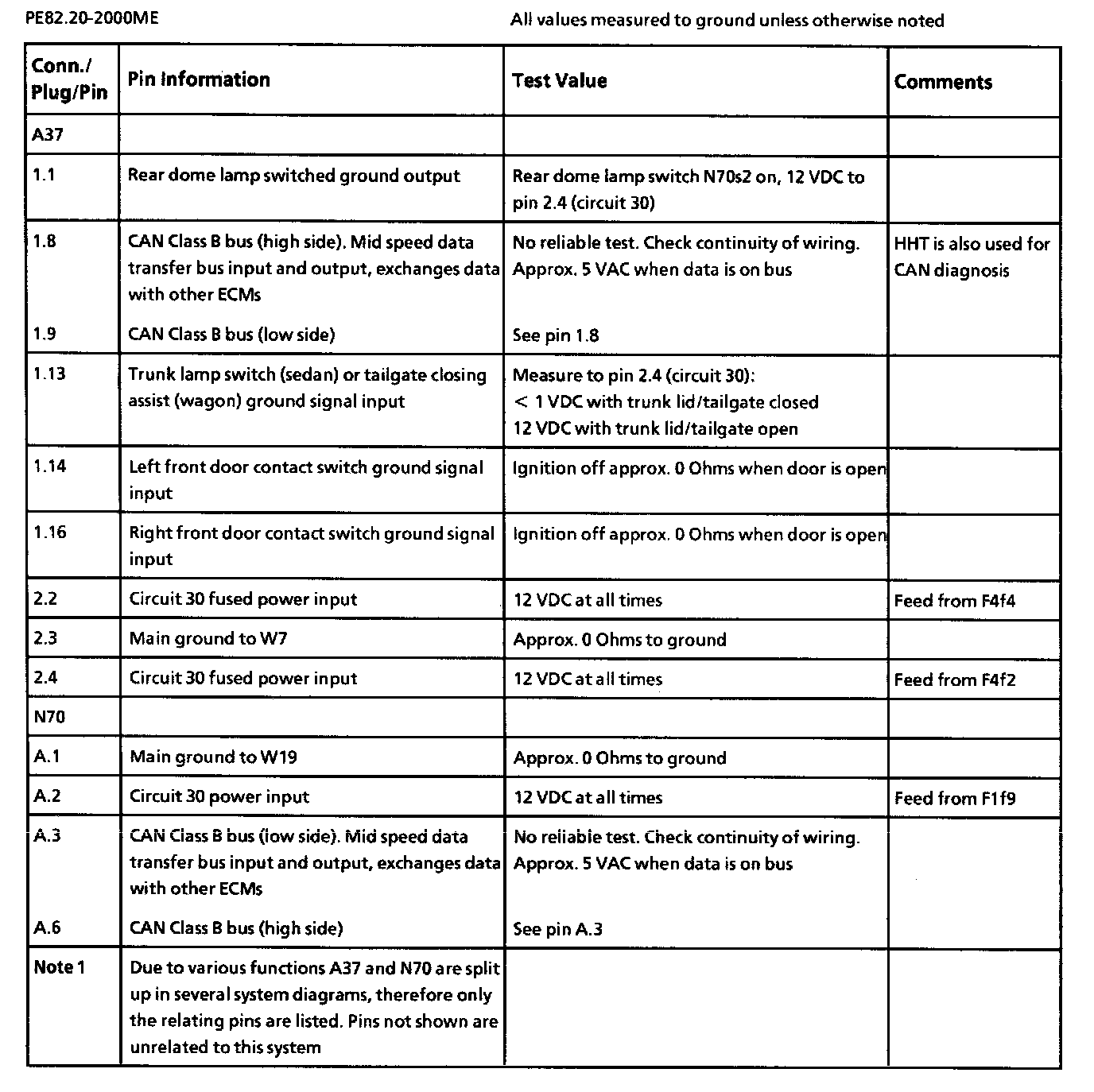

Pin Information:
