Brake Rotor/Disc: Tools and Equipment

NOTE: For model name/model number cross reference refer to Model Designation Table. Application and ID

Front

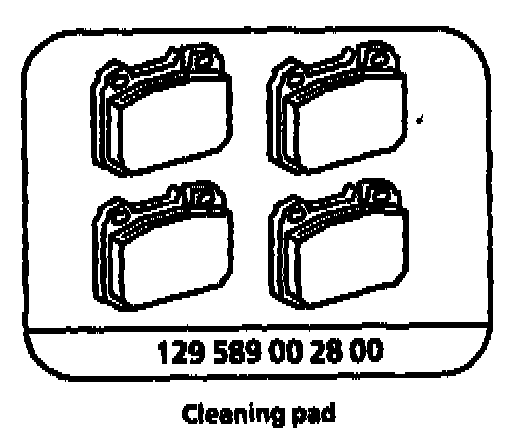

Tool No. 129 589 00 28 00





Models 129,
Models 210.072/270/272
Model 210.072 except CODE 957a AMG engineering package
Models 208.370/470 except CODE (491)
Model 210.070
except CODE (498)
except CODE (625)
except CODE (491)

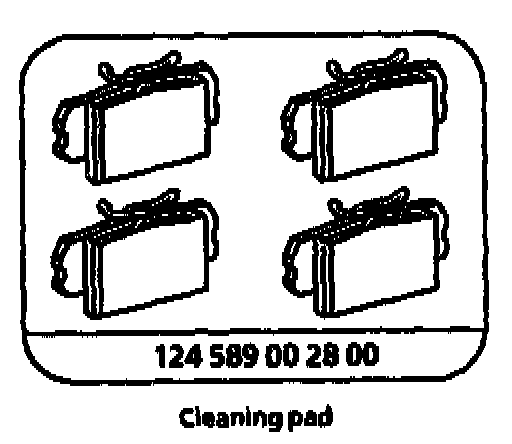

Tool No. 124 589 00 28 00





Models 202.018/020/022/023/078/080/083/120/121/122/125/133/180/182/193
Model 202.028 up to 31.8.95 except CODE (957a) AMG engineering package.

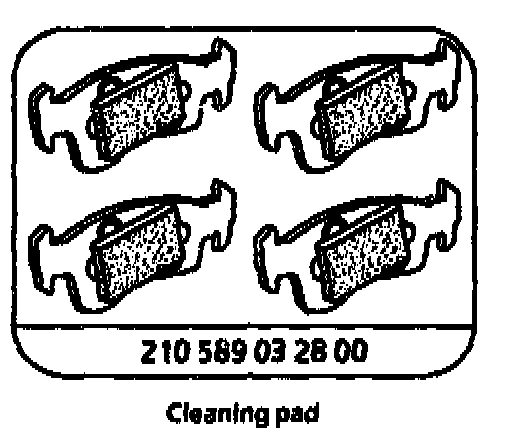

Tool No. 210 589 03 28 00





Models 170.435/445/447,
Models 202.024/025/026/029/082/085/086/089/128/188,
Models 208.335/345/347/365/435/445/447/465
Models 202.028 as of 1.9.95,
Models 210.00/01/02/035/037/04/05/06/08/20/21/22/23/24/26/28/60/61/663 except CODE (957a) AMG engineering package
Model 210.070
with CODE (491)
with CODE (498)
with CODE (625)
Models 208.370/470 with CODE (491)

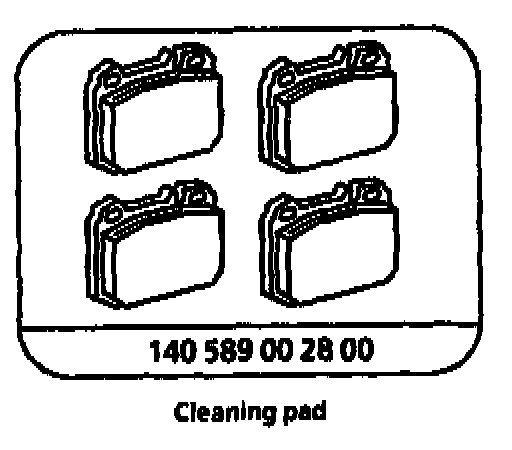

Tool No. 140 589 00 28 00





Model 140 with 2-piston fixed caliper

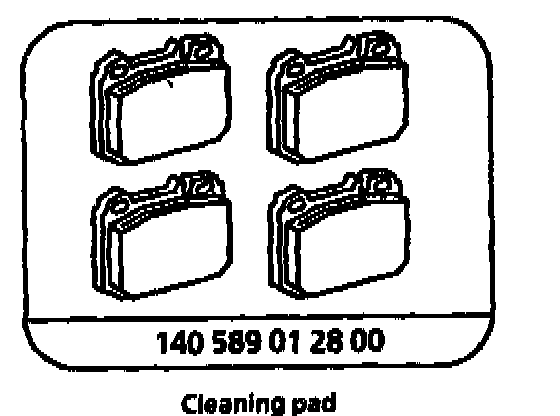

Tool No. 140 589 01 28 00





Model 140 with 4-piston fixed caliper



Rear
Tool No. 124 589 00 28 00





Models 129
Models 170
Models 202
Models 208
Models 210
Only with two retaining pins on fixed caliper

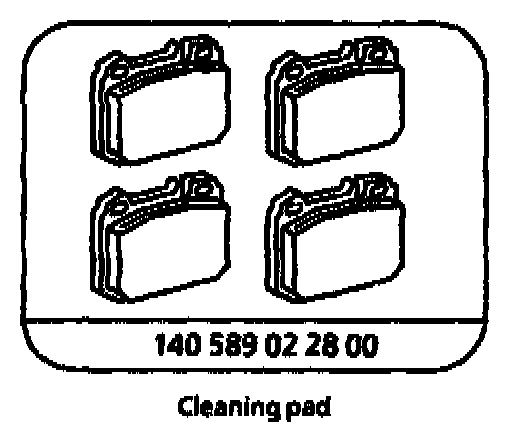

Tool No. 140 589 02 28 00





Models 140
