Home >> Mercedes Benz >> 1998 >> CLK 320 (208.365) V6-3.2L (112.940) >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Cover >> Service and Repair >> Removal and Replacement >> AR91.18-P-1820K Remove/Install Cover on Front Seat Backrest

AR91.18-P-1820K Remove/Install Cover on Front Seat Backrest



AR91.18-P-1820K Removing And Installing Cover On Front Seat Backrest

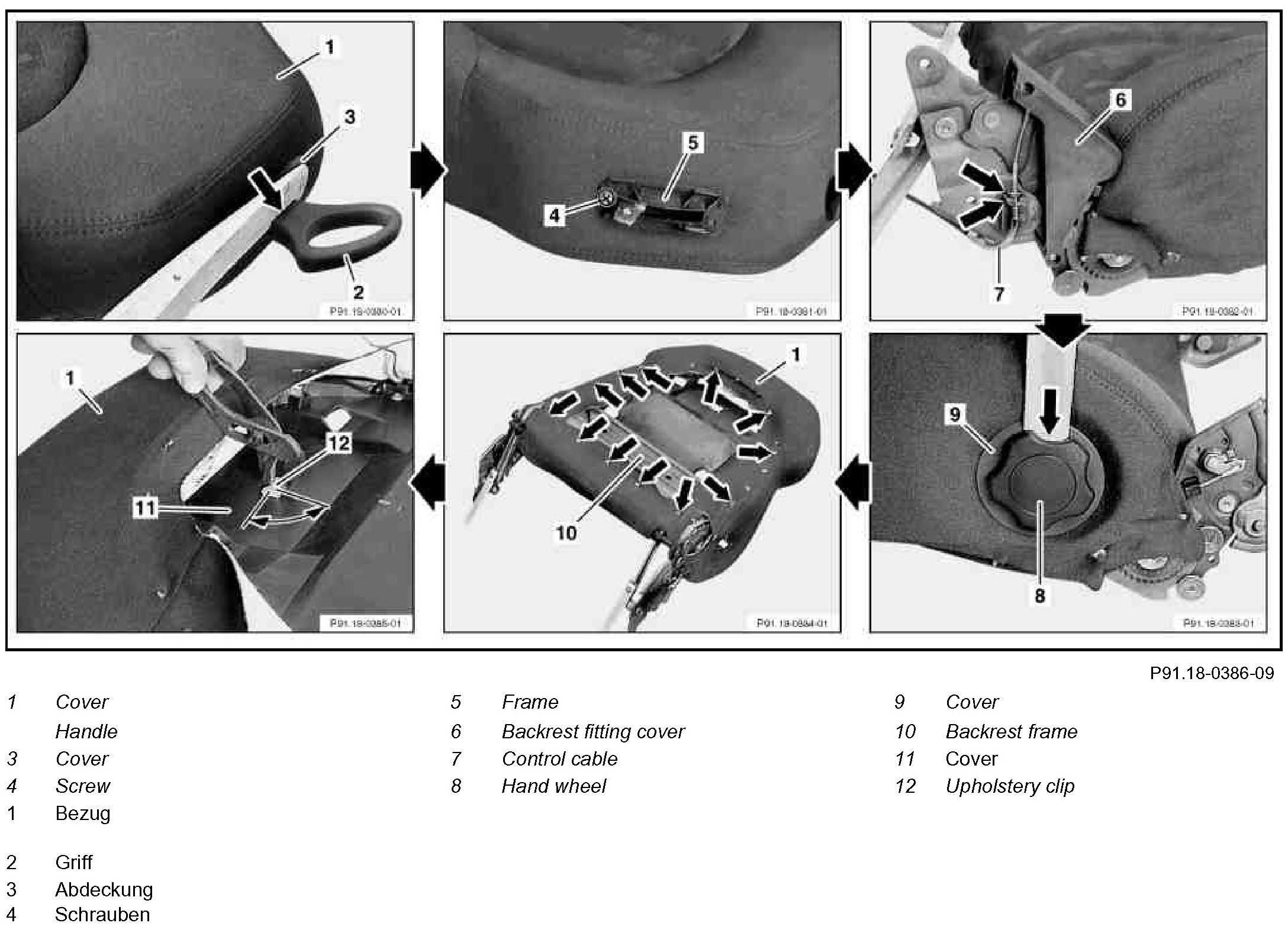

Component Identification:

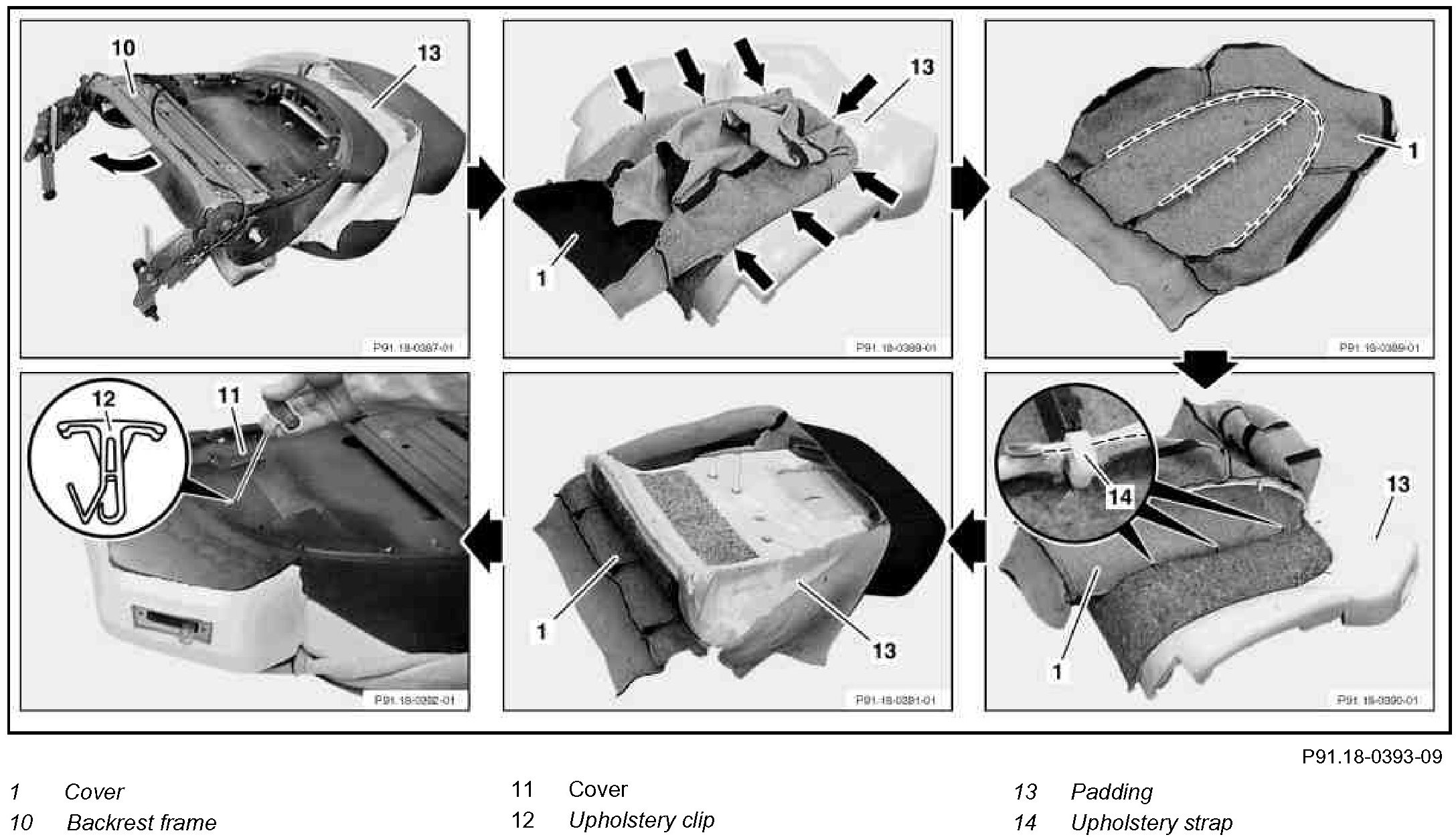

Component Identification:

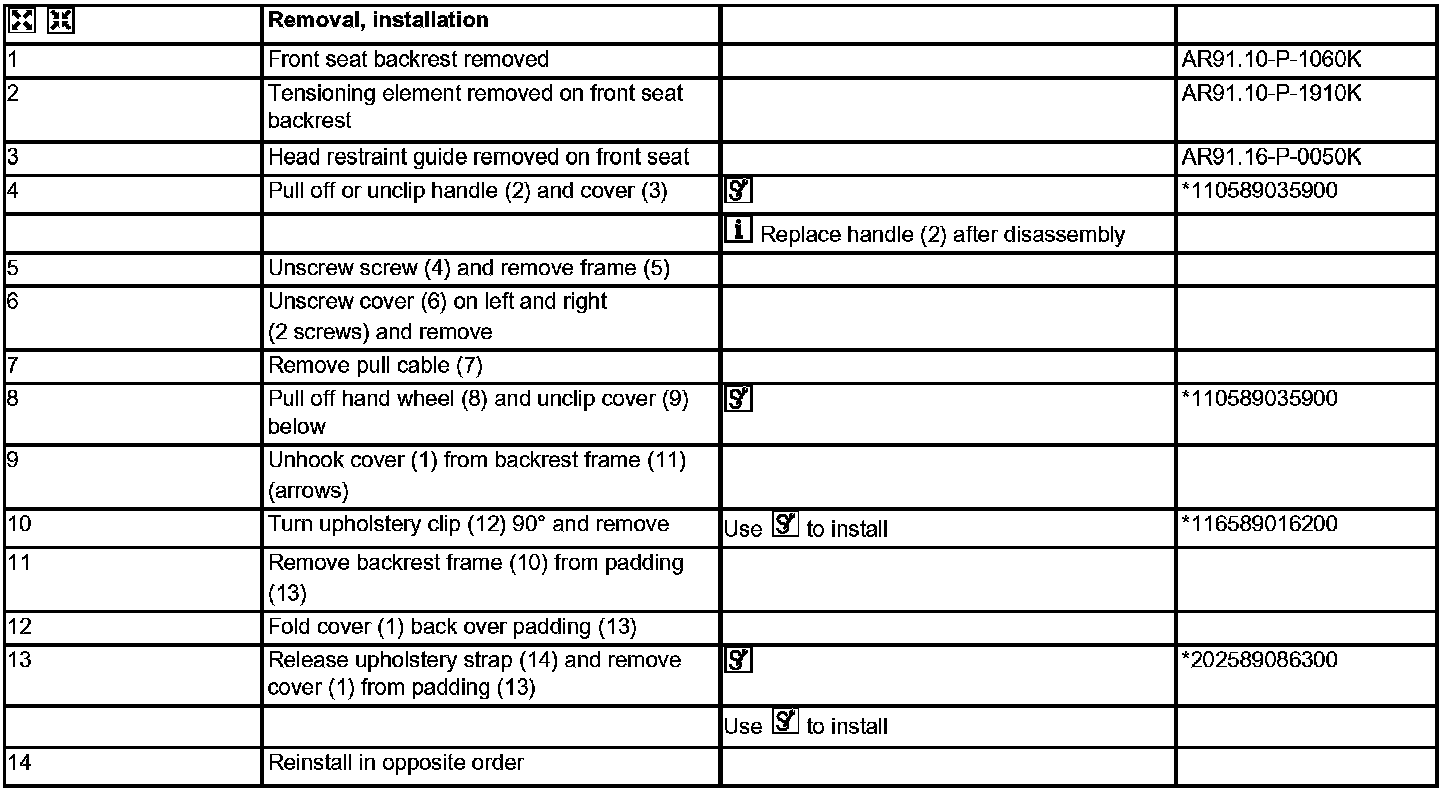

Steps 1 - 14:

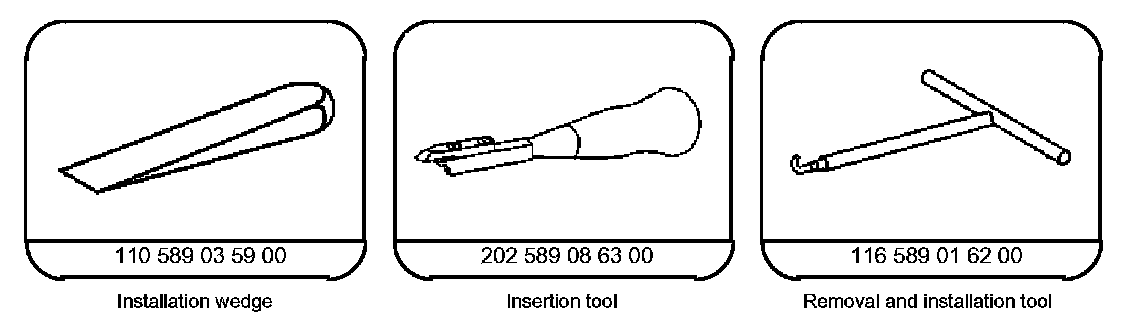

Special Tools:
