Home >> Mercedes Benz >> 1998 >> CLK 320 (208.365) V6-3.2L (112.940) >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Cover >> Service and Repair >> Removal and Replacement >> AR91.18-P-1800K Remove/Install Cover on Front Seat Cushion

AR91.18-P-1800K Remove/Install Cover on Front Seat Cushion



AR91.18-P-1800K Removing And Installing Cover On Front Seat Cushion

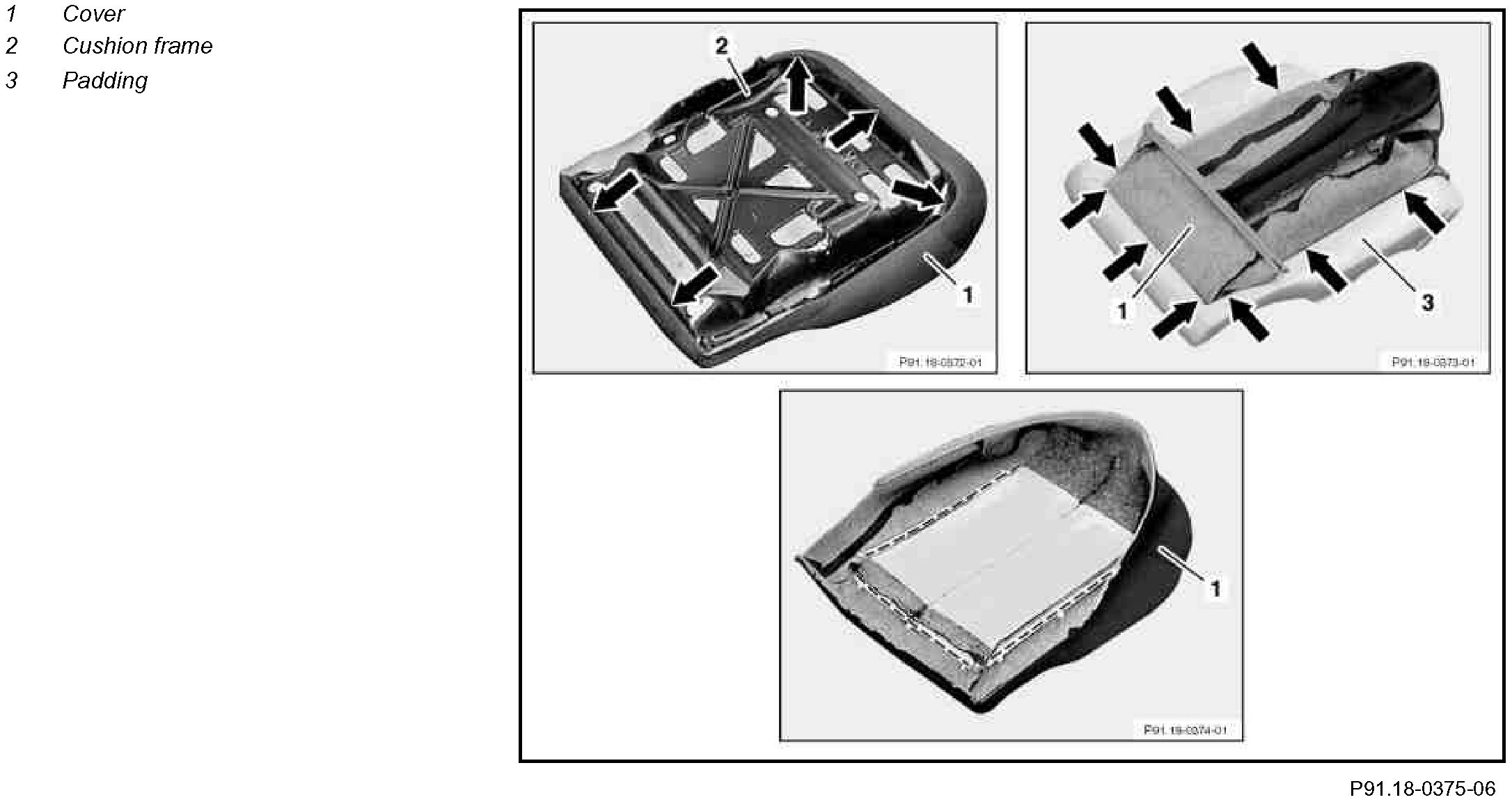

Component Identification:

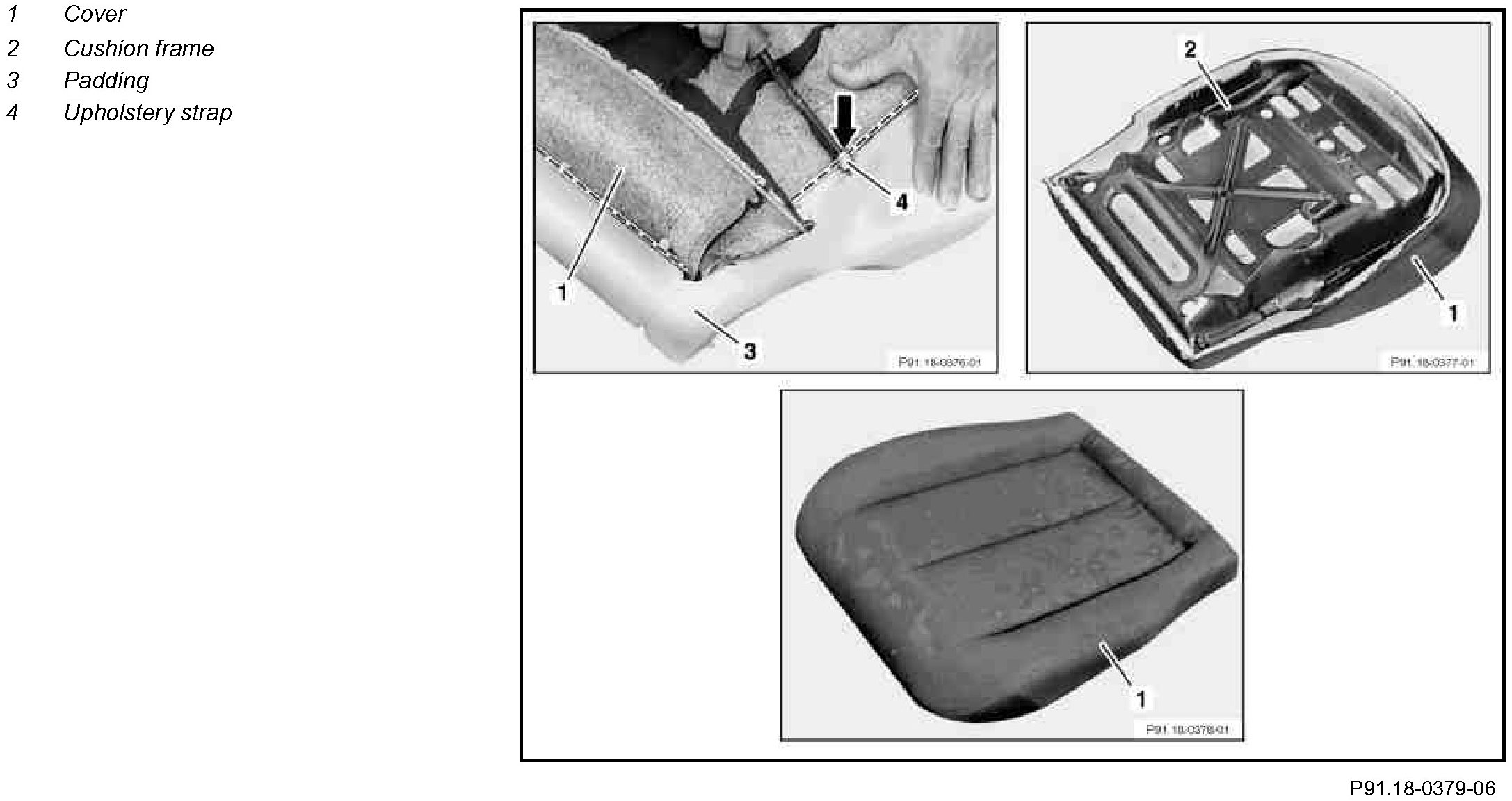

Component Identification:

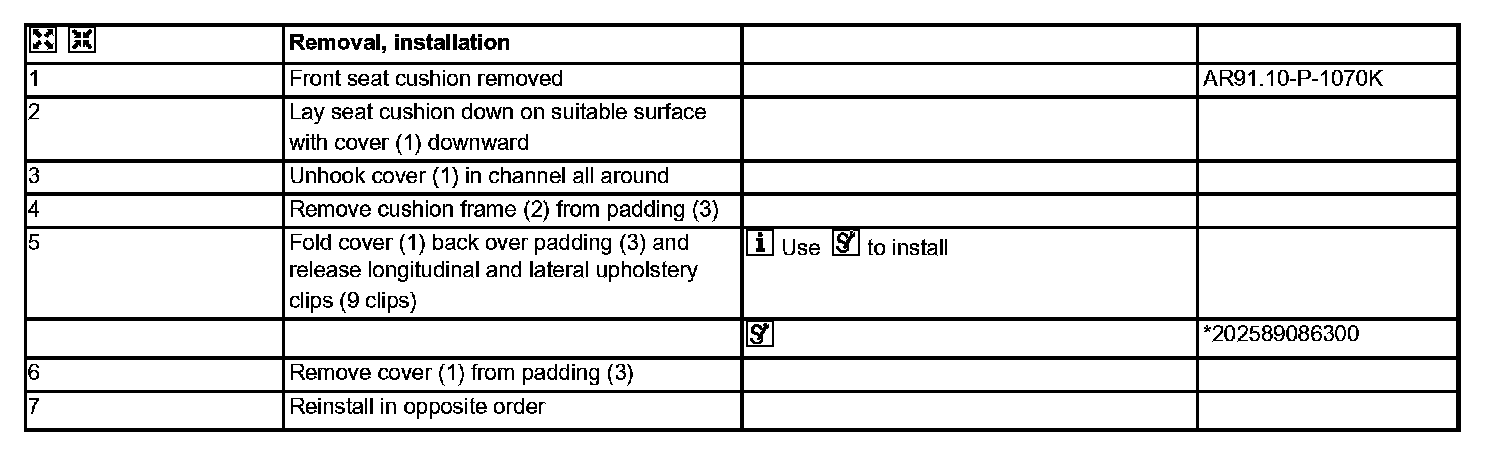

Steps 1 - 7:

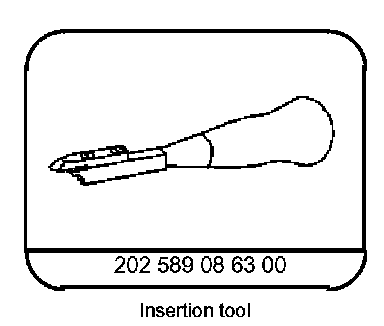

Special Tools:
