Home >> Mercedes Benz >> 1998 >> CLK 320 (208.365) V6-3.2L (112.940) >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Cover >> Service and Repair >> Procedures >> Remove/Install Cover on Front Seat Cushion

Remove/Install Cover on Front Seat Cushion

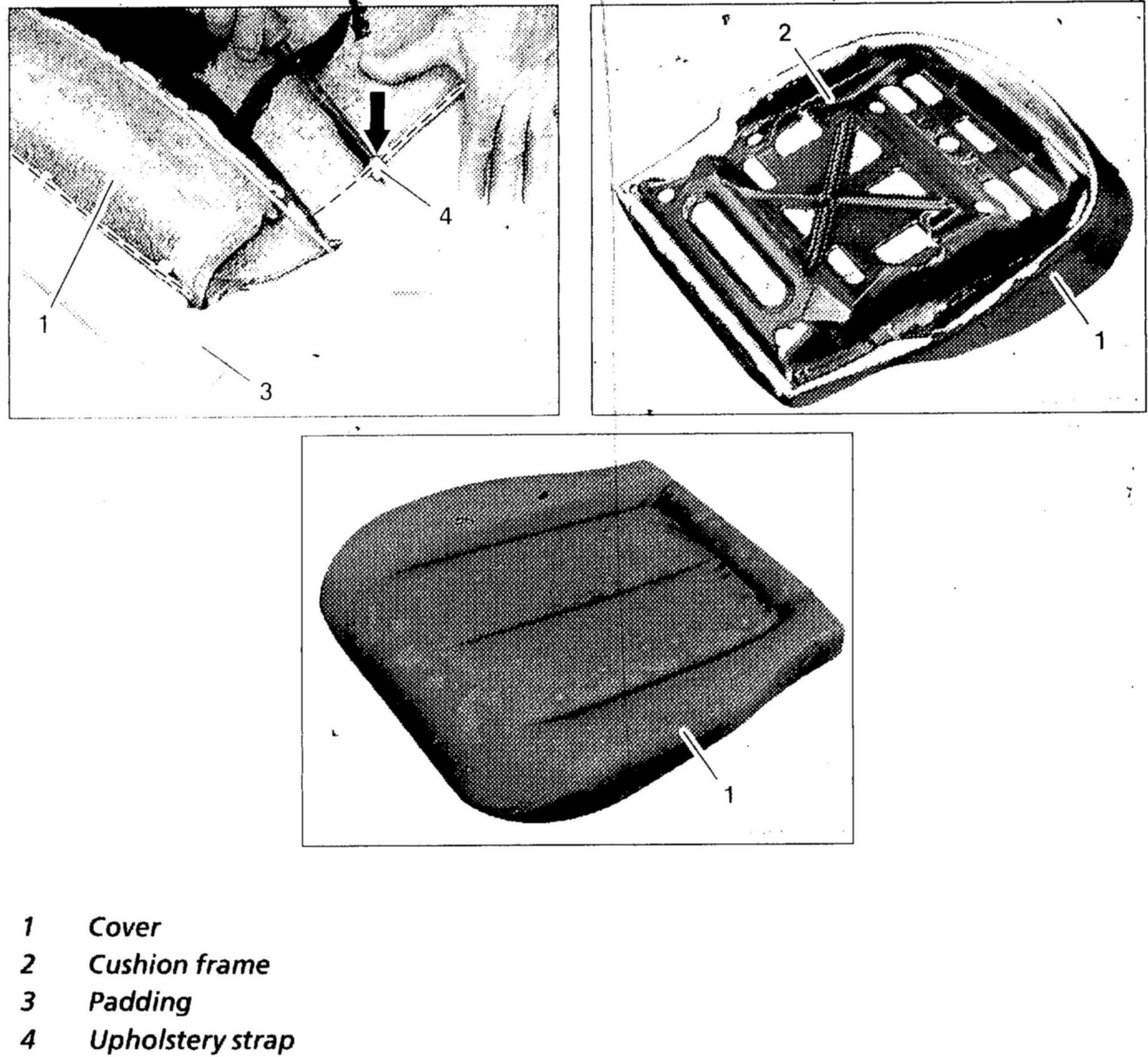

Component Identification

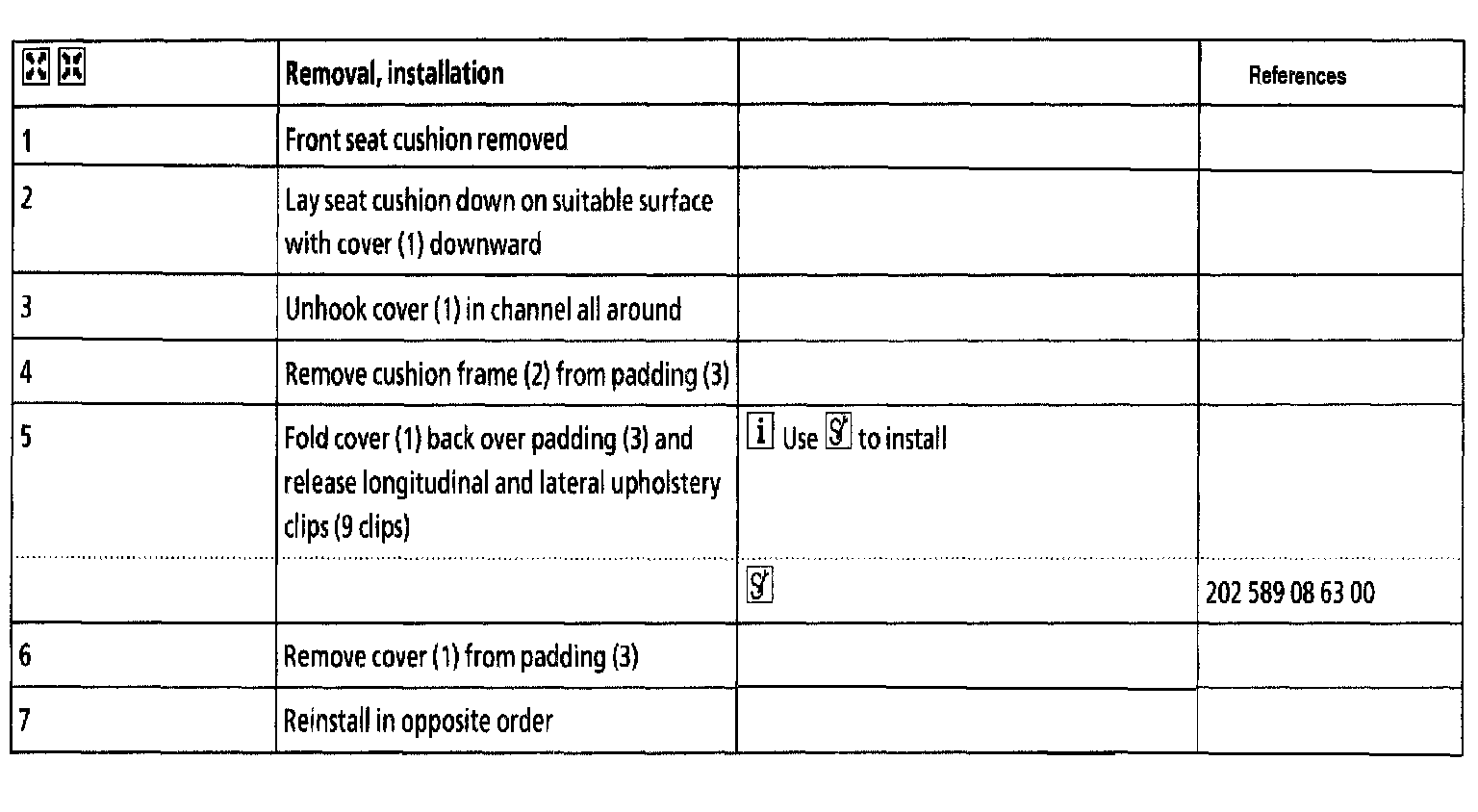

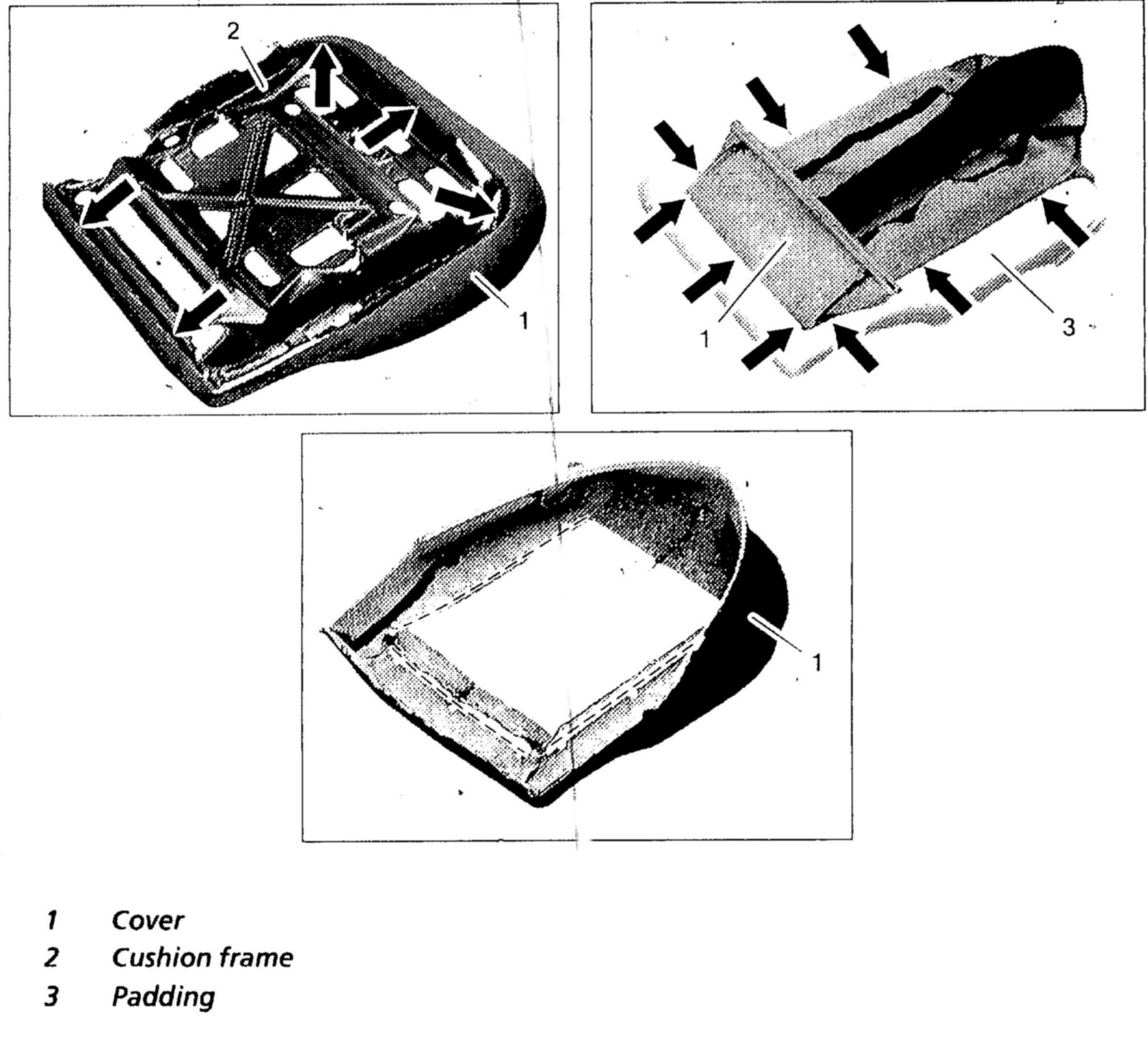

Removal, installation
