AR91.25-P-1770K Remove/Install Multi-Contour Seat Air Cushions



AR91.25-P-1770K Removing And Installing Multi-contour Seat Air Cushions
- with CODE (404a) Left multi-contour seat
- with CODE (405a) Right multi-contour seat


Component Identification:

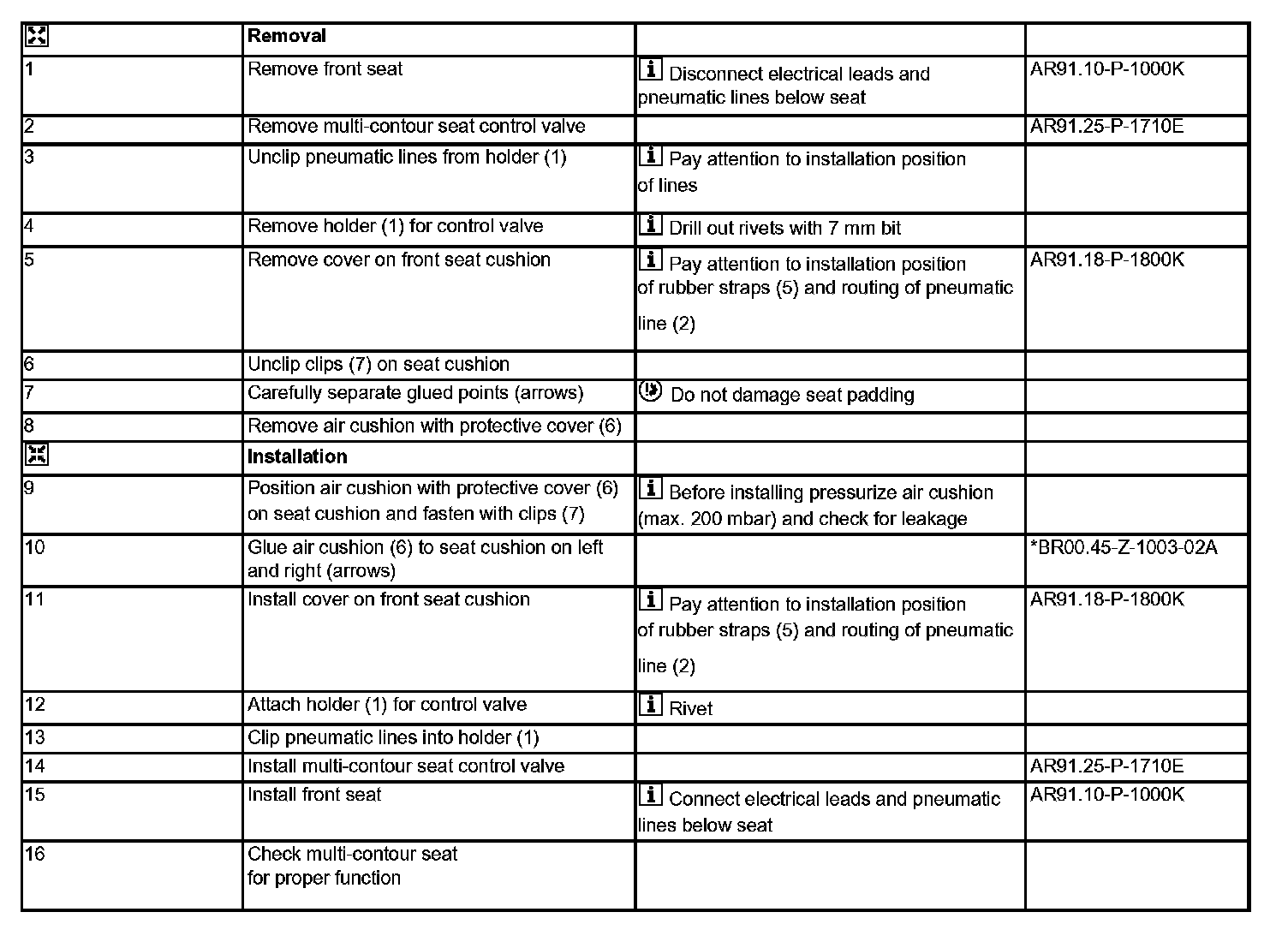

Steps 1 - 16:

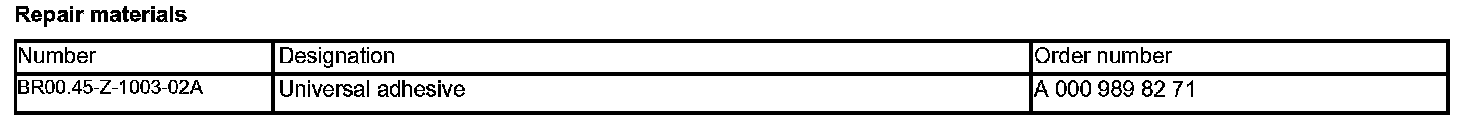

Repair Materials:
