AR91.25-P-1740K Remove/Install Air Cushions In Multi-Contour Backrest



AR91.25-P-1740K Removing And Installing Air Cushions In Multi-contour Backrest
- with CODE (404a) Left multi-contour seat
- with CODE (405a) Right multi-contour seat

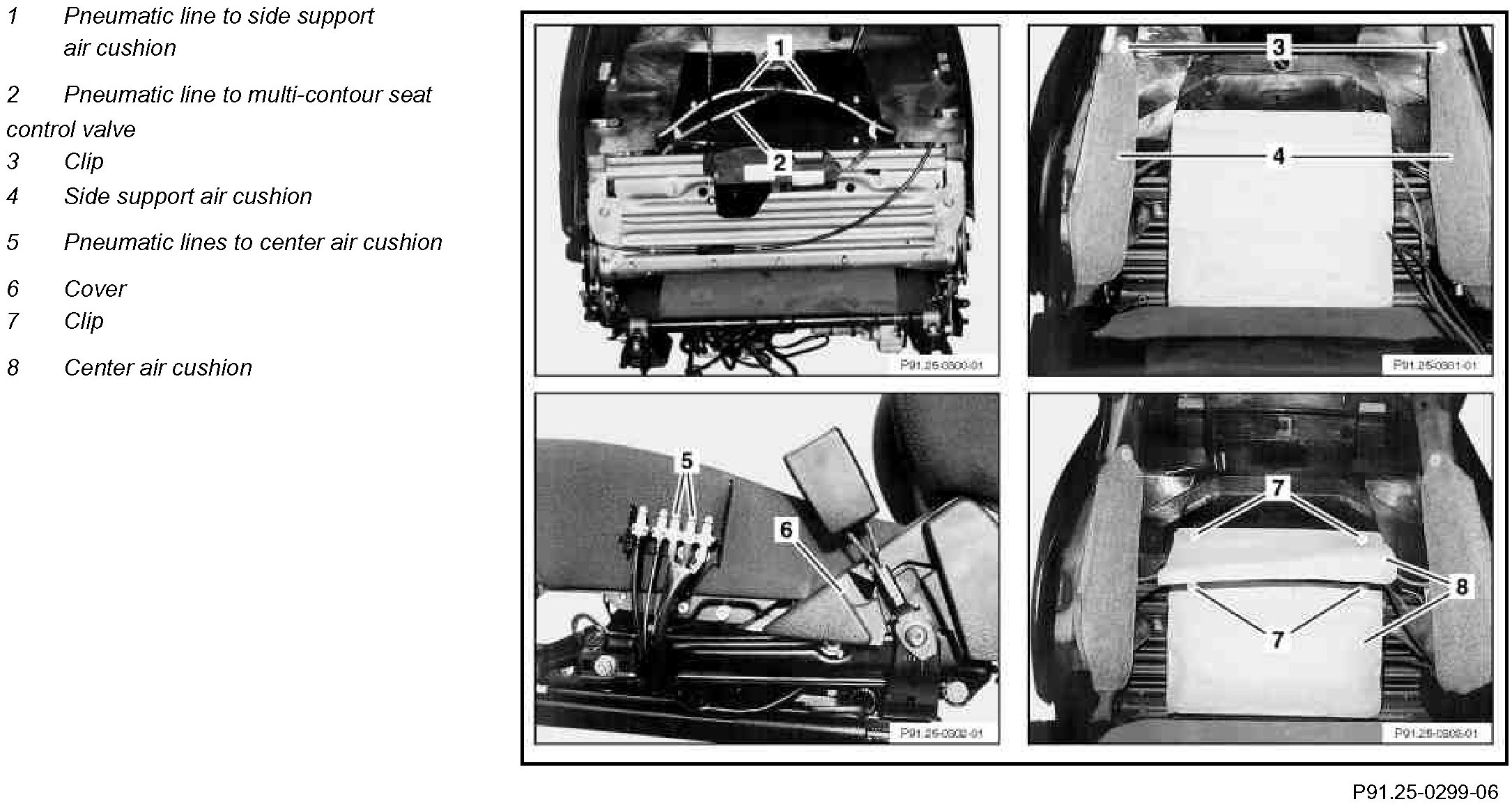

Component Identification:

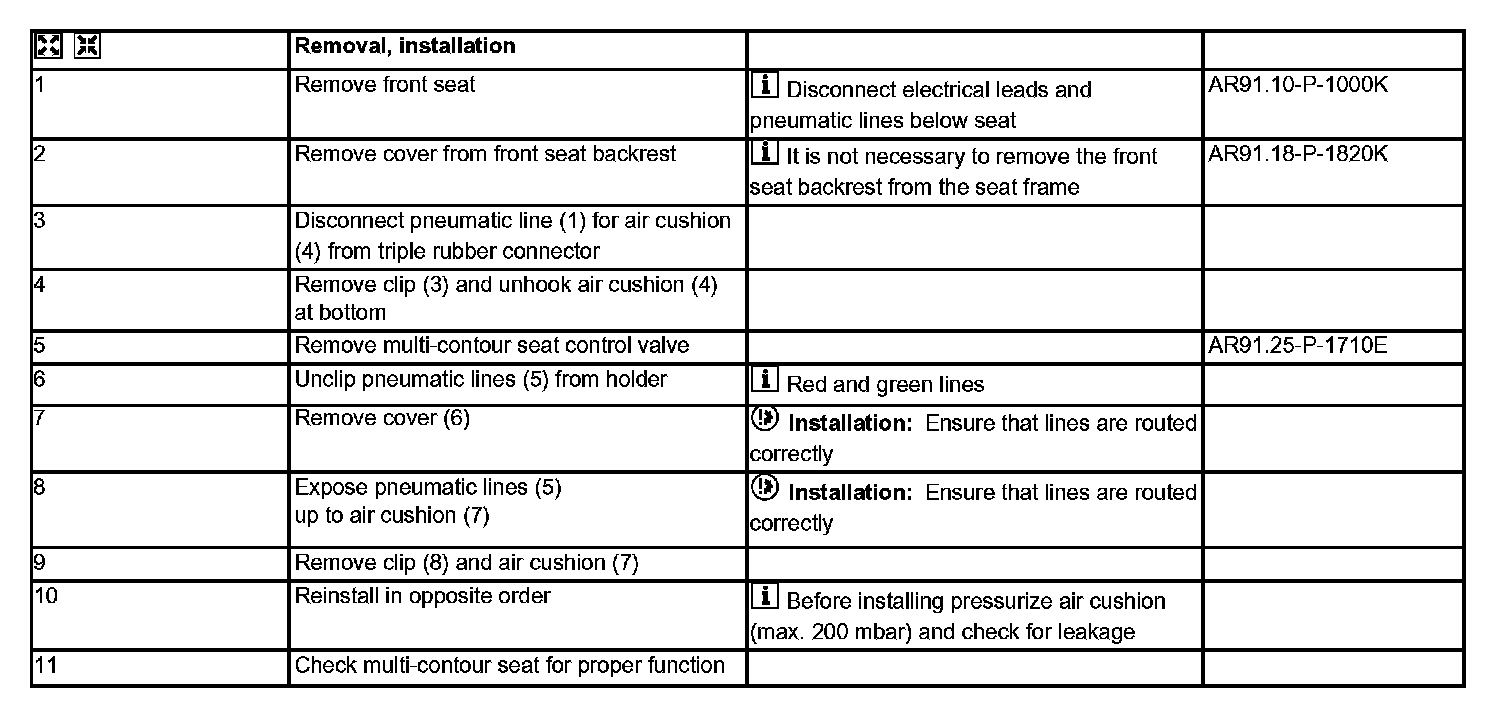

Steps 1 - 11:
