Removal and Replacement
AR91.25-P-1650K Removing And Installing Pressure Supply Reservoir For Multi-Contour Backrest
- with CODE (404a) Left multi-contour seat
- with CODE (405a) Right multi-contour seat

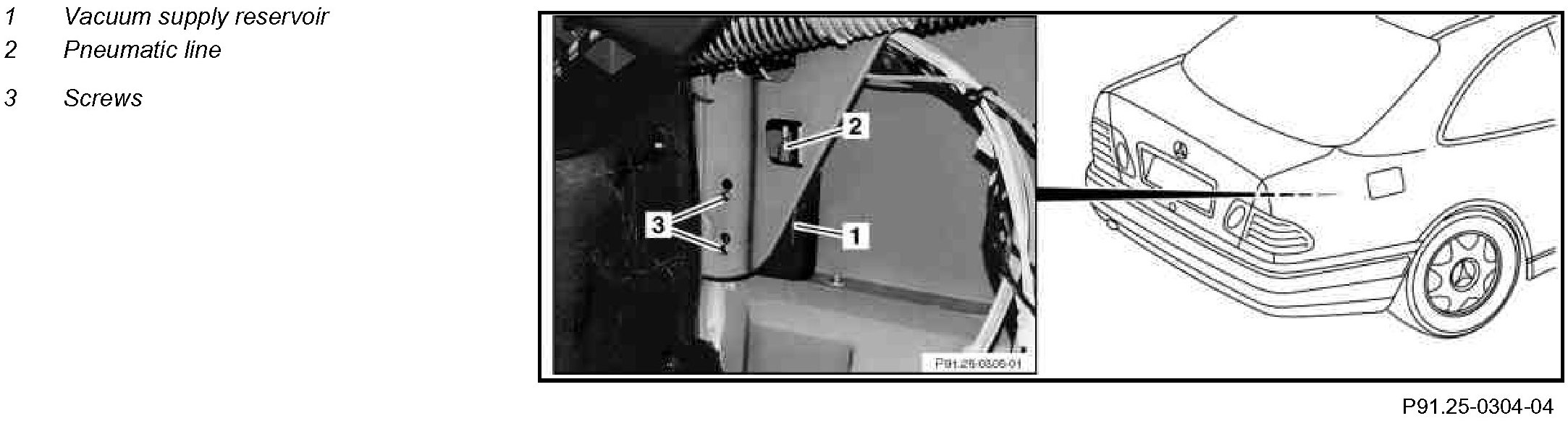

Component Identification:

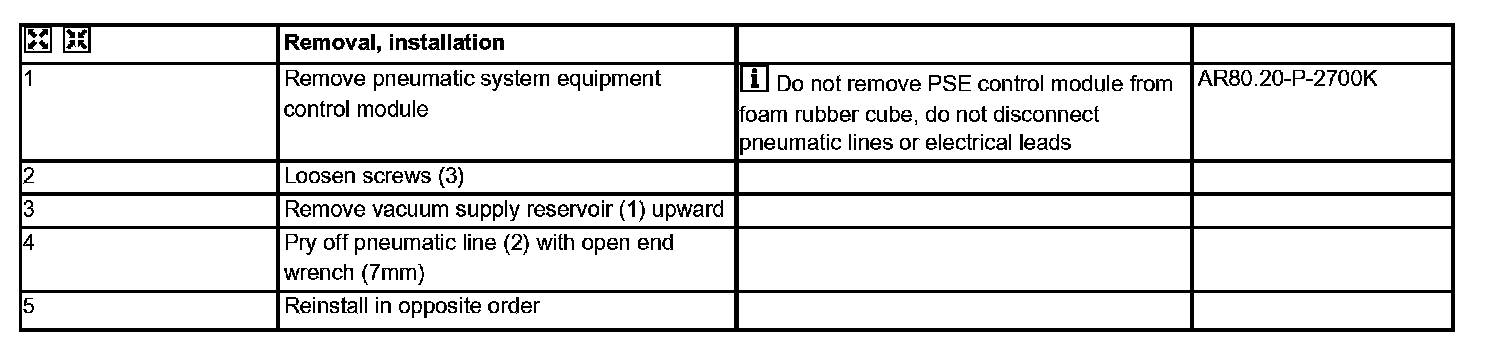

Steps 1 - 5:
AR91.25-P-1650K Removing And Installing Pressure Supply Reservoir For Multi-Contour Backrest
- with CODE (404a) Left multi-contour seat
- with CODE (405a) Right multi-contour seat
