AR91.29-P-1431K Remove/Install Front Seat Backrest

AR91.29-P-1431K Removing And Installing Front Seat Backrest
- with CODE (241) Memory circuit for left front power seat
- with CODE (242a) Memory circuit for right front power seat
- with CODE (275a) Memory package (driver's seat, steering column, mirror)

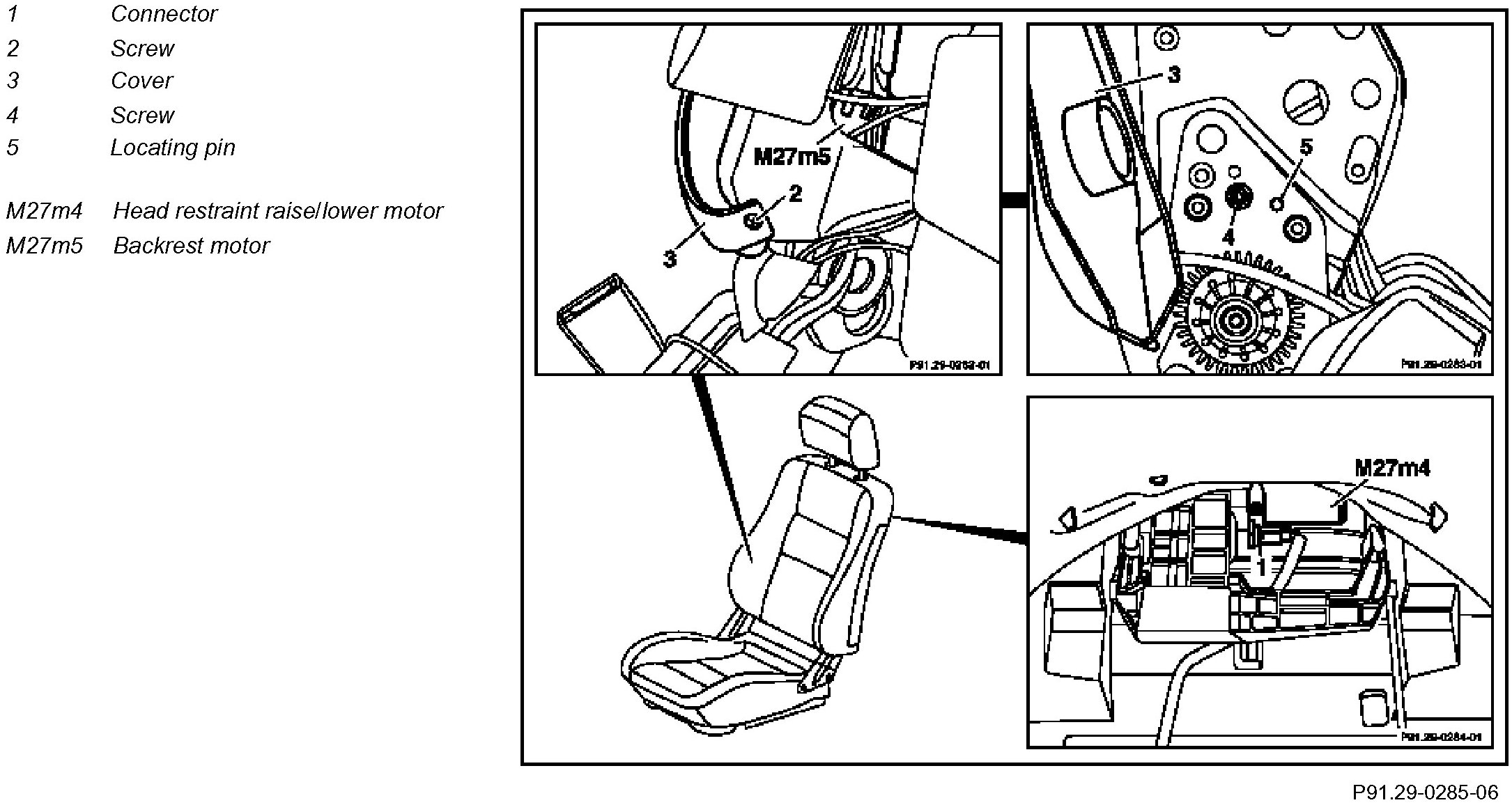

Component Identification:

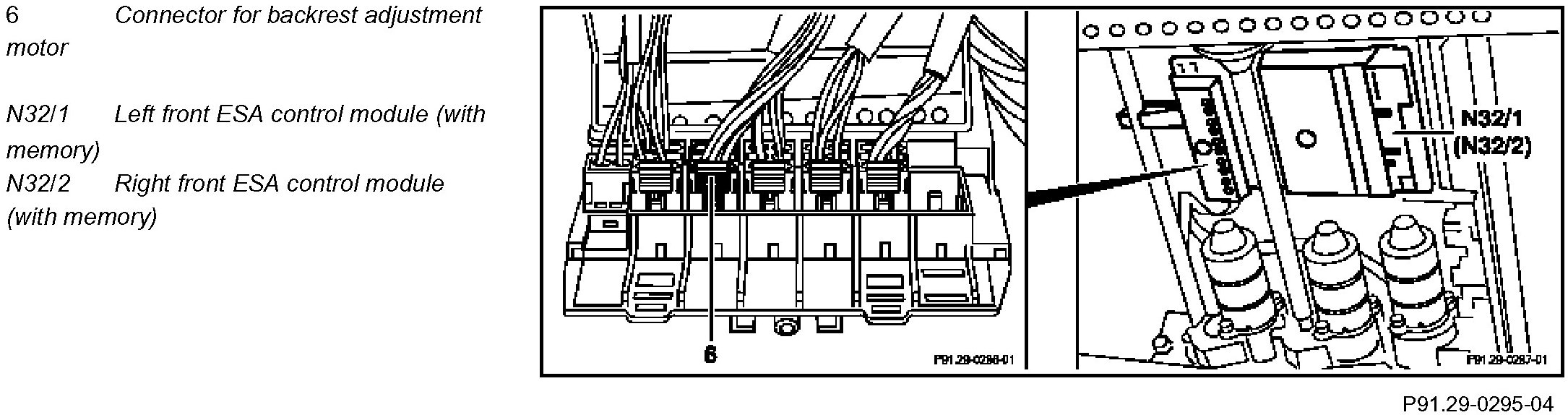

Component Identification:

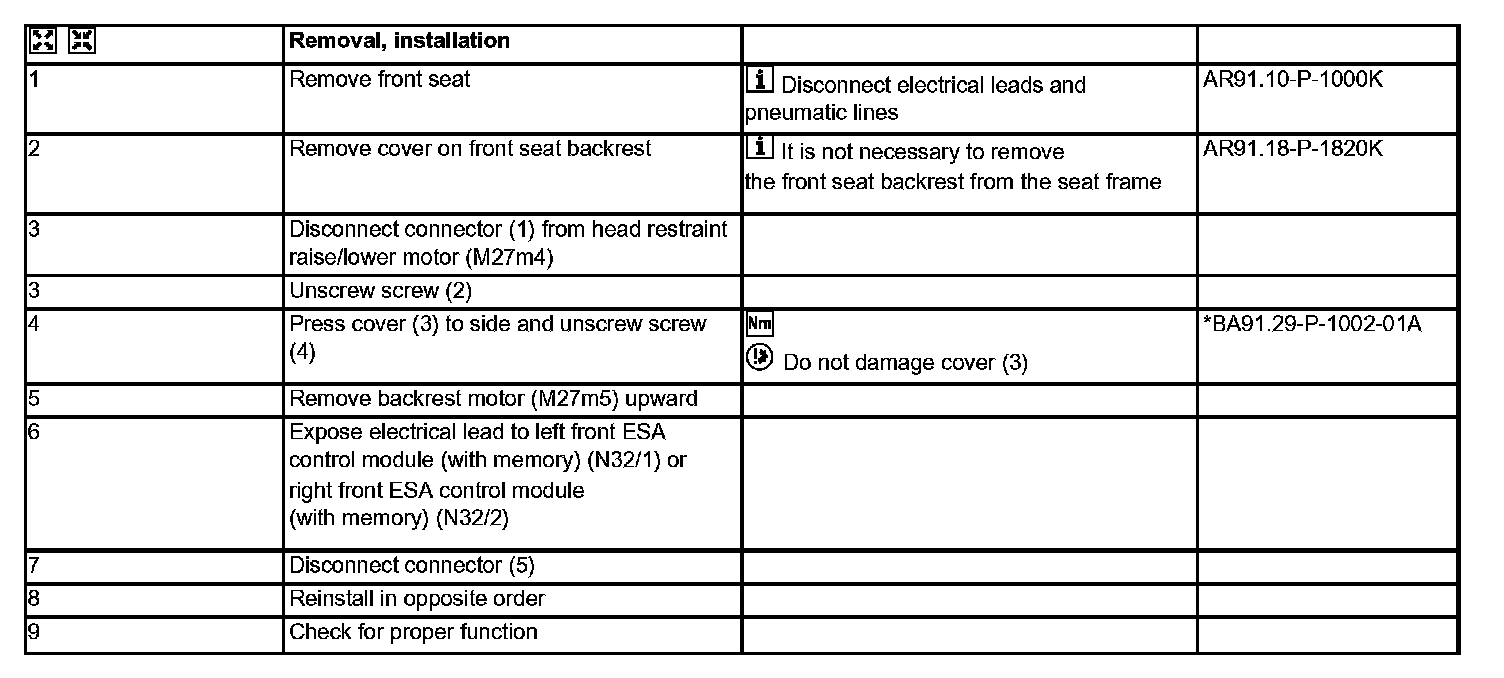

Steps 1 - 9:

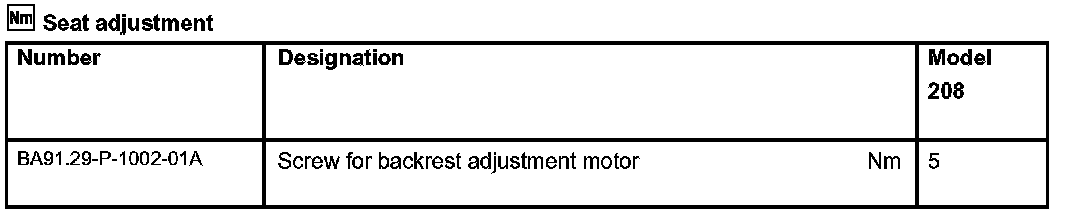

Seat Adjustment:
