AR91.12-P-1720K Remove/Install Folding Rear Backrest
AR91.12-P-1720K Remove/Install Folding Rear Backrest
AR91.12-P-1720K Removing And Installing Folding Rear Backrest

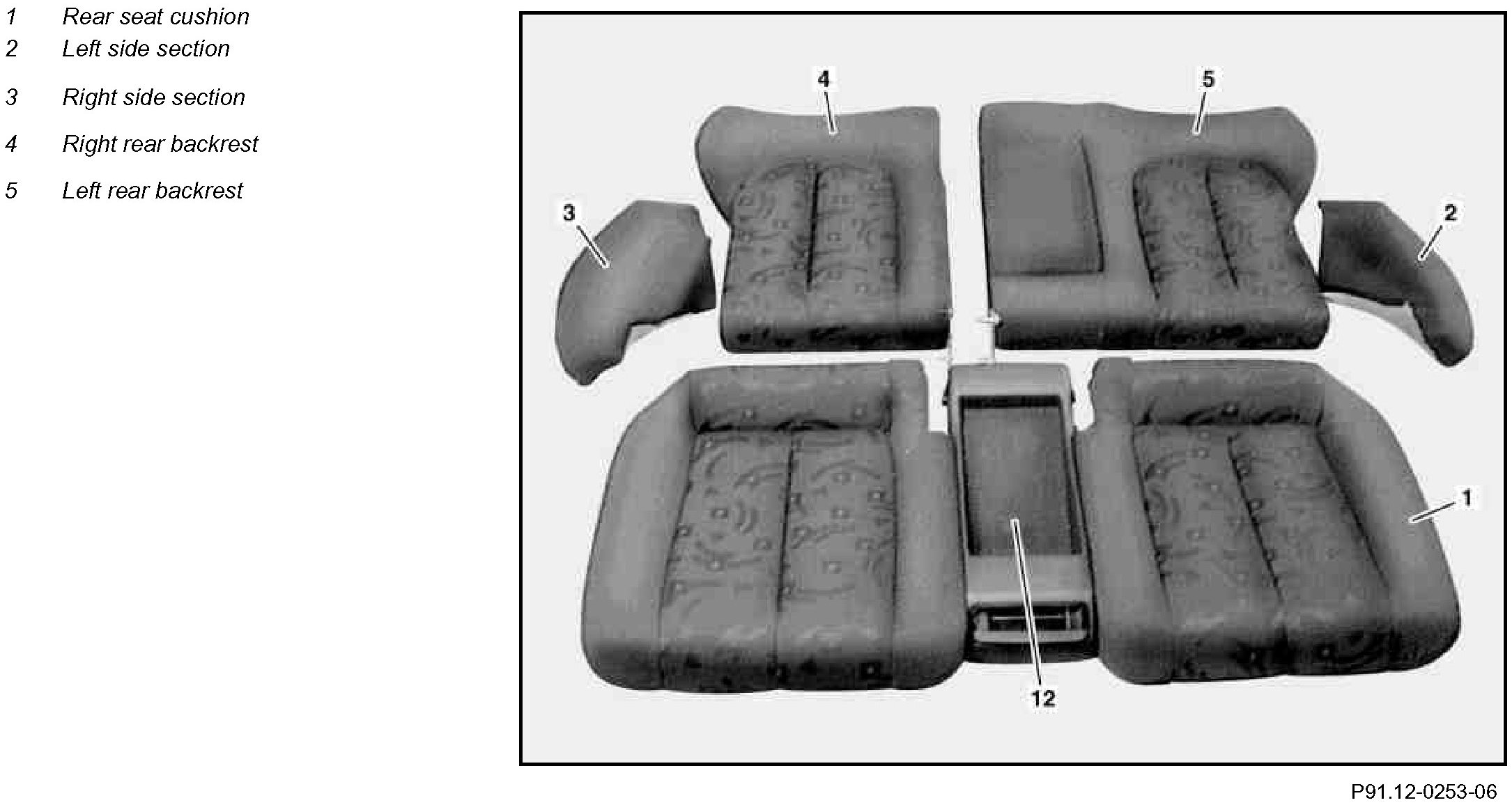

Component Identification:
Component Identification:

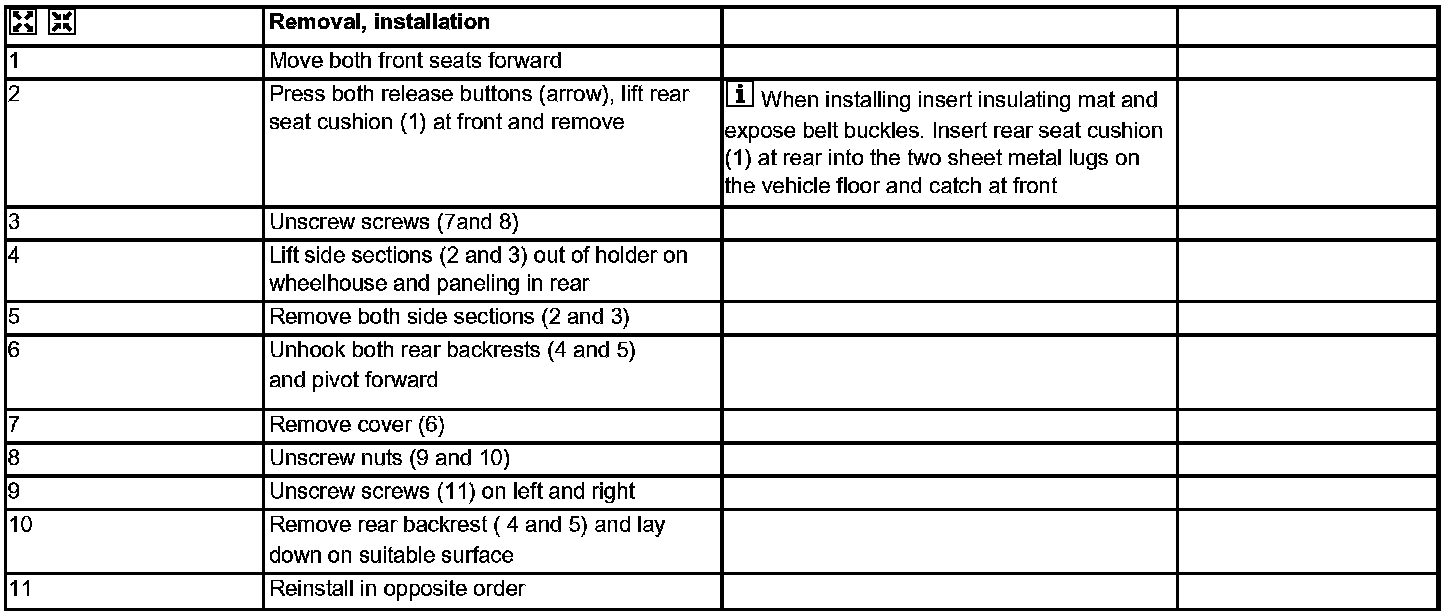

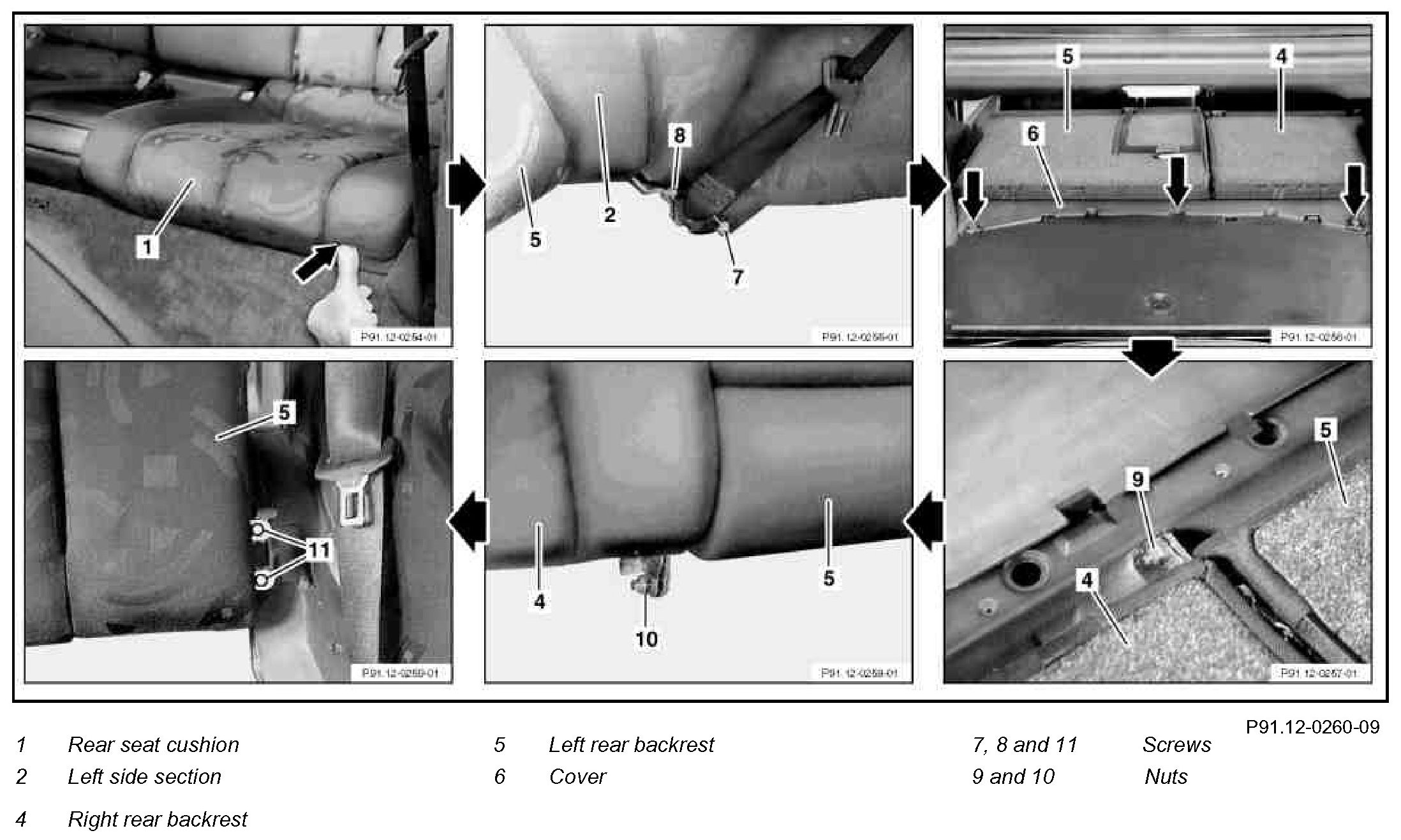

Steps 1 - 11:
