AR91.10-P-1480K Remove/Install Control Cable For Entrance Assist



AR91.10-P-1480K Removing And Installing Control Cable For Entrance Assist
- except CODE (241) Memory circuit for electrically adjustable left front seat
- except CODE (242a) Memory circuit for electrically adjustable right front seat
- except CODE (275a) Memory package (driver's seat, steering column, mirror)

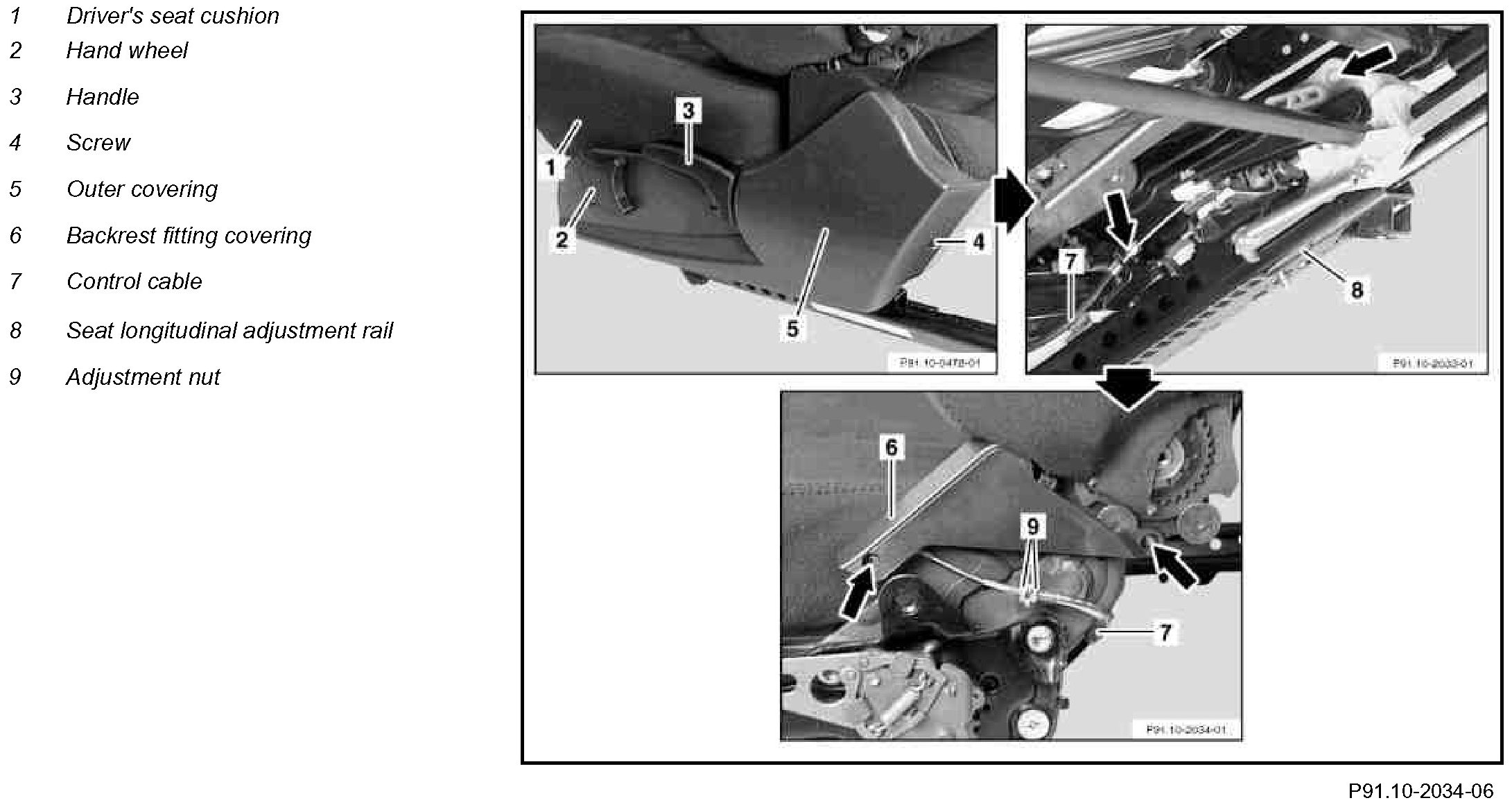

Component Identification:

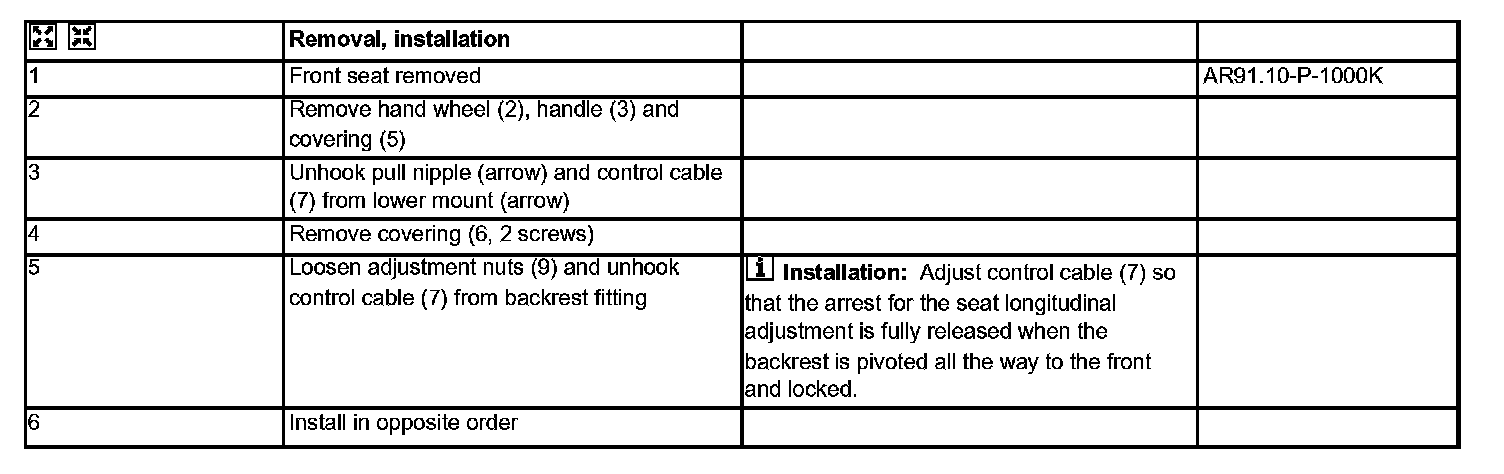

Steps 1 - 6:
