AR91.29-P-1433K Remove/Install Front Seat Backrest Release Motor



AR91.29-P-1433K Removing And Installing Front Seat Backrest Release Motor
- with CODE (241) Memory circuit for left front power seat
- with CODE (242a) Memory circuit for right front power seat
- with CODE (275a) Memory package (driver's seat, steering column, mirror)

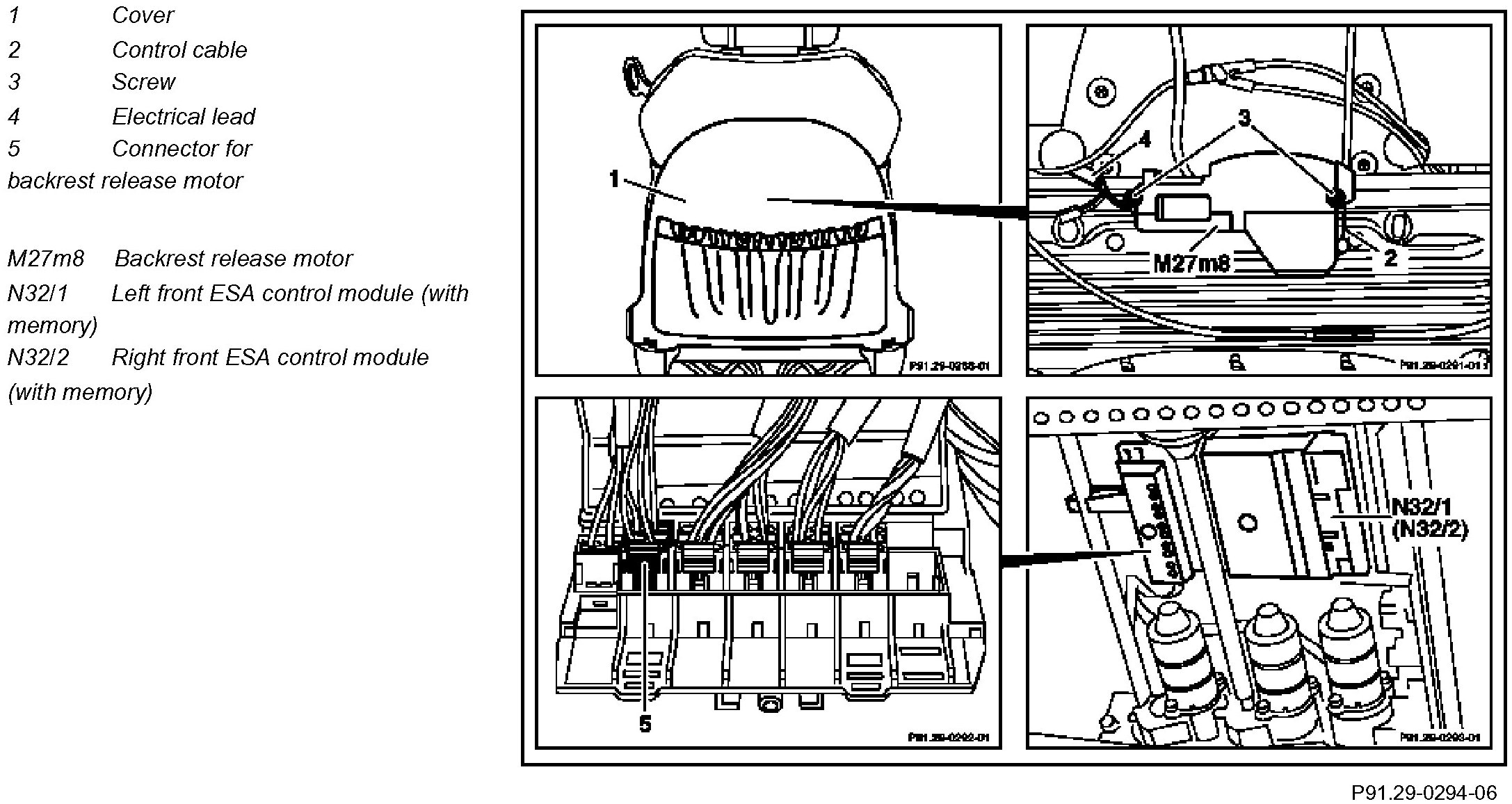

Component Identification:

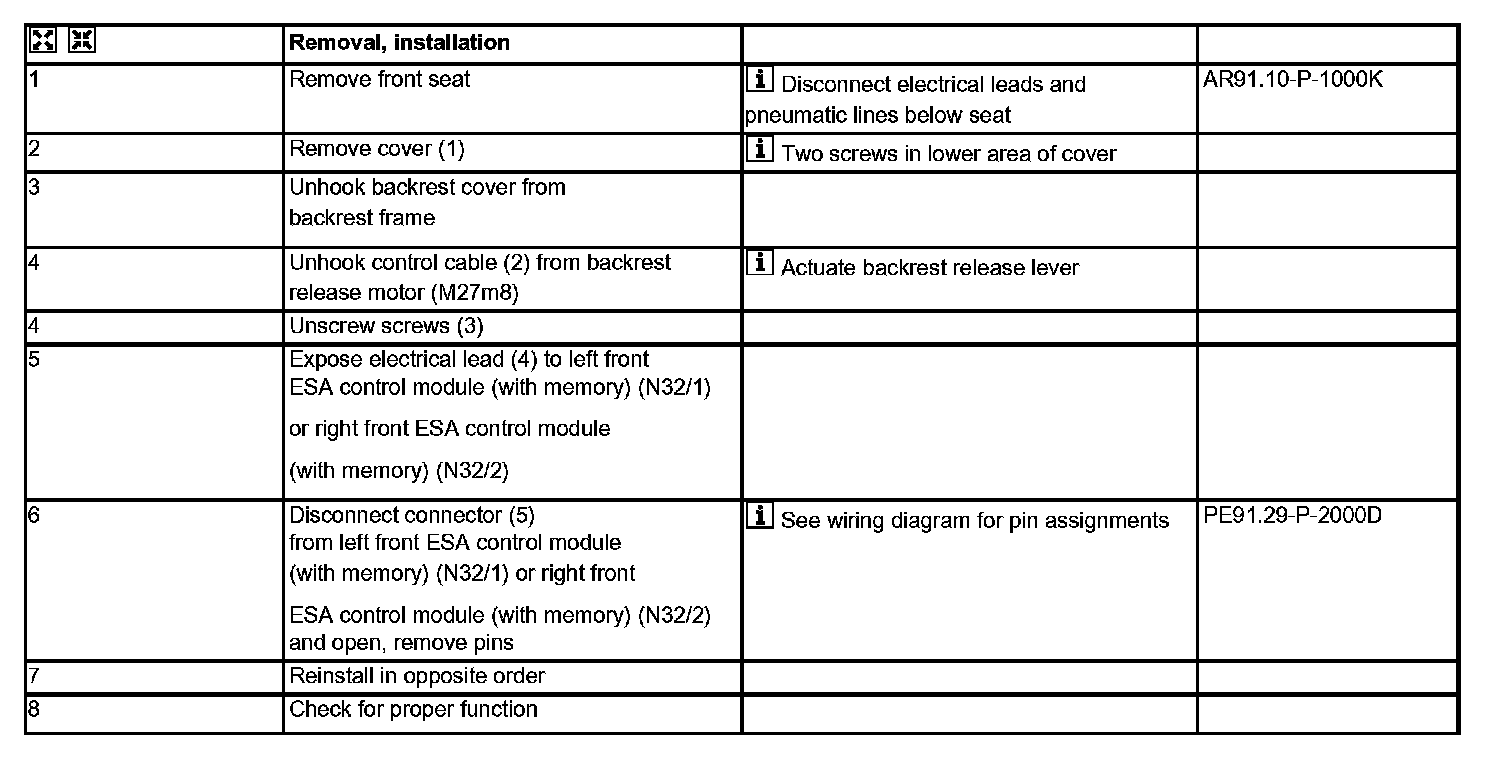

Steps 1 - 8:
