AR91.29-P-1420KA Remove/Install Front Power Seat Motor Group (Seat Cushion)



AR91.29-P-1420KA Removing And Installing Front Power Seat Motor Group (Seat Cushion)

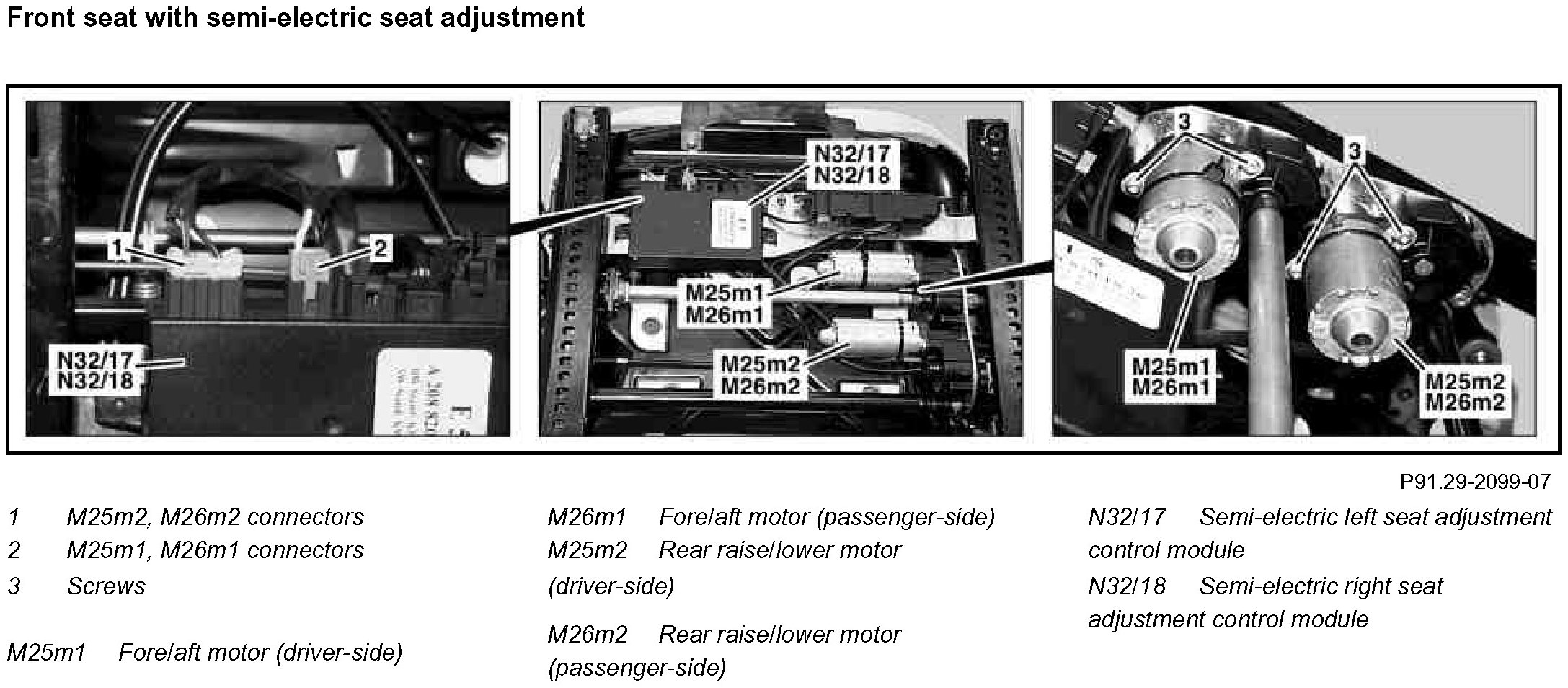

- Front seat with semi-electric seat adjustment


Component Identification:

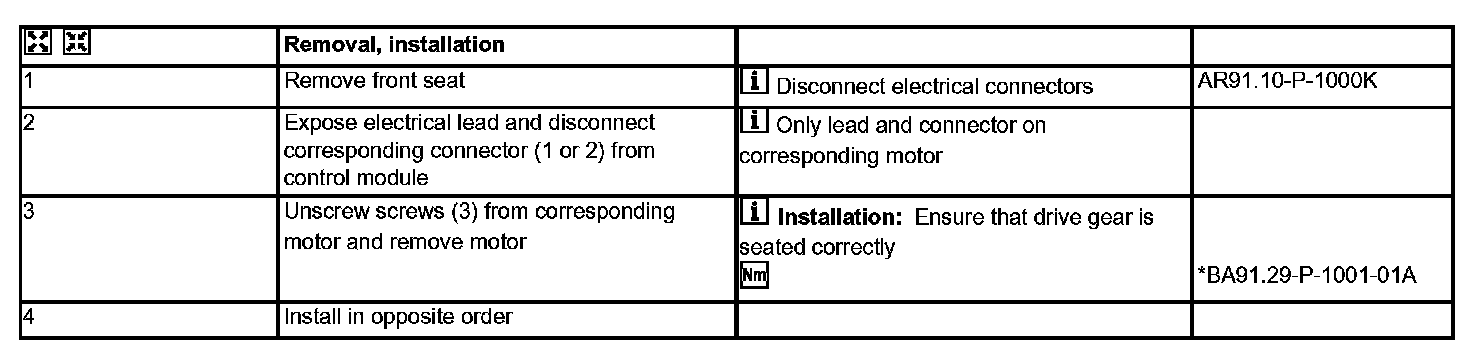

Steps 1 - 4:

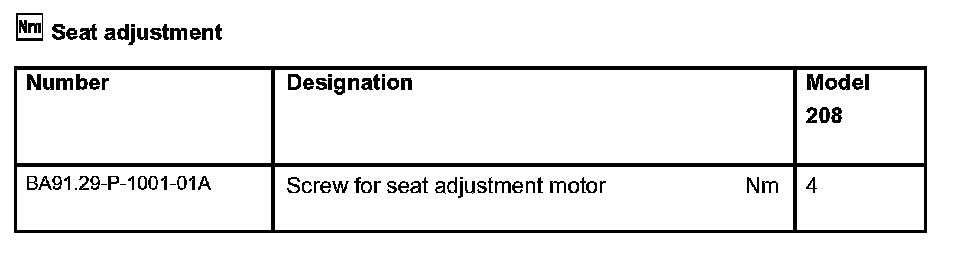

Seat Adjustment:
