AR91.29-P-1420K Remove/Install Front Power Seat Motor Group (Seat Cushion)

AR91.29-P-1420K Removing And Installing Front Power Seat Motor Group (Seat Cushion)
- with CODE (241) Memory circuit for left front power seat
- with CODE (242a) Memory circuit for right front power seat
- with CODE (275a) Memory package (driver's seat, steering column, mirror)

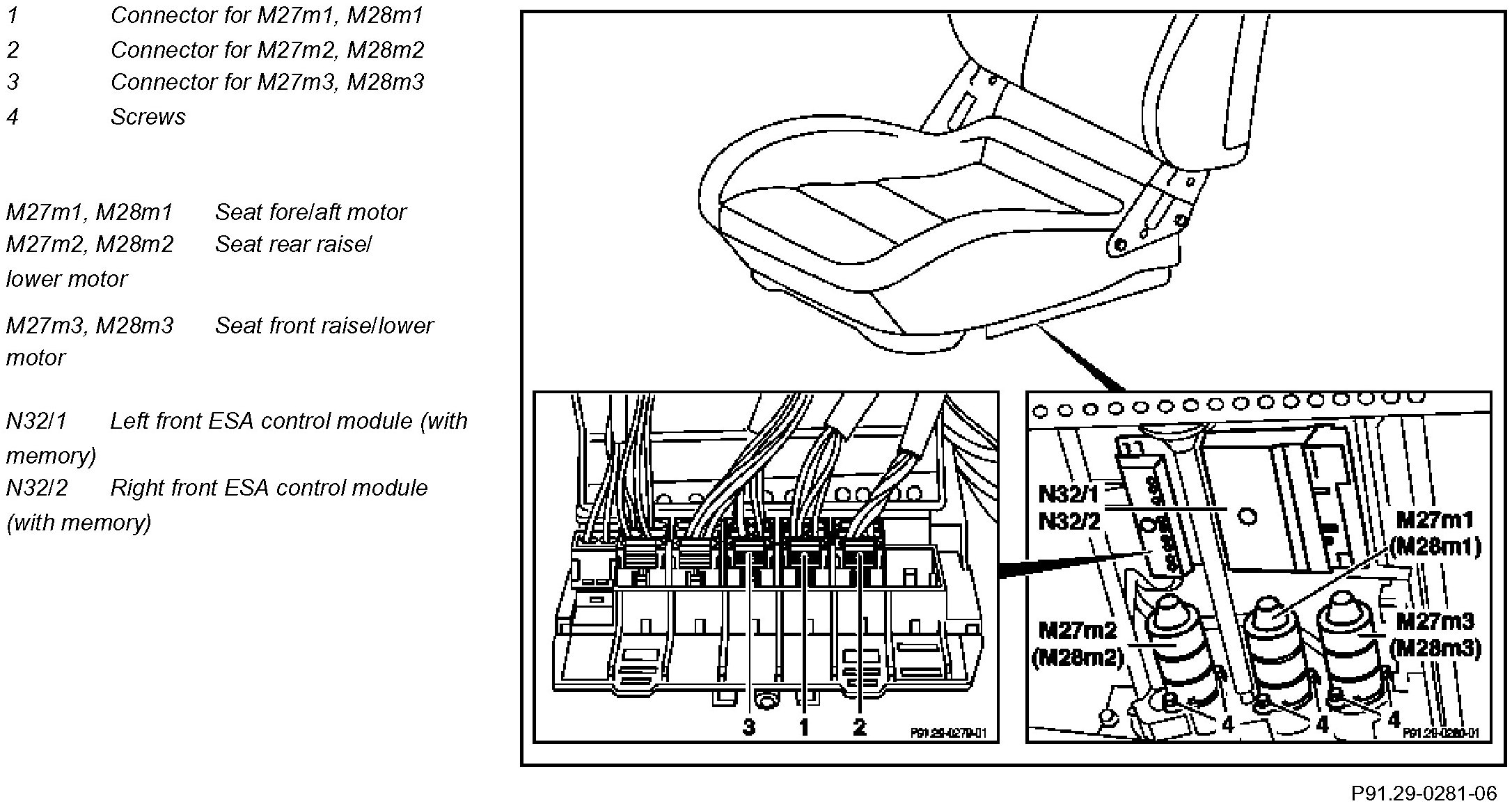

Component Identification:

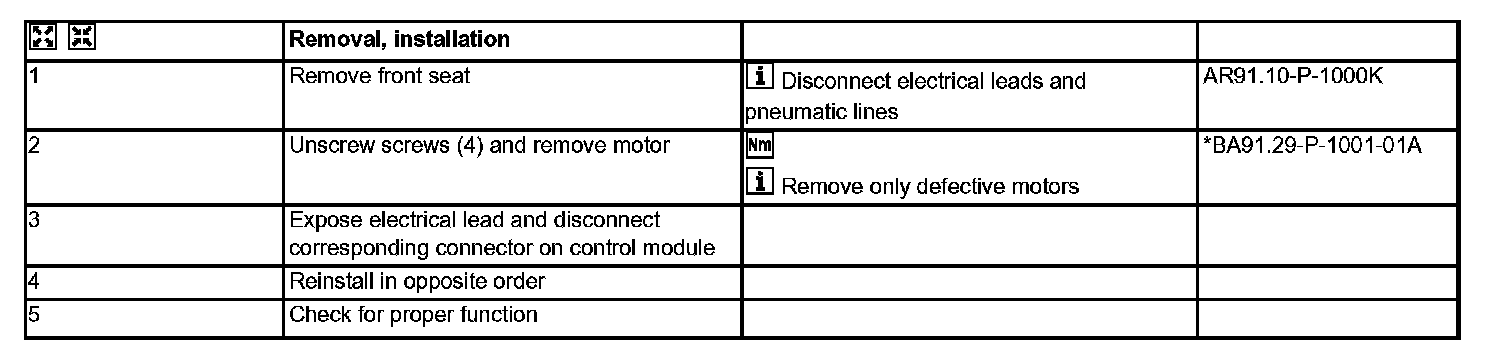

Steps 1 - 5:

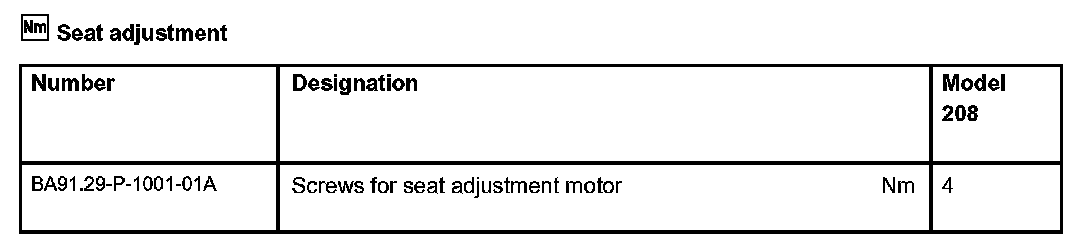

Seat Adjustment:
