Front Seat With Semi-Electric Seat Adjustment

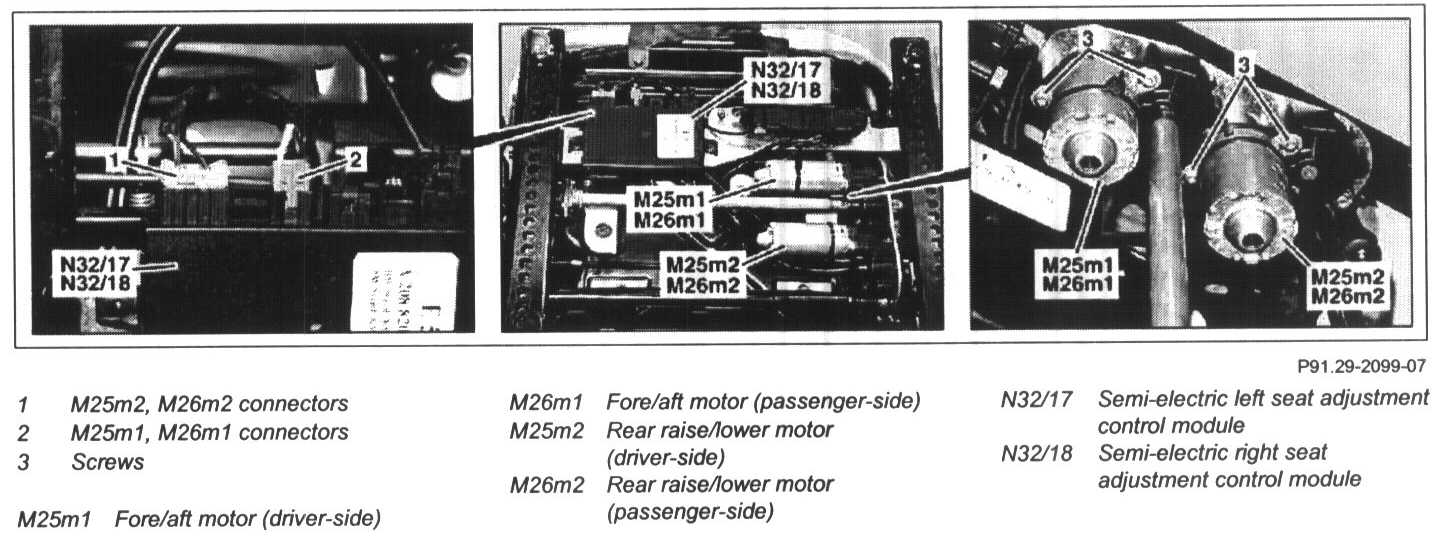

Removing And Installing Front Power Seat Motor Group (Seat Cushion)







1 Remove front seat

NOTE: Disconnect electrical connectors

2 Expose electrical lead and disconnect corresponding connector (1 or 2) from control module

NOTE: Only lead and connector on corresponding motor

3 Unscrew screws (3) from corresponding motor and remove motor

NOTE: Installation: Ensure that drive gear is seated correctly

Screw for seat adjustment motor - 4 N.m

4 Install in opposite order
