Front Seat With Electrically Adjustable Front Seats With Memory

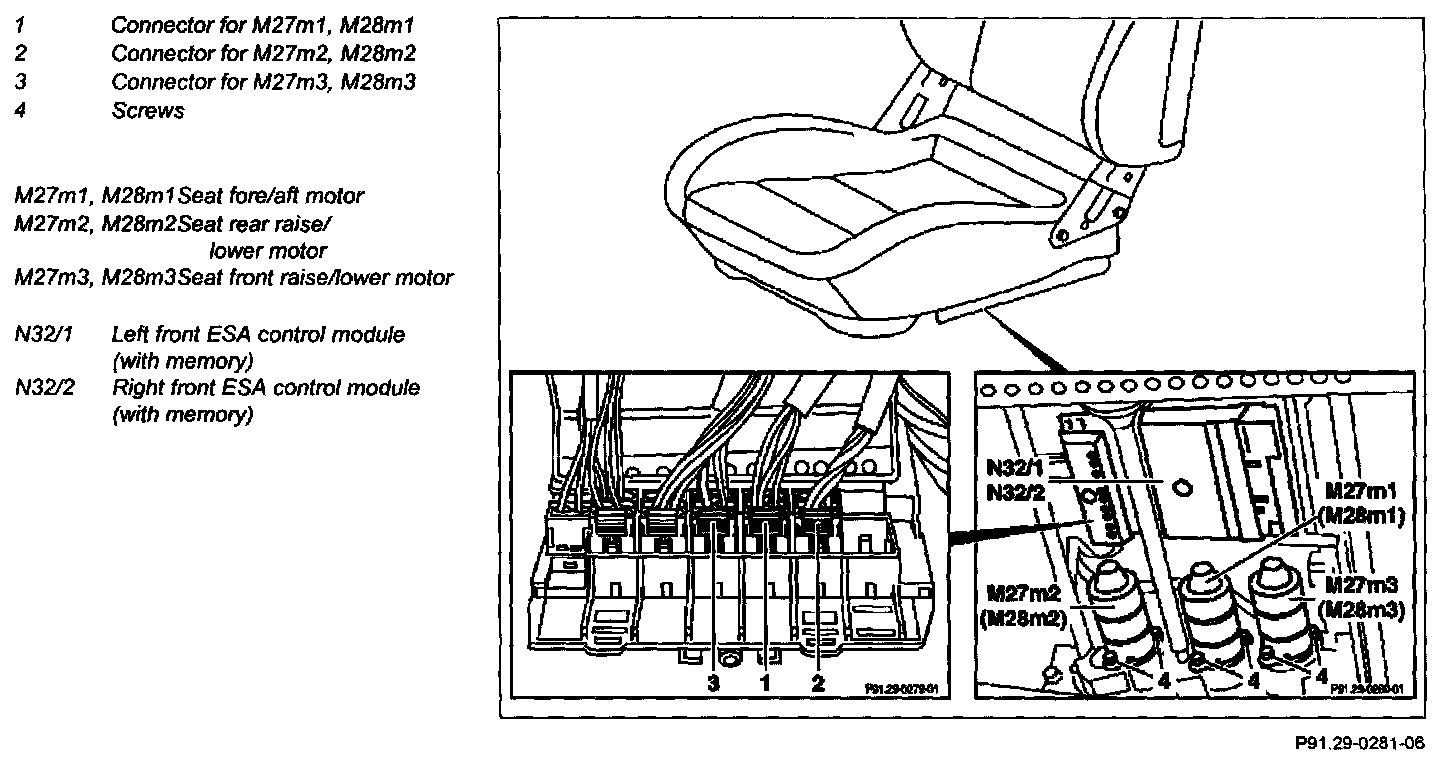

Removing And Installing Front Power Seat Motor Group (Seat Cushion)







1 Remove front seat

NOTE: Disconnect electrical leads and pneumatic lines

2 Unscrew screws (4) and remove motor

Screw for seat adjustment motor - 4 N.m

NOTE: Remove only defective motors

3 Expose electrical lead and disconnect corresponding connector on control module
4 Reinstall in opposite order
5 Check for proper function
