Electric Seat Adjustment (ESA)

Model 210 (except 210.081/281) as of March 1, 1997 with CODE (275a) Memory package (driver's seat, steering column, rearview mirrors)
Model 208 with CODE (275b) Memory package (driver's seat, rearview mirrors)

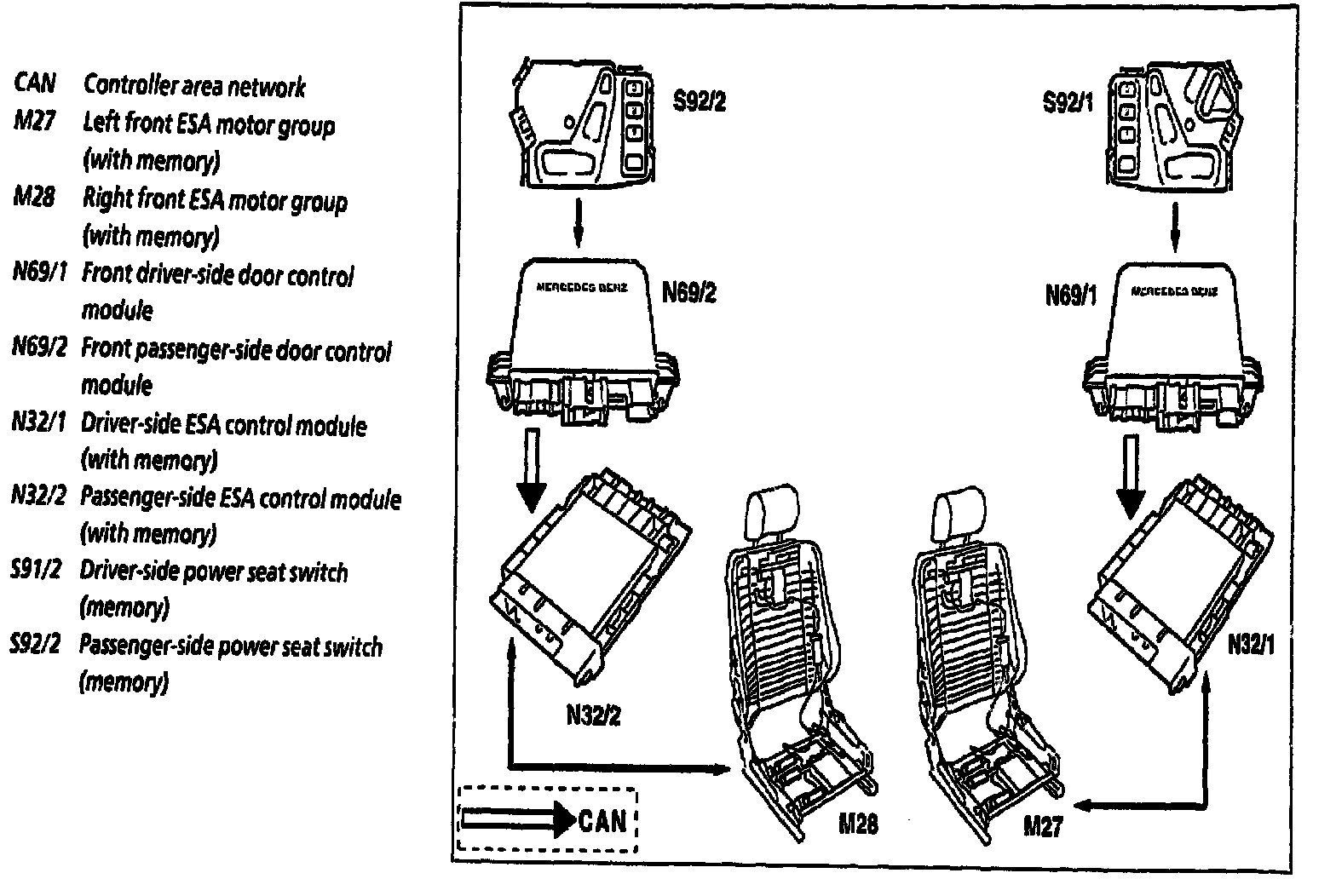

Interlinkage of components
Illustrated on model 210


The positions of the front left and right seats can be adjusted with the associated adjustment switches in the front doors. The following can be adjusted separately:
- Head restraint height
- Inclination of backrest
- Height of rear half of seat
- Height of front half of seat
- Longitudinal position of entire seat

Three complete settings for the seat position can be stored and recalled with the three memory buttons.

Model 208 only:
The easy entry feature facilitates entry into the rear of the vehicle.
