Sunroof / Moonroof Weatherstrip: Adjustments

AR77.20-P-1360K Adjusting Seal on Sliding/Pop-Up Roof Cover







Adjustment

NOTE: If wind noises are present the seal (1) can be adjusted in relation to the sliding roof opening

1 Check adjustment of sliding/pop-up roof cover
2 Modify long wedge
3 Open sliding/pop-up roof cover or move to pop-up position

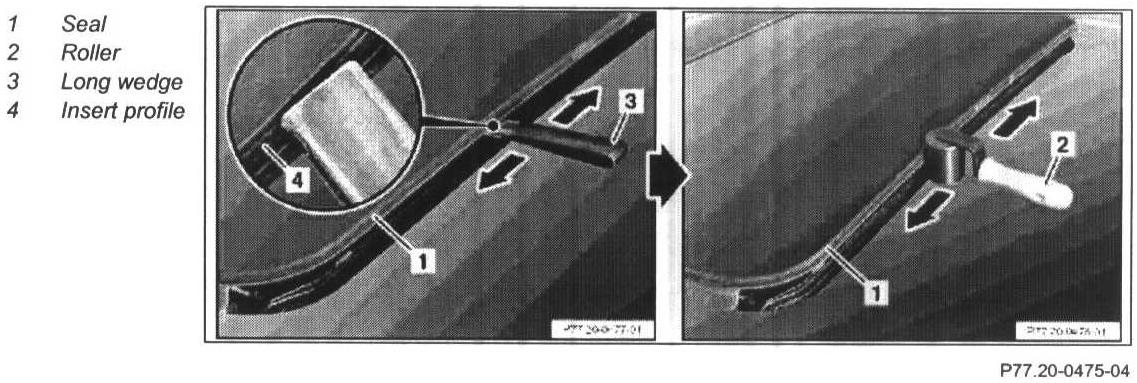

4 Adjust seal (1) with long wedge (3) or with roller (2)

NOTE:
- To reduce gap: Move seal (1) with long wedge (3) under pressure uniformly from bottom to top in joint between insert profile (4) and seal (1). Move long wedge at an angle to joint
- To increase gap: Move roller (2) with little pressure on seal (1)

See "Special Tools" given below.

- To increase in area of radius: Use a suitably rounded plastic wedge

Special Tools

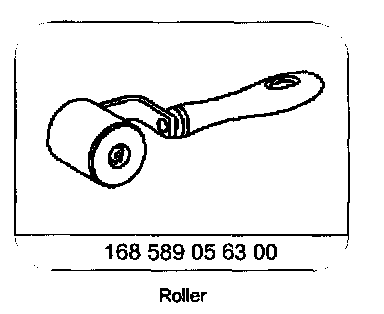

Roller, P/N # 168 589 05 63 00:
