Sunroof / Moonroof Drain: Service and Repair

AR77.20-P-2600K Remove/Install Water Drain Trough on Sliding/Pop-Up Roof







1 Move sliding/pop-up roof to pop-up position and slide lining toward rear

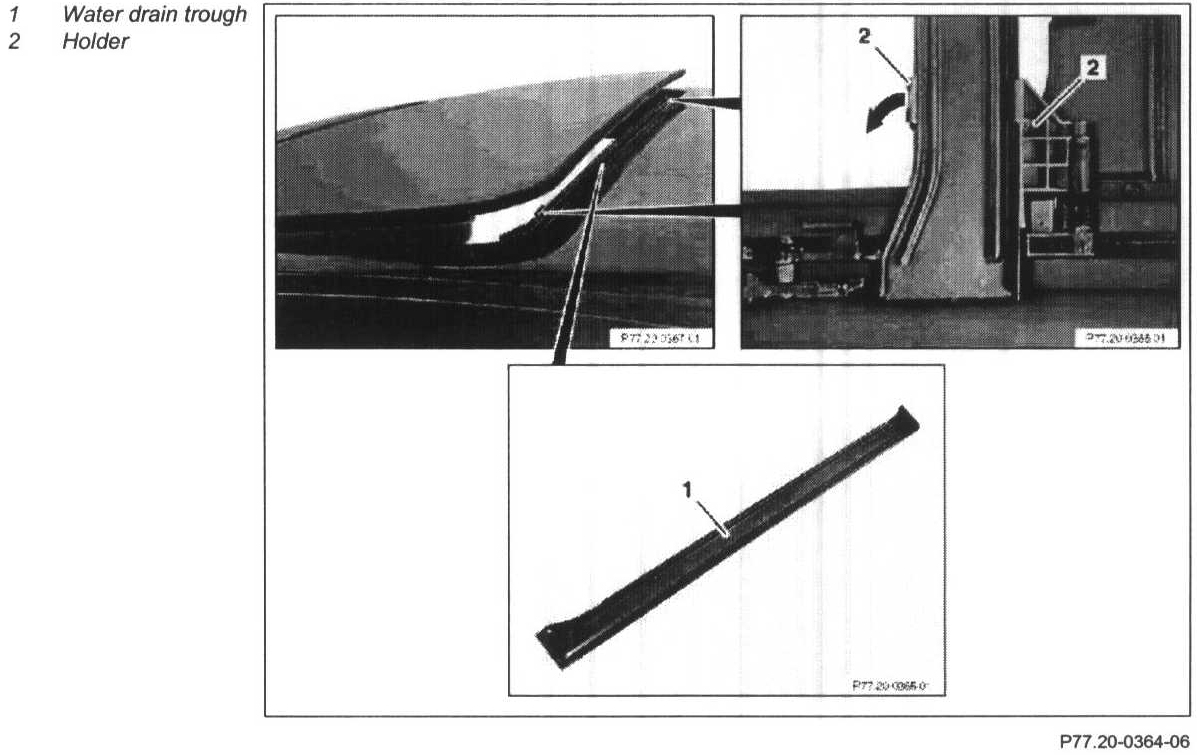

2 Unclip water drain trough (1) from holder (2) from inside with water pump pliers and remove

NOTE: To remove press holder (2) down

3 Reinstall in opposite order
4 Check sliding/pop-up roof for proper function
