Sun Shade: Service and Repair



AR77.20-P-1000K Removing And Installing Sliding/pop-up Roof Cover

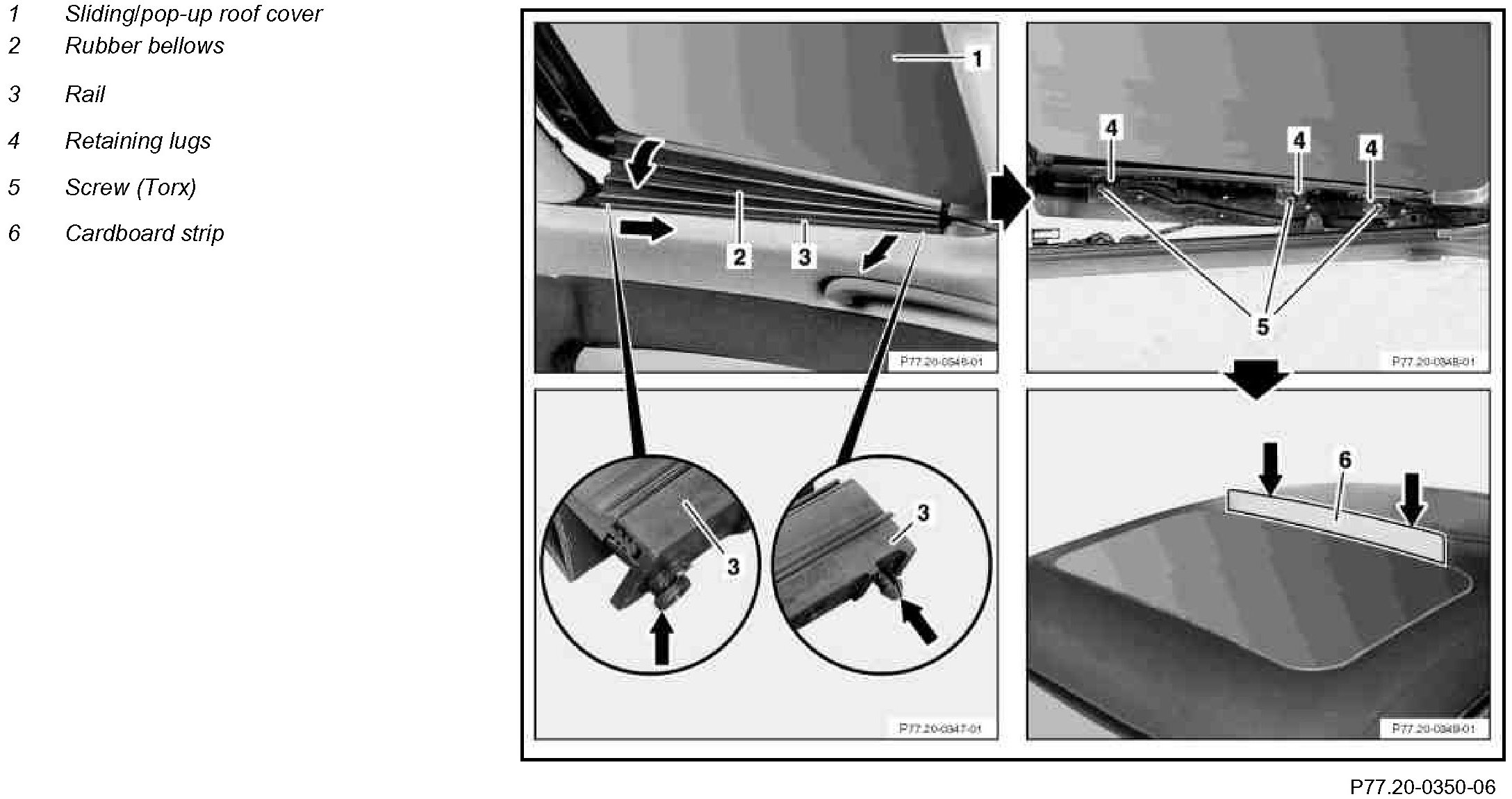

Component Identification:

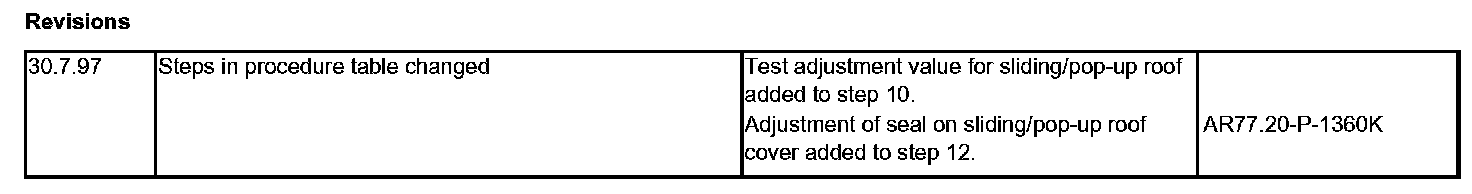

Revisions:

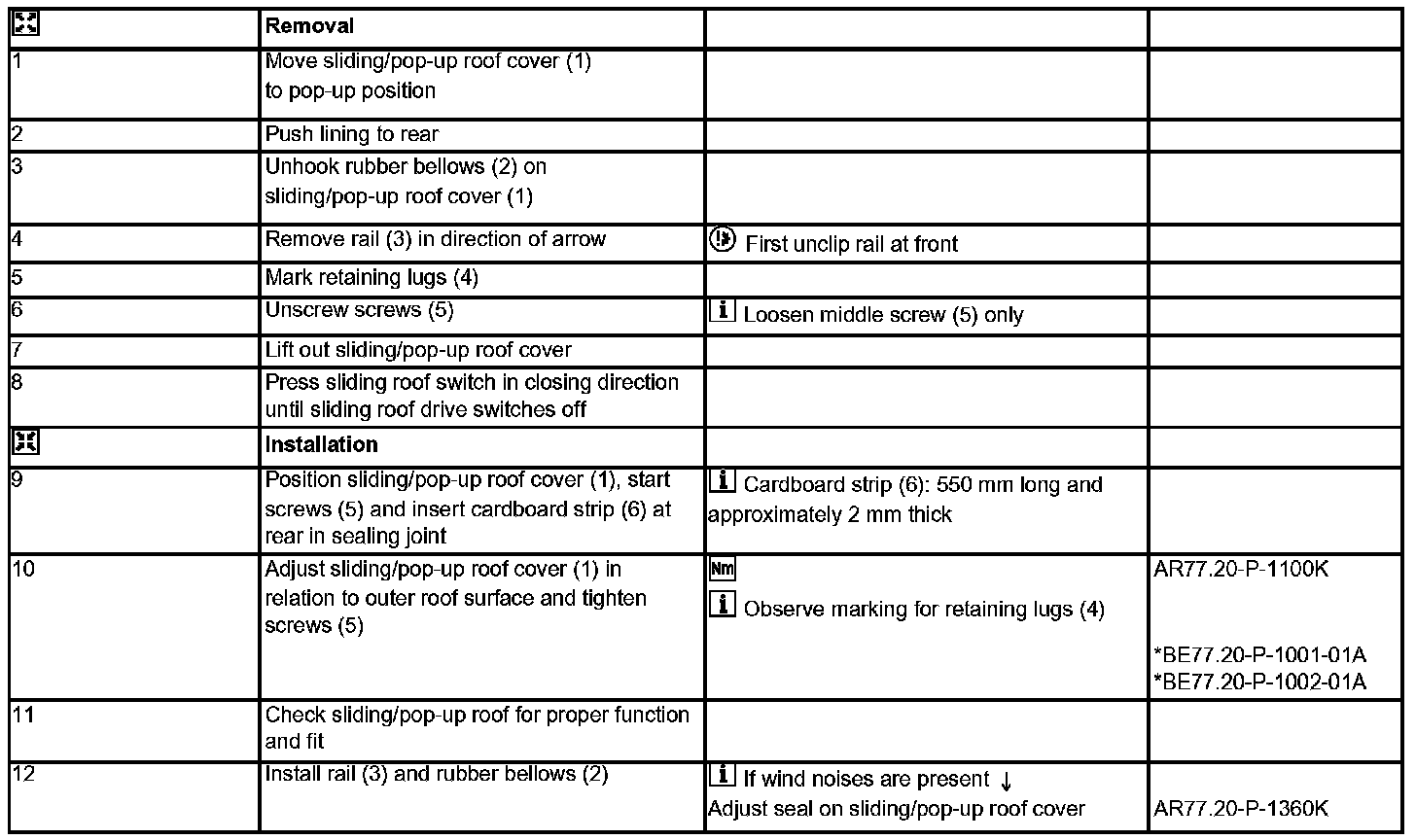

Steps 1 - 12:

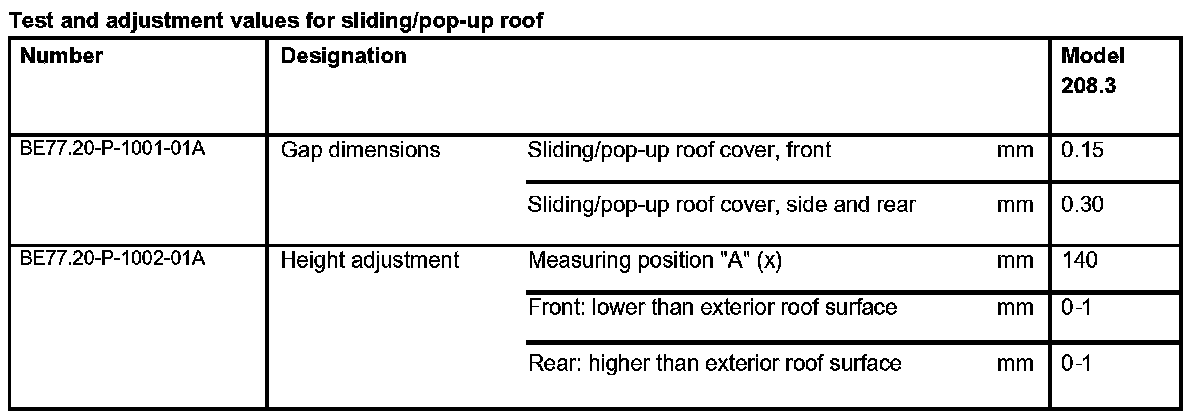

Test And Adjustment Values For Sliding/Pop-up Roof:

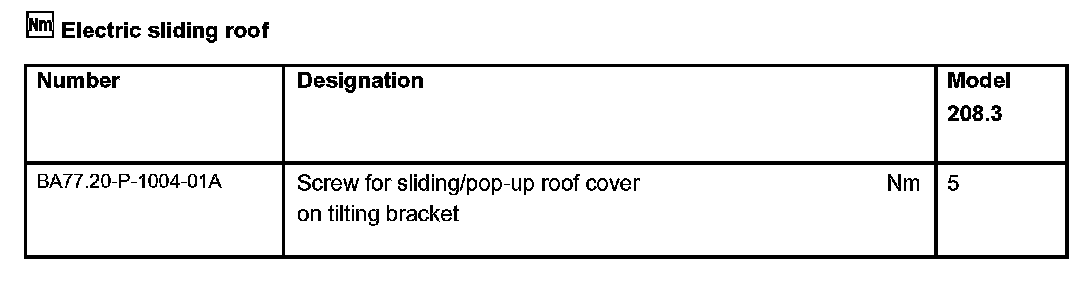

Electric Sliding Roof:
