Outside Mirrors PE88.79-U-2000MJ

Outside Mirrors PE88.79-U-2000MJ
- with CODE (501b) Left And Right Outside Mirrors With Memory
- with CODE (500b) folding left and right exterior mirrors
- with driver-side automatic dimming outside mirror

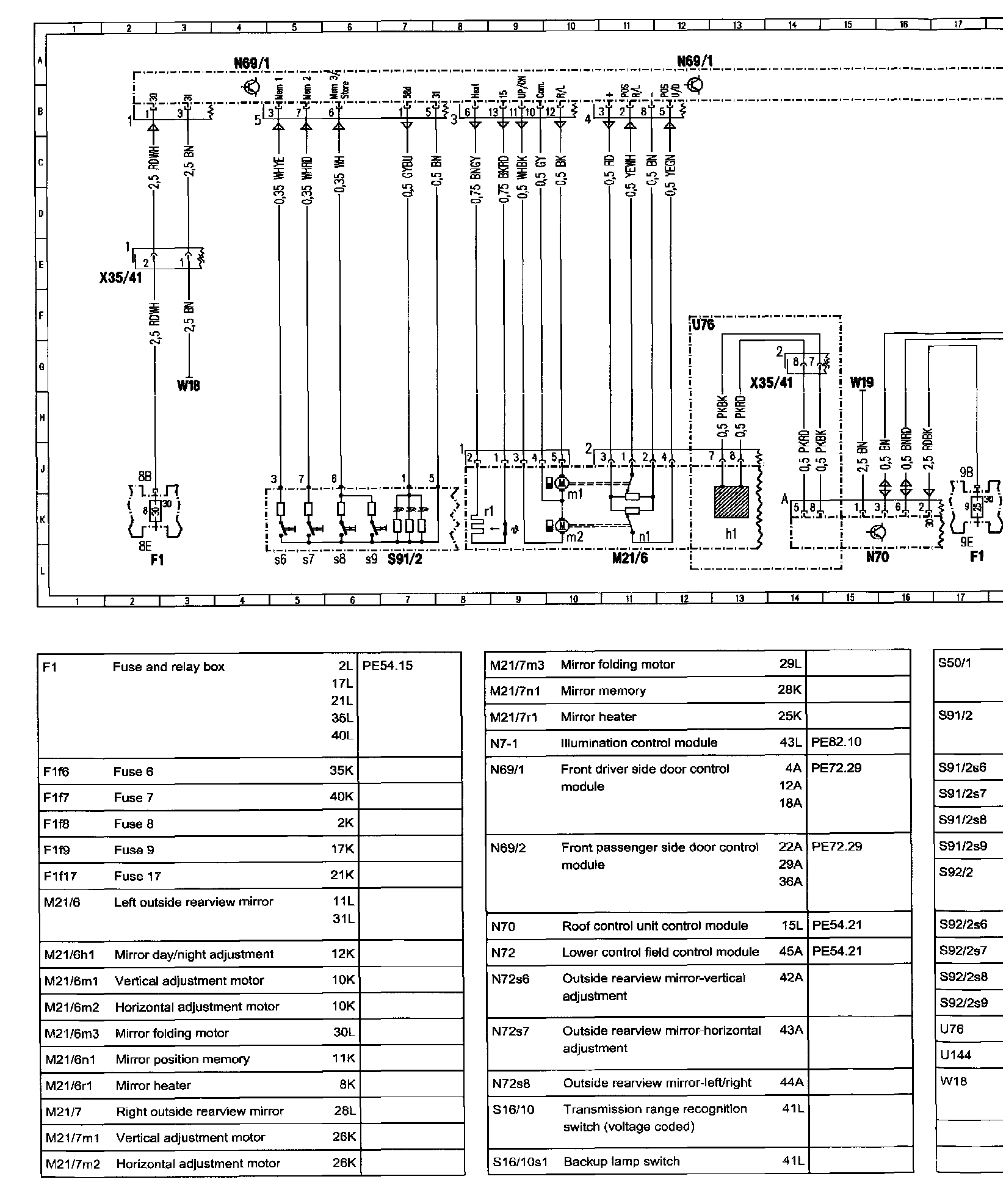

�I��IOutside Mirrors, PE88.79-U-2000MJ:

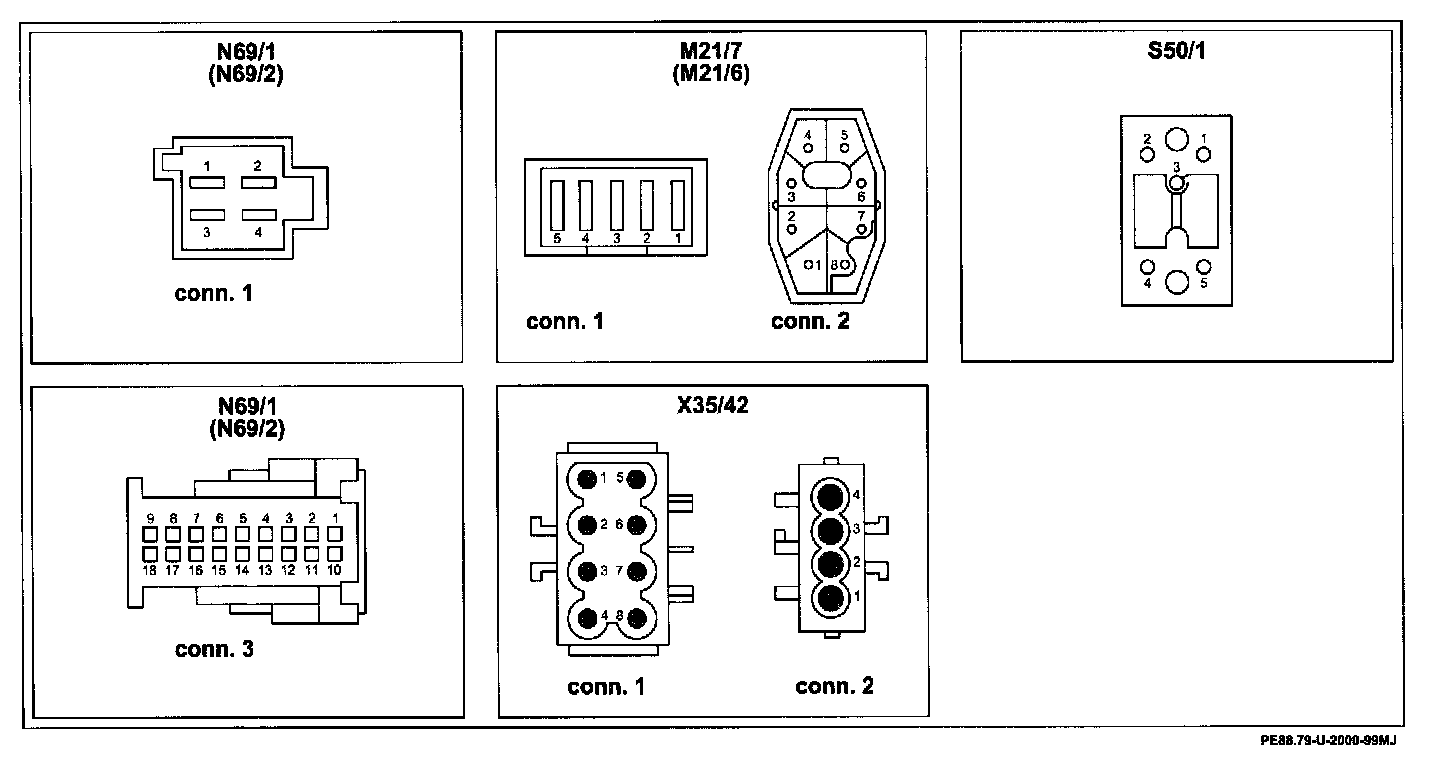

Connector Assignment:

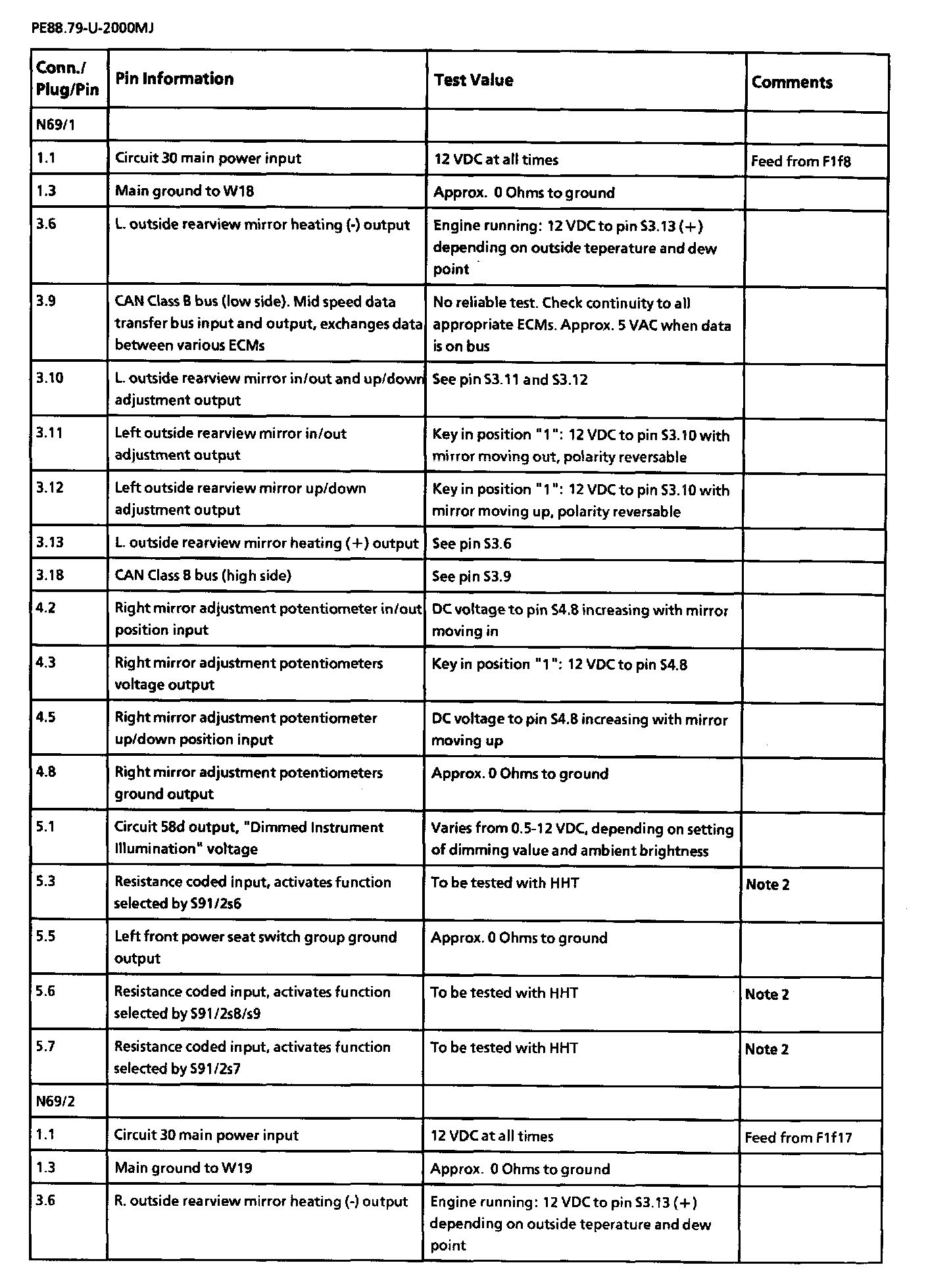

Pin Information, Part 1:

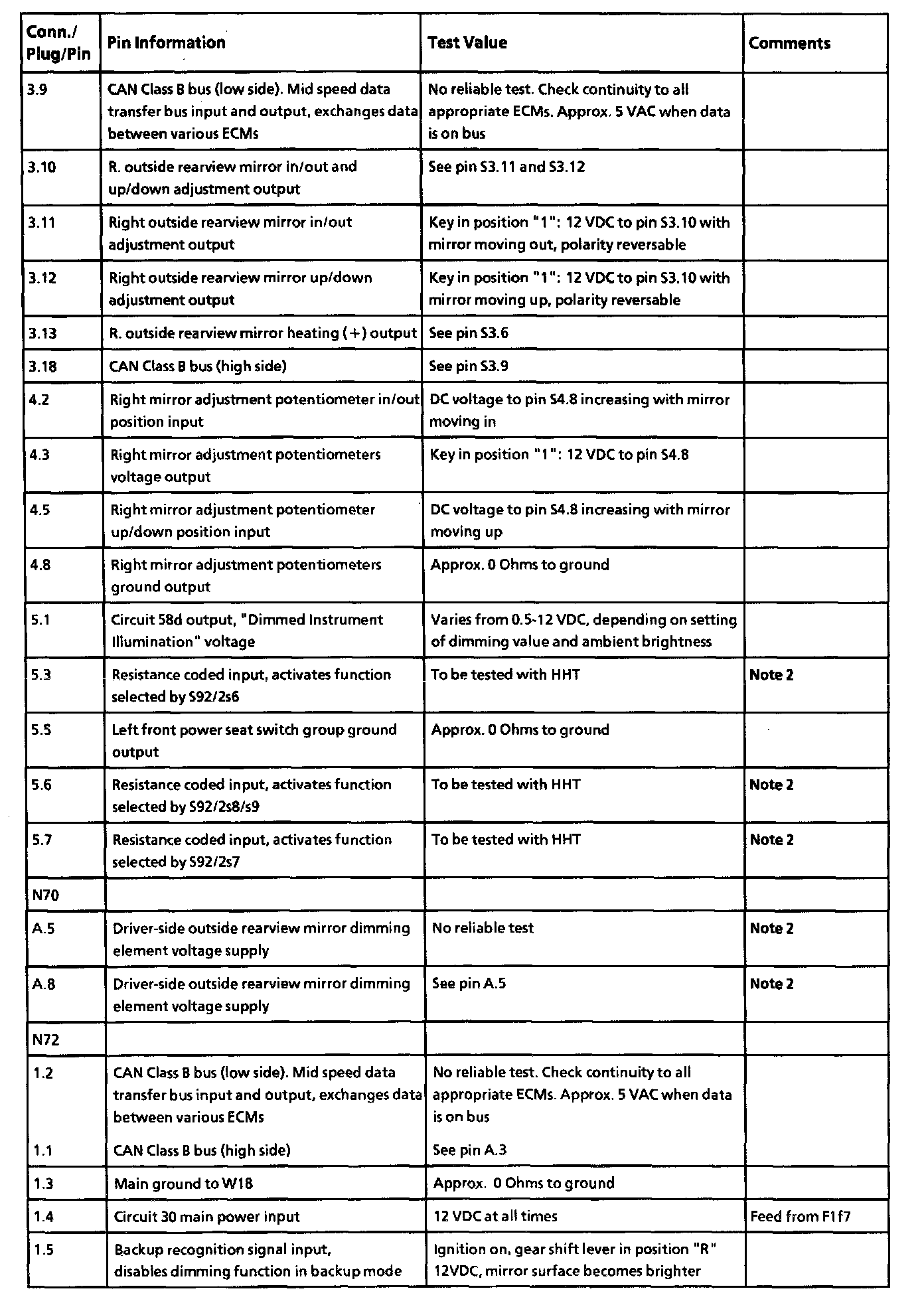

Pin Information, Part 2:

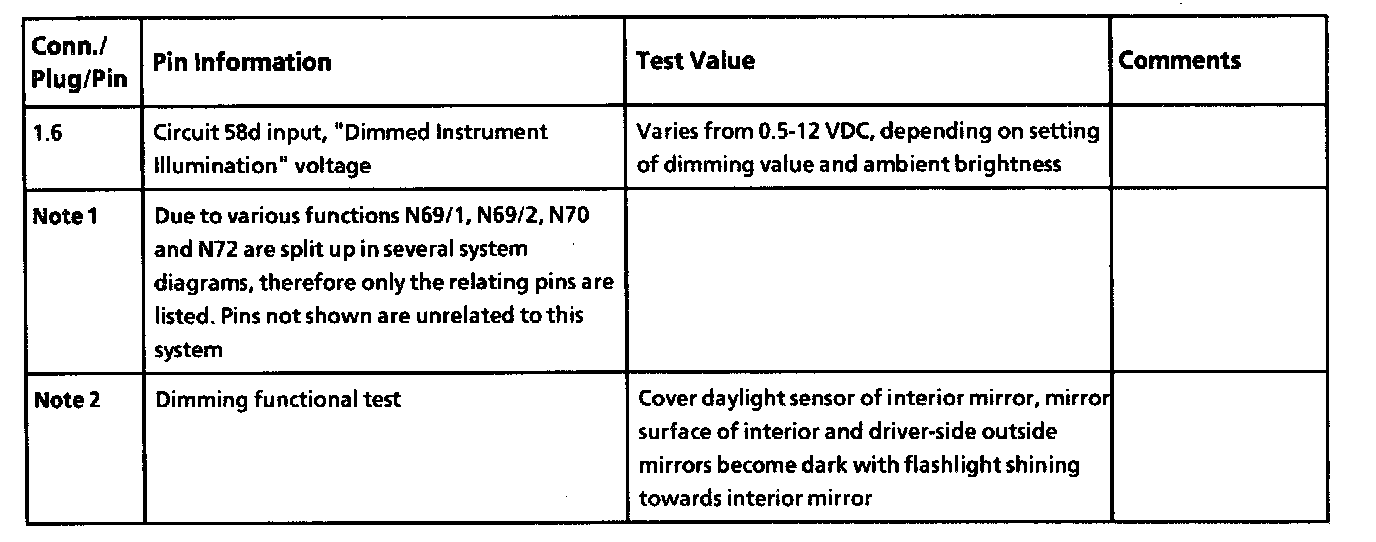

Pin Information, Part 3:
